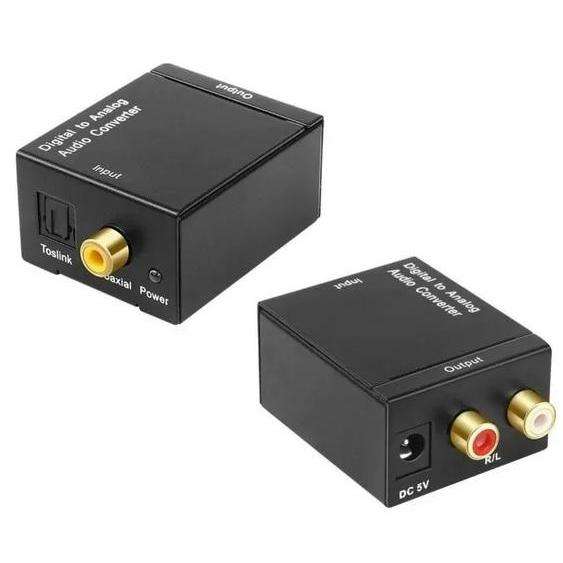

DIGITAL AUDIO TO ANALOG CONVERTER - AD011
SPECIFICATIONS
Signal Inputs/Output
Input Audio Coaxial or Toslink digital audio
Output Audio L/R audio
Connector
Input audio connector Toslink?1XRCA(Coaxial)
Output audio connector_2XRCA(R/L)
Sampling rate_32, 44.1, 48 and 96 KHz
Size(L-W-H):51X41X26MM
Operating Temperature:0 ? to +70?
Operating Humidity_10% to 85 % RH (no condensation)
Storage Temperature_-10? to +80?
Storage Humidity:5% to 90 % RH (no condensation)
Power Requirement
External Power Supply_ 5V DC@2A
Power Consumption_0.5 watts (max)
Converter Unit_FCC,CE,UL
Power Supply_ UL,CE,FCC
Accessories Adapter
AC Power Adapter_US standard, UK standard and so on
User Manual_English Version
5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off
Connect the audio source device to the Converter using appropriate Toslink or Coaxial cables
PACKAGE CONTENTS
Main unit (Digital to Analog Audio Converter)
5V/DC POWER SUPPLY
USERs Manual.
Weight (Net):78g
Warranty
Limited Warranty_1 Year Parts and Labor
Environmental
