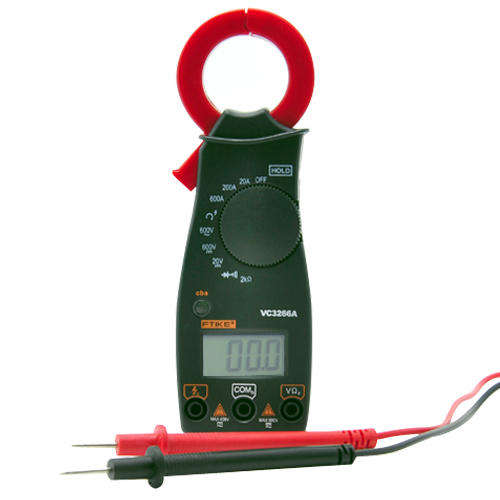

Digital Clamp Meter

Digital Clamp Meter

This clamp meter enables you to accurately measure electrical currents traveling through wires without having to cut the wire.
This clamp meter is completely safe to use because there is no need for you to cut the wire in order to get a reading, unlike other multi-meters, were you'll have to cut your circuit in order to take your measurements.
The major advantage of this clamp meter, is the accuracy of reading live electrical readings of live wires without interrupting the operation of whatever is running off the circuit.
This clamp meter is great for testing loads on circuits in both residential and commercial environments, and is perfect for electricians, technicians and engineers. And with its LCD display, and easy to use functions you can see your result instantly.

At a Glance...

• LCD Display
• Digital clamp meter
• Handheld & easy to use
• Great tool bag accessories
• No need to cut wires in order to get a reading

Manufacturers Specification

• Primary Function: Digital Clamp Meter
• Material: Hard Moulded ABS
• Power Source: 3 AAA Battery (Not Included)
• LCD Display: 1.8 Inch
• Backlight: Yes
• On Board Buttons: Power, Light, Hold
• Clamp jaws open to 2.2" (55mm) for 1000MCM conductors
• Store/recall last 5 readings
• DC Current Auto-Zero
• Data Hold
• Measurement: Resistance, Continuity, Diode
• Live Wire Verification
• Specs:
  - DC Voltage: Range 20V, Resolution 10mV, (Accuracy = ± 0.8% + 3d)
  - DC Voltage: Range 600V, Resolution 1V, (Accuracy = ± 1.0% + 3d)
  - AC Voltage: Range 600V, Resolution 100V, (Accuracy = ± 1.2% + 3d)
  - AC Current: Range 20A, Resolution 0.01A, (Accuracy = ± 2.0% + 10d)
  - AC Current: Range 200A, Resolution 0.1A, (Accuracy = ± 2.0% + 10d)
  - AC Current: Range 600A, Resolution 1A, (Accuracy = ± 2.0% + 10d)
  - Resistance: Range 2kΩ, Resolution 1Ω, (Accuracy = ± 1.0% + 3d)
  - Phase: Yes - Live Wire
  - Diode: Yes - Continuity
• Dimensions: L:144 x W:70 x D:35 (mm)
• Certification: CE, FCC, RoHS

Product Notes

• 3 phase true RMS clamp-on power analyzer
• Complete with test leads, carrying case
• Portable and versatile, easy to carry around and fits neatly in your tool bag
• Perfect for home DIY enthusiast as well as professional electricians and engineers
• When working with electricity, always use proper safety techniques.

Package Contents

• Digital Clamp Meter
• Test Cables

Frequently Asked Questions

• How do you measure current with a digital clamp meter?
  To measure electrical current with this digital clamp meter, just follow these simple steps: 1- Remove power from the circuit, if possible. Working on a hot circuit involves extra risk to the user and all equipment involved. 2- Isolate a wire carrying the current you wish to measure. 3- Open the clamp portion of the meter and then close it around the wire (and only that wire) you wish to measure current passing through. 4- Set the clamp meter to read the current type (AC or DC). 5- Return power to the circuit and read the digital display, writing the value down to avoid repeating the process. If the reading fluctuates, give it a minute to settle down. Finally, Remove power from the circuit. Then remove the clamp meter.
• Can this handheld Clamp Meter be connected to a computer?
  This clamp meter is completely portable, it comes with an LCD screen that displays your reading, no computer or any software installation is need, it will work straight out of the box.
