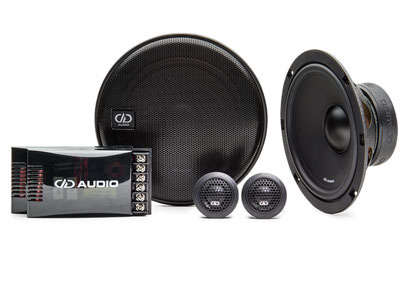

Digital Design DD-EC6.5 6.5 Split System
Digital Design DD-EC6.5 6.5" Split System
Driver Size - in Woofer 6.5 / Tweeter 20mm
Power Band - Watts 25-100
Impedance S4
Frequency Response - Hz 50-20k
Cutout Diameter - in Woofer 5.60 / Tweeter 1.59
Mounting Depth - in Woofer 2.45 / Tweeter 0.53
Shipping Weight - lbs 10
The E Class 2-Way Component System is perfect for the listener who wants to instantly take their system from factory to fantabulous. This set offers high-end features and an outstanding sound that rivals much more expensive component sets.
Woofer:
The 6.5-inch Woofer features an injection molded poly cone, rubber surround , and rigid steel frame. For reduced inductance, extended high-frequency roll off , and increased efficiency the voice coils features a double slit former and the motor utilizes a copper pole cap . The soft parts are driven with a high flux 11 Oz ferrite magnet motor.
Tweeter:
The 20-mm silk dome tweeter comes with flush-mount and surface-mount solutions.
Crossover:
The crossover networks are built with premium components including Mylar capacitors, segmented air-core inductors and poly fuses for tweeter protection. Two selectable tweeter levels are provided for fine high-frequency tuning.
