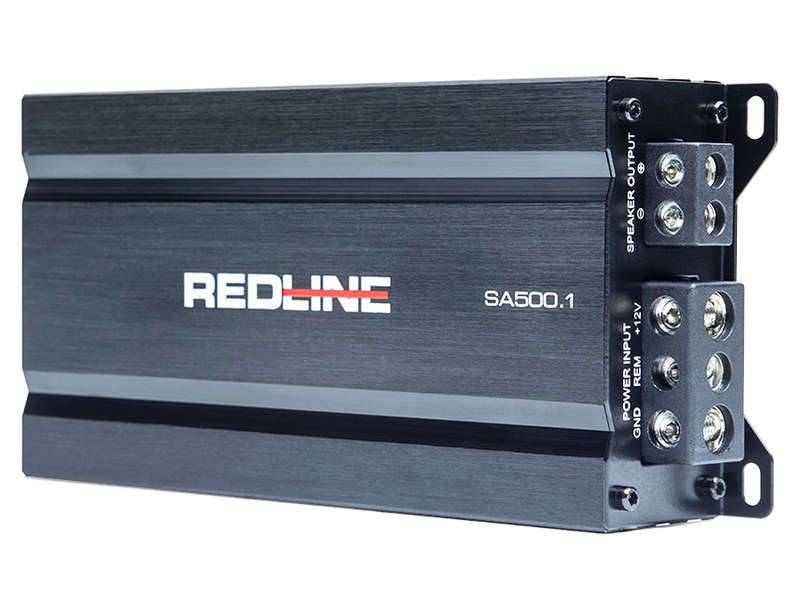

Digital Design DD-RL-SA500.1 RedLine 500w Monoblock Compact Amplifier

Digital Design DD-RL-SA500.1 RedLine 500w Monoblock Compact Amplifier

The REDLINE SA Series amplifiers utilize the latest Class D topology to offer powerful output from an ultra compact chassis. Small space, big power, sizable savings.

The RL-SA500.1 efficiently delivers the power to drive a DD AUDIO loaded enclosure or pair of RL-SW subwoofers. Bandpass crossovers and bass boost capabilities allow precise tuning of the sub stage while the included remote control knob adds the ability to make on the fly adjustments of the subwoofer volume.

With the ability to utilize either RCA Line Level or High Level inputs, the REDLINE SA Series amplifiers provide easy factory integration without the need for a line output converter or aftermarket head unit.

The REDLINE SA Series amplifiers are equipped with set screw power and speaker terminals offer secure and reliable connections usually reserved for higher end amplifiers.

Operating Voltage: 10 - 16
Test Voltage: 14.4
Output Channel(s): 1
Continuous Wattage @4ohm: 250
Continuous Wattage @2ohm: 390
Continuous Wattage @1ohm: 500
Dynamic Wattage: 1000
Max Current Draw (Amps): 50
RCA Input Voltage Sensitivity: 6 - 2.5
High-Level Input Voltage Sensitivity: 20 - 1.1
RCA Input S/N: > 85
Damping Factor: > 70
THD: < 0.1%
Bass Boost: 12dB @ 45Hz
Frequency Response (Hz): 10 - 250
Sub-Sonic Filter: 10 - 50
Low-Pass Filter: 30 - 250
ZVL Input: No
Pass Thru Output: No
Remote Control: Remote Included in Box
Power Wire Gauge: 4
Speaker Wire Gauge: 12
Dimensions (Inches): 7 x 3.8 x 1.69
