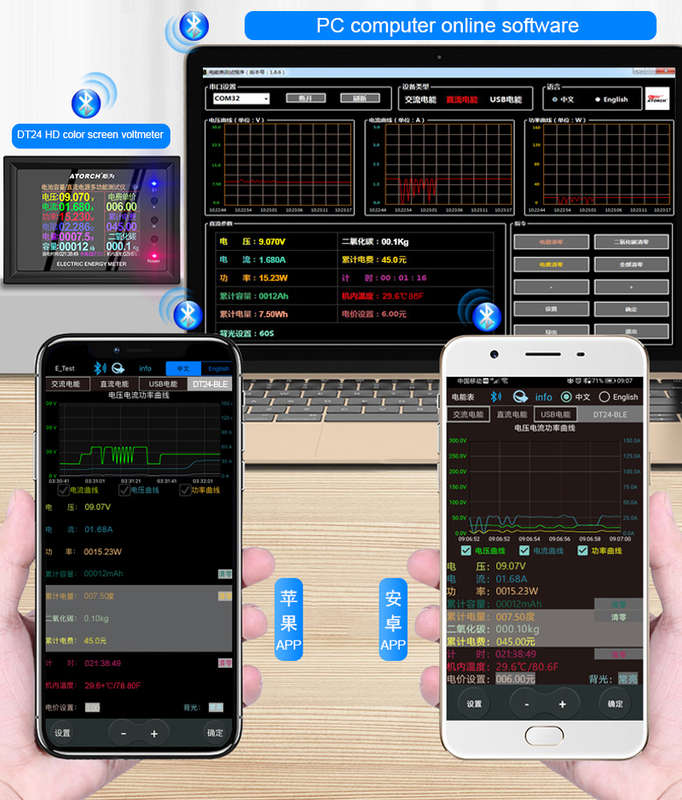

1. User manual, PC software installation instruction and PC software and Android APP download link :
2. IOS APP: search E_test on applyAPPstore to download
3. Android APP: search E-test at Google play to down load
Product use:

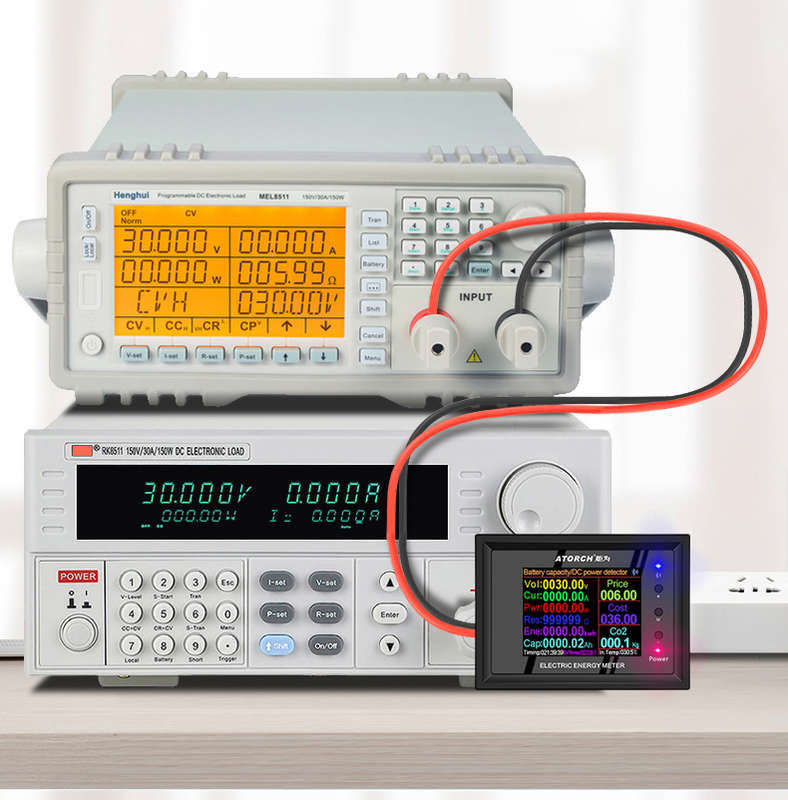

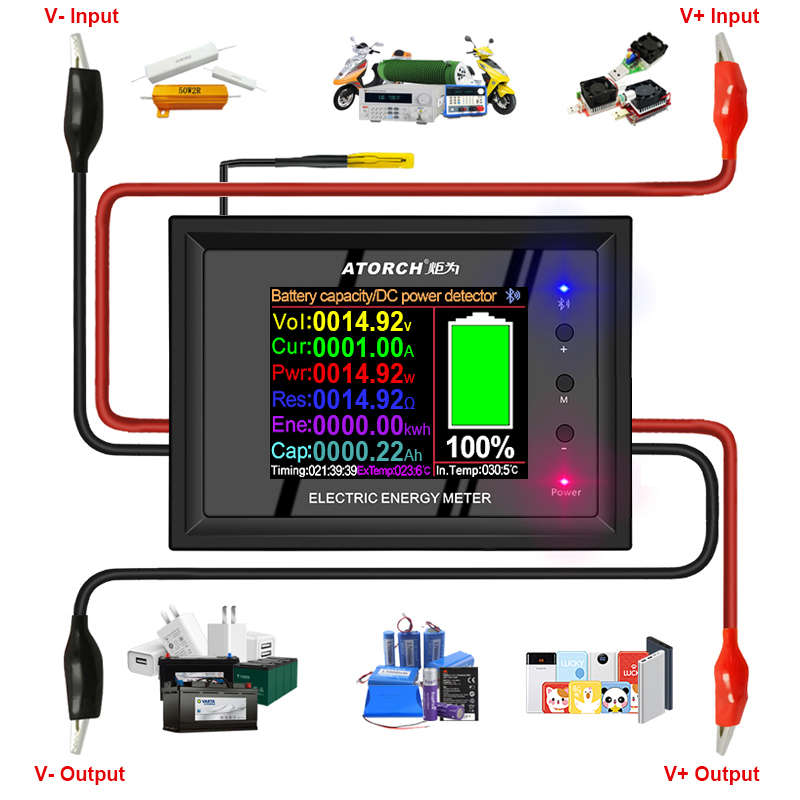

This product is used to test the capacity of various batteries, discharge and age various power adapters, and detect the voltage, current, and other parameters of various DC power supplies.
Product Size:
Installation size: length 76mm X width 53mm
Panel size: length 85.7mm X width 63mm
Electrical parameters:
Voltage measurement range under test voltage power supply mode: 7 ~ 380V
Voltage measurement range in independent voltage supply mode: 0 ~ 380V
Measuring power range: 0 ~ 11400 W (0 ~ 11.4 kW)
Measuring current range: 0 ~ 30A

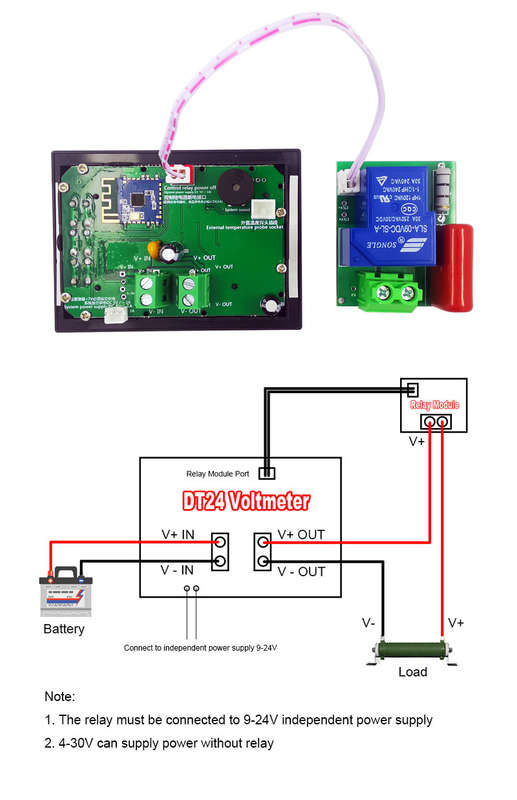

Reminder: If you enable the external power-off relay, please be sure to supply the system with independent power supply 5V /> 1A power supply to avoid the failure of the relay control current and system instability
Package includes:
(optional)

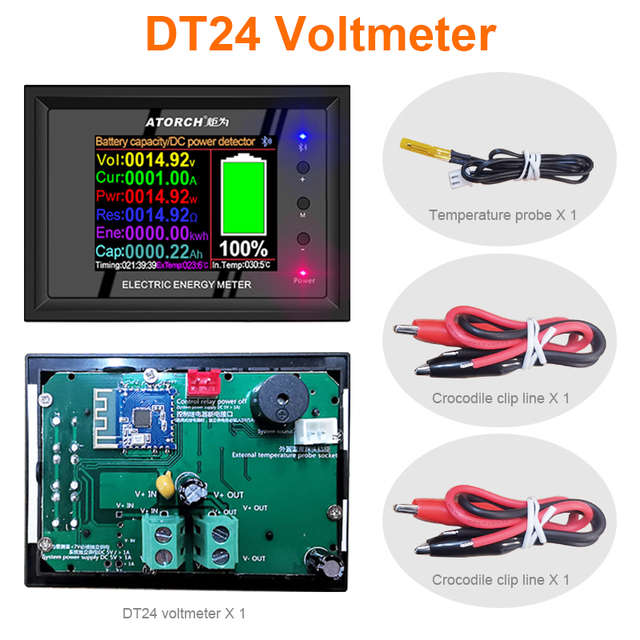

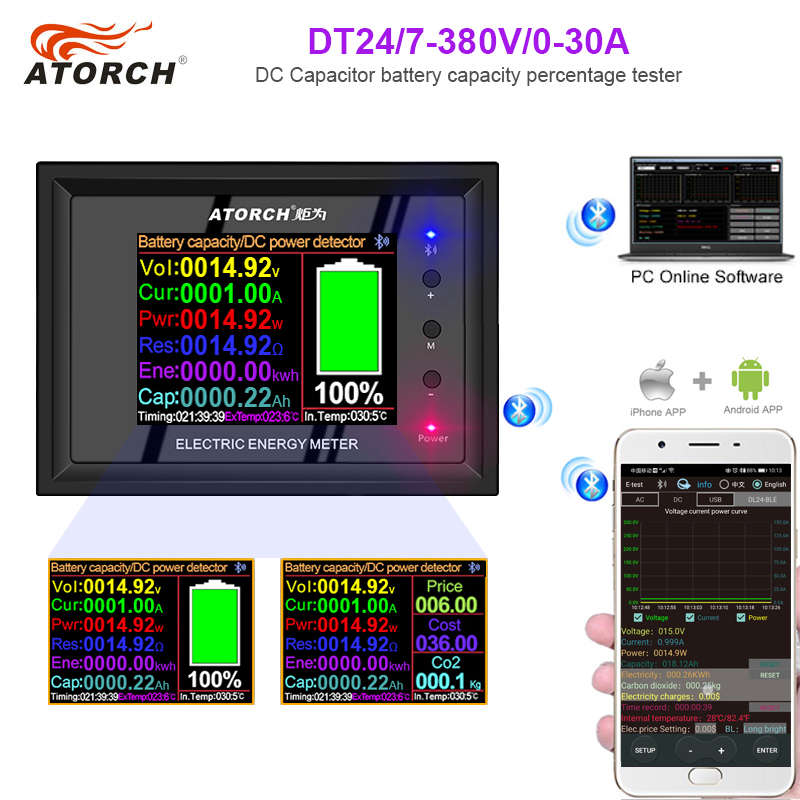

Voltmeter:
1 x 2.4 inch DC color screen voltmeter
1 x Crocodile clip red black male and female
1 x 2.54MM terminal temperature probe

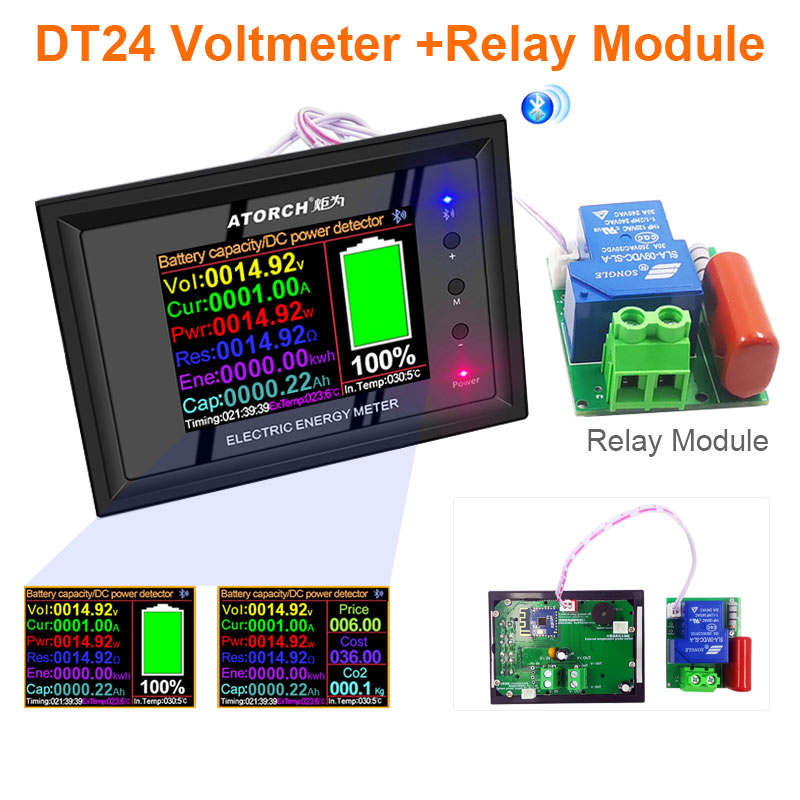

Relay Module:

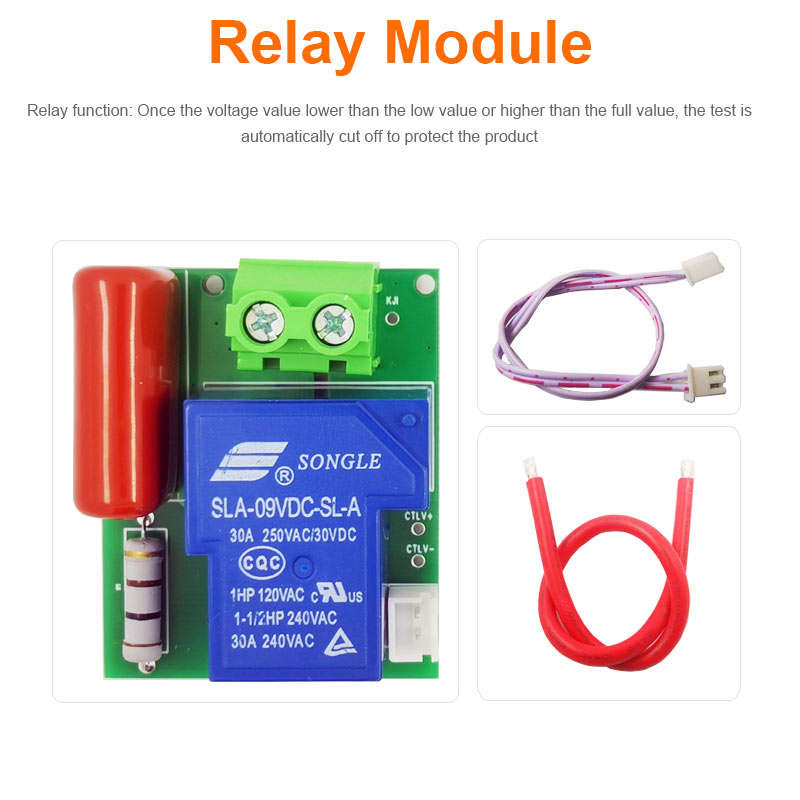

1 x Relay Module
1 x Connector cable
