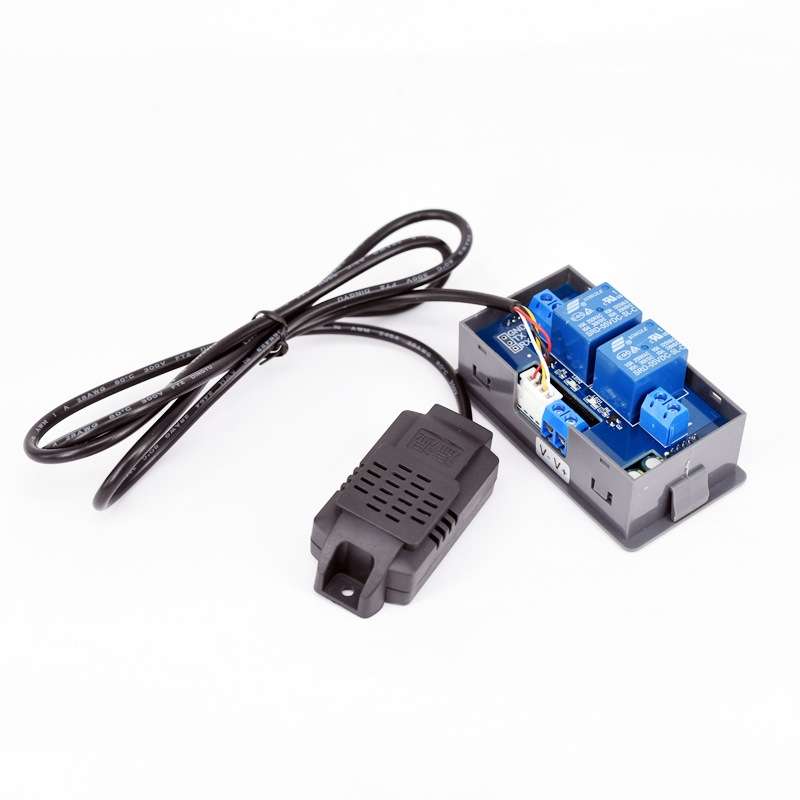

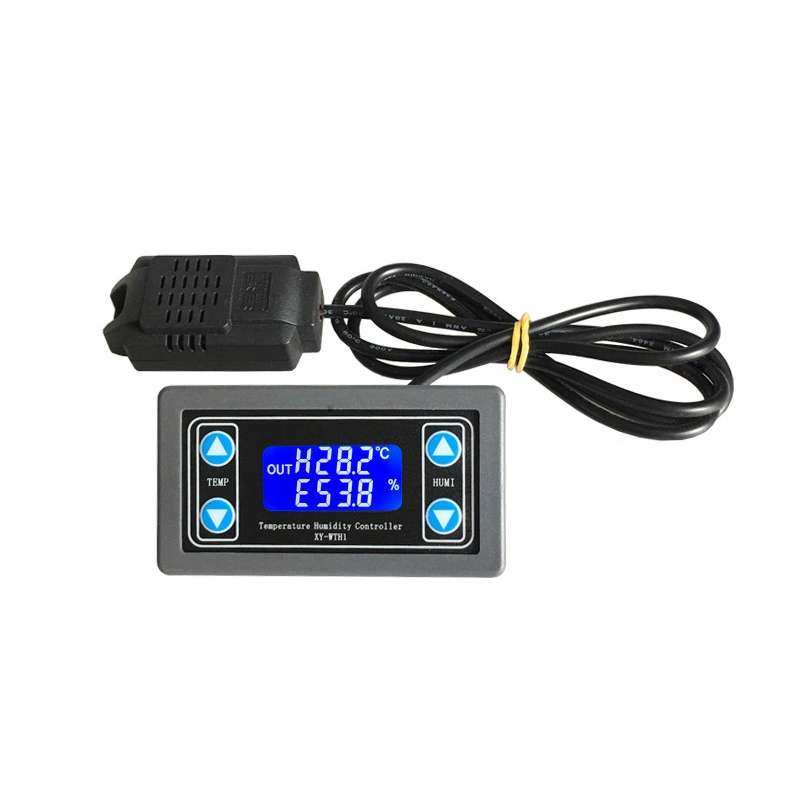

Digital Display High-Precision Double-Off Automatic Constant Temperature Humidity Control Panel

1. Temperature measurement range: -20-60 degrees Celsius
2. Humidity range: 0-100 percent RH

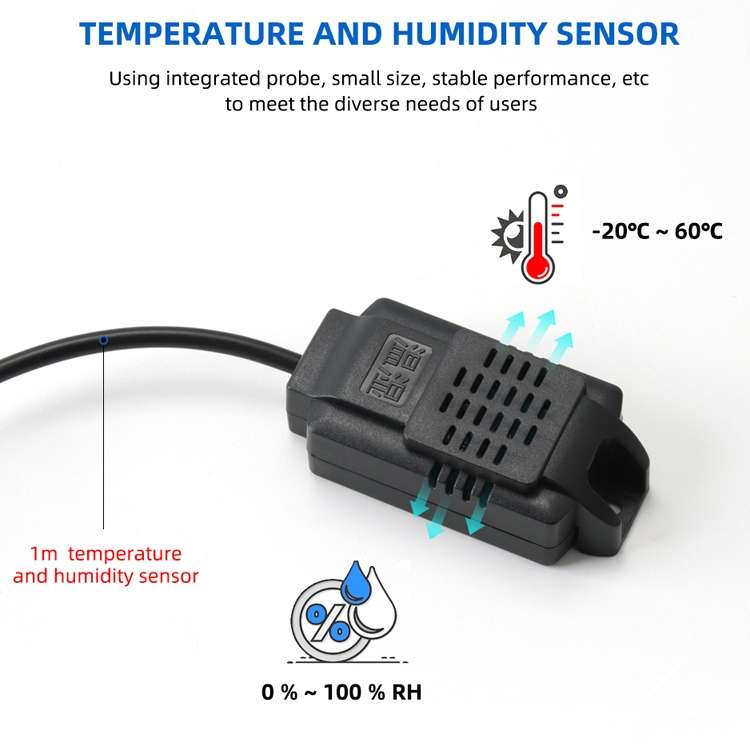

3. Detection probe: Integrated sensor
4. Output type: relay output
5. Output capacity: up to 10A
6. Power supply voltage: DC 6-30V
7. Suitable for opening size: about 7.5x3.95cm
8. Weight: about 95 grams
9. Appearance size: about 7.1x3.9cm

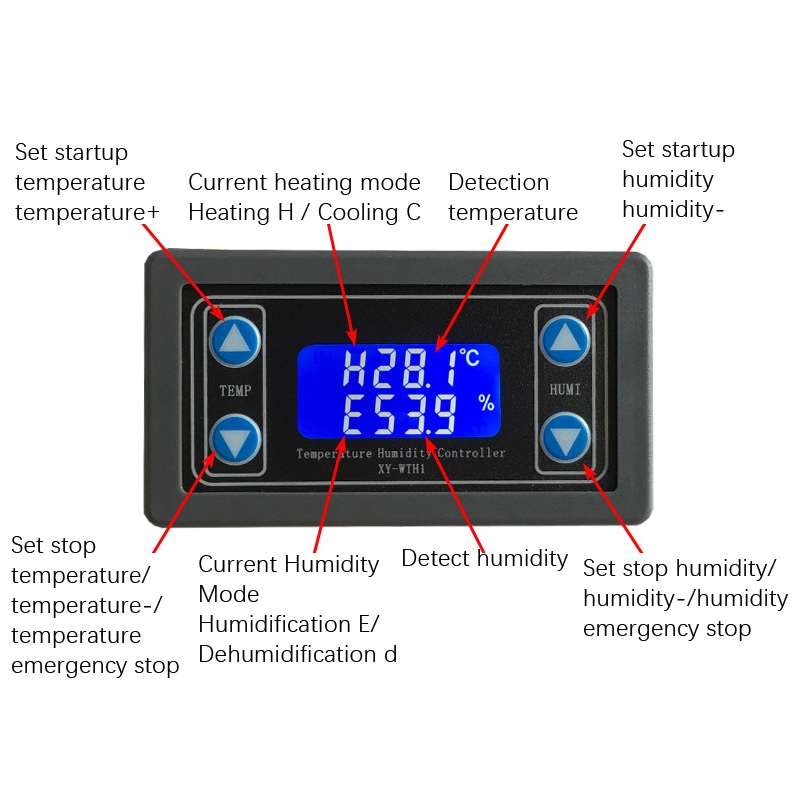

Function:
1. Remote reading/setting of parameters: parameters such as start temperature/humidity, stop temperature/humidity, temperature/humidity, correction can be set through UART
2. Real-time temperature/humidity reporting: If the temperature/humidity reporting function is enabled, the temperature/humidity and relay status will be detected at 1s intervals, and transmitted to the terminal through UART to facilitate data collection

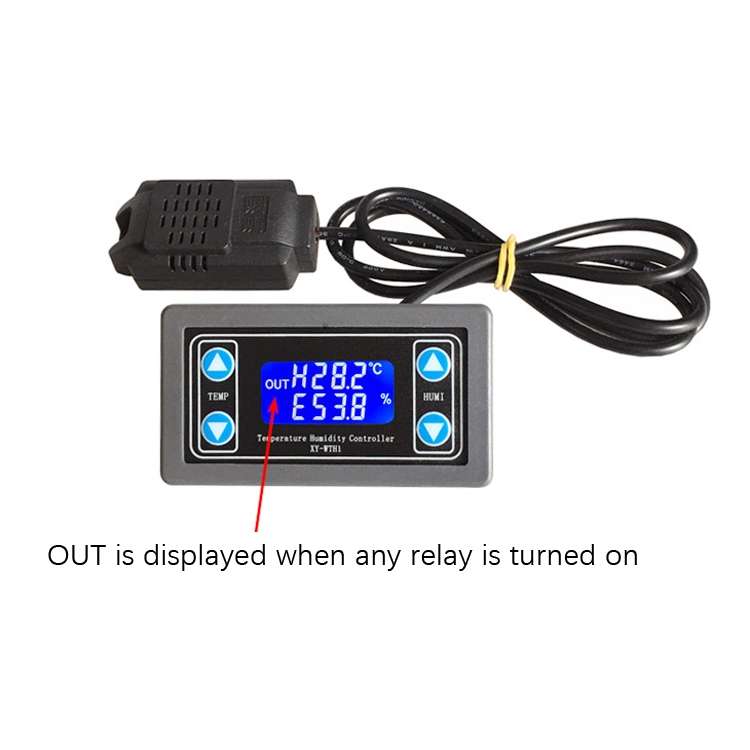

3. Relay enable (default on): If the relay enable is turned off, the relay remains disconnected
TBD06021058
