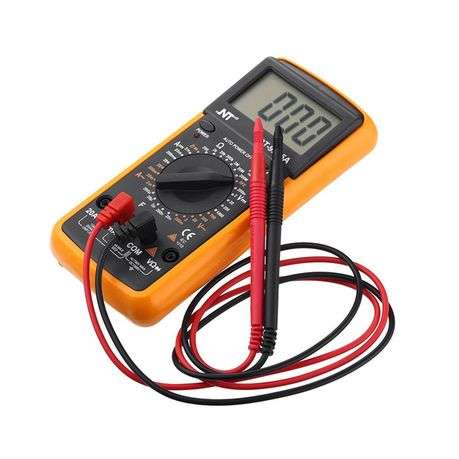

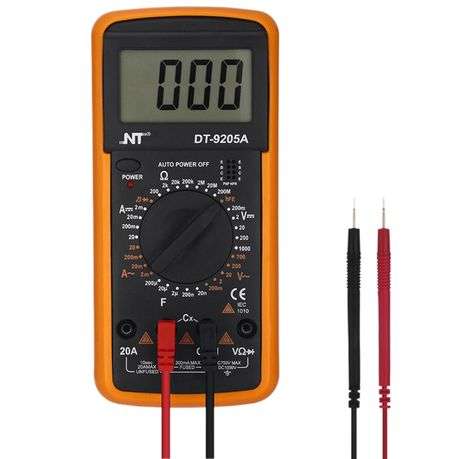

Digital DT-9205A Multi-Meter AC/DC Voltage Tester

Digital DT-9205A Multi-Meter AC/DC Voltage Tester

This Multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems.It's easy and safe to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing, which is both for automotive and household uses. Use this multimeter for: household outlets, fuses, wiring, general-purpose batteries, vehicle battery and charging system, automotive circuits and more.

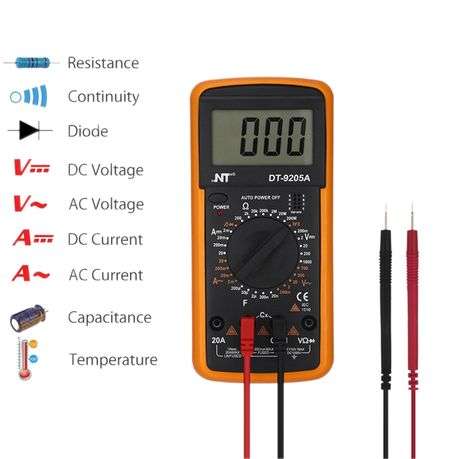

Features:
- Diode assembly test / Transistor P-N junction test/Transistor hFE test.
- Automatic power off, electric circuit protection.
- Max display: 1999, Automatic polarity display.
- Continuity test with buzzer sound in circuit.
- Low battery voltage indication.
- Data hold function.

Specification:
- Weight: 0.34kg
- Display: LCD, 3 1/2 digits
- Power: 9V Battery Included
- Max AC Voltage Range: 700V
- Max DC Voltage Range: 1000V
- Dimension: 1993cm (Approx)
- DC Current: 2mA-20A ± (1.2% +2)
- AC Current: 2mA-20A ± (1.2% +3)
- Overload Display: "1" is displayed
- Sampling Speed: 2 times per second
- Capacitance: 2nF-200uF ± (4.0% + 5)
- Resistance: 200?-200M? ± (0.8% + 2)

Package include:
- 1 x Digital Multimeter
- 2 x Test Probe
- 1 x User Manual

Note:
The polarity of the red test lead is "+".
Before measuring current, check the meter's fuses and turn off power to the circuit before connecting the meter to the circuit.
To avoid harms to you or damage to the meter from electric shock, please do not attempt to measure voltage higher than DC/AC 1000v.
Do not rely on non contact voltage detector to determine whether there is a voltage. The detection operation may be affected by socket design, insulation thickness and type of different factors.
