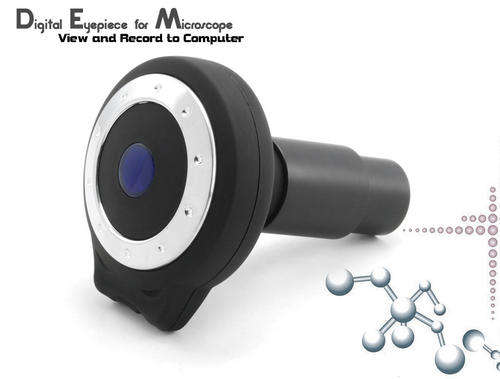

Digital Eyepiece for Microscope - View and Record to Computer

Digital Eyepiece for Microscope - View and Record to Computer

If you're looking for a way to capture and save images and record video from your microscope then you've found the right product.

Scientist new best friend
This easy to use digital eyepiece for microscopes connects to the USB port on your computer and gives you a real-time image from your microscope-- directly on your computer screen! This is the best way to view high resolution images of cells, molecules, bacteria, tissue and more, and without having to bend over your microscope and squint with one eye to do so. If you own a microscope then this digital eyepiece will make using your microscope easy and fun again for the whole family.
High Quality Images
The image quality of this digital eyepiece is simply amazing too. This is because the K87 uses a 1/2 inch 1.3 megapixel image sensor for delivering high image quality and remarkable detail like you have never seen before. Included with this digital eyepiece is a DVR software kit for recording those beautiful images in 1280x1024 videos and photos. This makes sharing your high resolution images with your friends, family, or the internet, easier and more enjoyable than ever.
Easy and Convenient to Use
You don’t have to be a professional to use the K87 either. With the easy setup and user friendly software, even children can get in on the action. Simply attach the eyepiece to any microscope, attach the USB cable to your computer, open the included DVR software, and position your microscope like you would normally. That’s it! You can now, view, record and capture all your favorite microscope images from the comfort of your own home. The best part of it all is that unlike a traditional eyepiece, all your friends and family can actually view the same images from the microscope at the same time!

Manufacturer Specifications

• Product Description: Digital Eyepiece for Microscope - for viewing and recording via computer
• Imaging Sensor: 1/2 Inch 1.3 Megapixel CMOS
• Pixel Size: 5.2μm * 5.2μm
• Spectrum response: 400nm---1000nm
• Sensitivity: 1.8 V/lux-sec@550nm
• Connection to Microscope: Ocular tube
• Size of Ocular Tube: 31.75mm - 24.5mm
• Still Image
  - Format: JPEG
  - Resolution: 1280x1024
• Video
  - Format: WMV
  - Resolution: Up to 1280x1024 (software controlled)
  - FPS: 10 to 16 frames per second (software controlled)
• Sensitivity:1.8 V/lux-sec@550nm
• Spectrum response 400nm - 1000nm
• White Balance: Auto
• PC Interface: USB 2.0
• Shutter: ERS(electronic rolling shutter)
• Power Source: USB port of computer
• USB Cable Length: 1.5m
• Dimensions: L: 65 x Diameter: 65 (mm)
• Compatible Systems: Windows 2000, XP, Vista, 7 (32 bit version only)

Product Notes

• While trial capture software is provided, it only includes basic functions and may not work on all operating systems. More advanced software is available on the internet should you need better functions like higher FPS settings and better image control.

Package Contents

• USB digital eyepiece, USB cable 1.5m, 1 adapter ring, CD with manual, drivers and software
