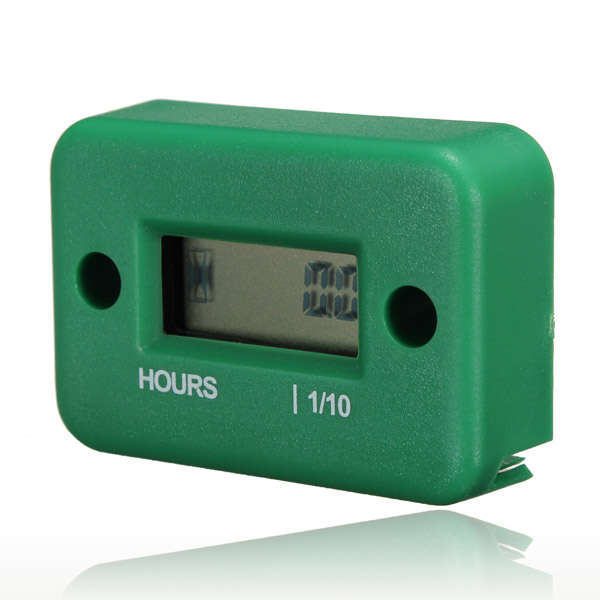

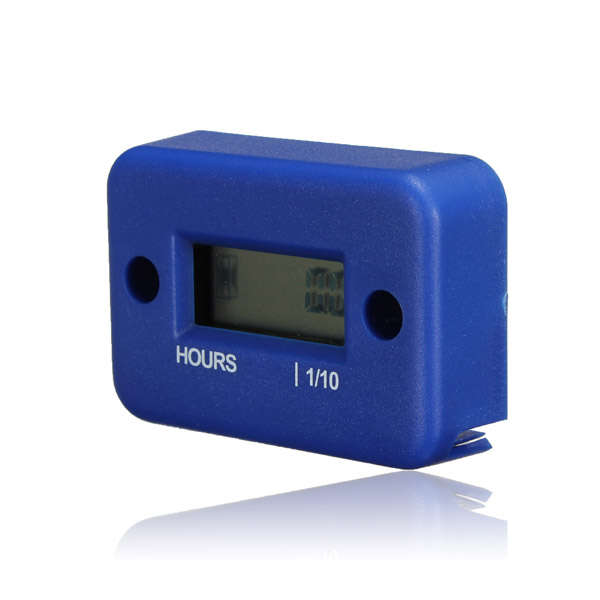

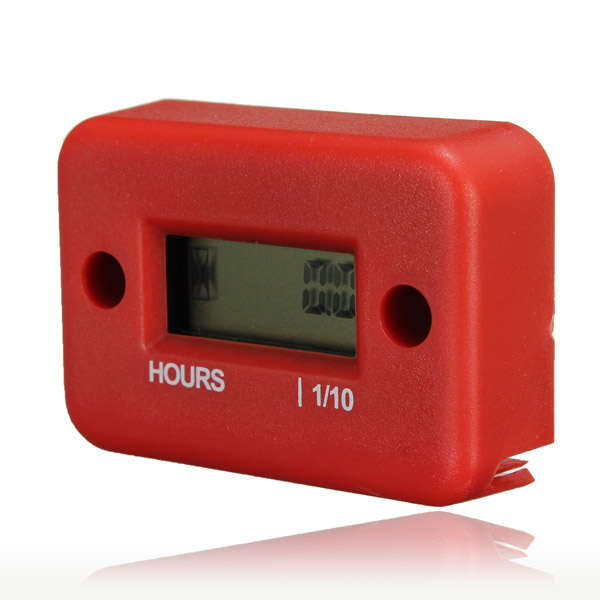

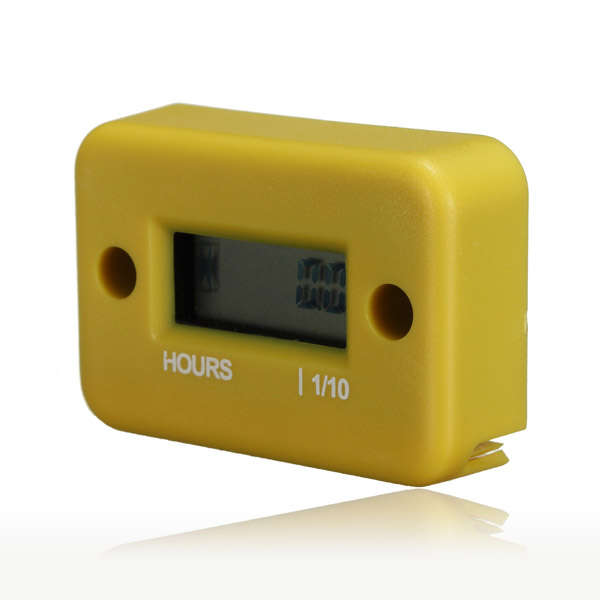

Digital Hour Meter Gauge for Motorcycle ATV Snowmobile Marine Boat Yama Ski DirtFeatures: 1. Waterproof design
2. Built-in battery power supply, safe and reliable
3. Sensor design, simply tied onto the spark plug cable can operate
4. Track the service life of your vehicle-oil changes,valve,adjustments,spark plugs,etc.
5. Easy installation-peel & stick, no wiring necessary,or attach with enclosed hardware
6. Works on any gas engine
7. Records and displays to 9,999.9 hours.
8. Hour glass symbol appears and flashes on / off to indicate counting time.
9. Automatic roll over
10. 1.0inch LCD screen display
11. Waterproof material
Specification: Resolution: 0.1 hour
Type: Electronic Gadgets
Temperature: -30'¿¿¿ ~ 85¿¿¿
Color: Blue/Yellow/Blue/Red/Orange
Dimensions: 2.13 in x 1.46 in x 0.59 in (5.4 cm x 3.7 cm x 1.5 cm)
Installation:
1.Wrap the included pick-up wire around the spark plug wire five times. Start wrapping the
pick-up wire about 4cm from the end of spark plug boot. Use the included zip tie to secure
the pick-up wire wrapping as shown in the photo right.
2.Before continuing the installation, insert the pick-up wire Into the rear of the meter. Start the
motor to make sure the meter is picking up the ignition signal. If it is, this will activate the timer
on the meter and the icon on the left of the LCD will flash. You'll have to wait at least 6 minutes
to increase the timer display?1/10th of an hour). If it is not picking up the ignition signal, slide the
pick-up wrap closer to the spark plug boot.
3.1f the meter is successfully picking up the spark signal, run and zip tie the pick-up along one of
the throttle cables. Make sure the pick-up wire can not make contact with the engine. Also, make
sure you leave enough (about 8 cm) so removing the spark plug wire is possible. Keep in mind the
general location of final mounting location on the frame spare.
4.Securing Method:
a. Drilling into your frame with 2.5mm socket, then secure it to the frame coming with two pick-up screws.
b. using padded double-sided tape on the backside of the meter and secured it to the frame spar with zip ties.
That's all there is to the installation. Now you're set to accurately track your maintenance. Don’t forget to record
the metered time when performing maintenance.
Compatibility:
All motorcycle models (anything with a spark plug really should work)
Tools Required: 2.Smm socket to remove shroud, wire cutters.

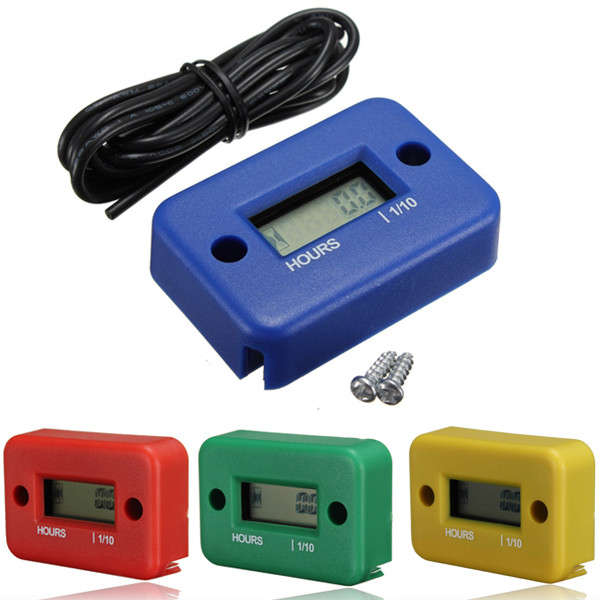

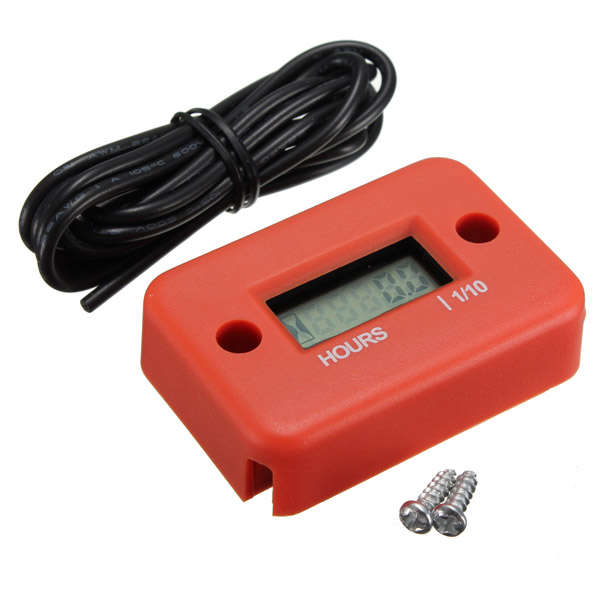

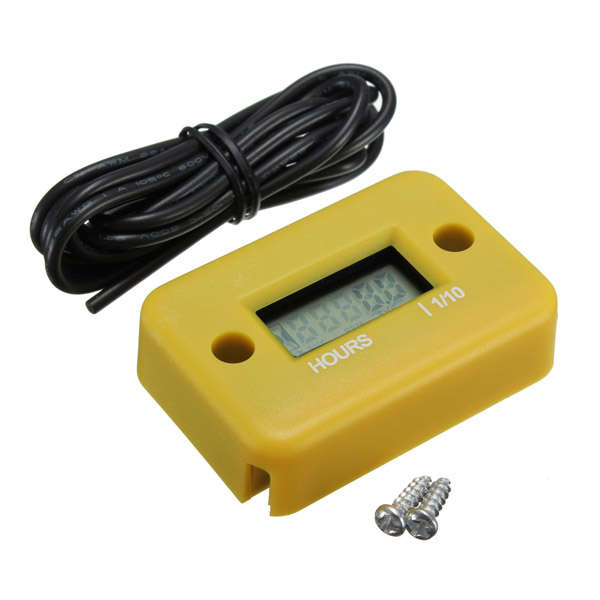

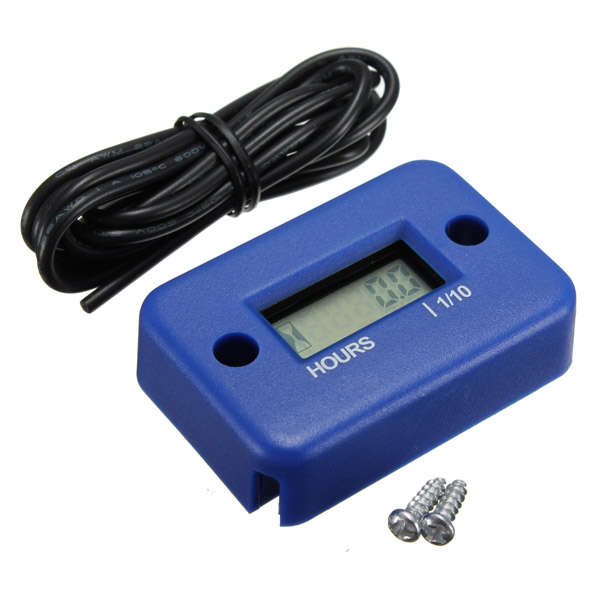

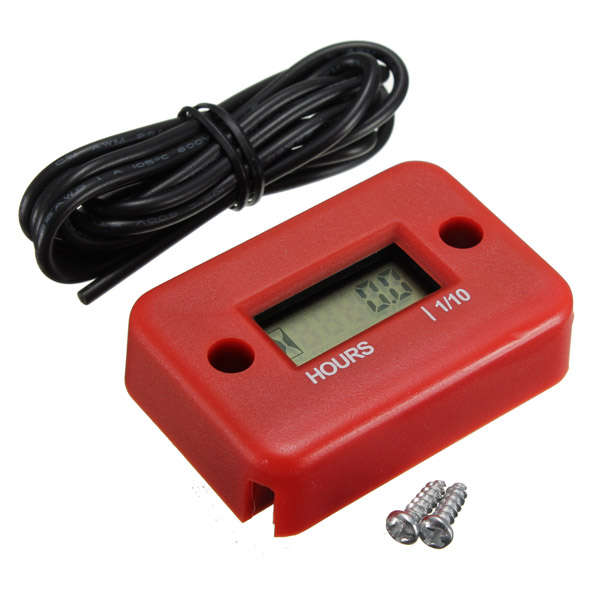

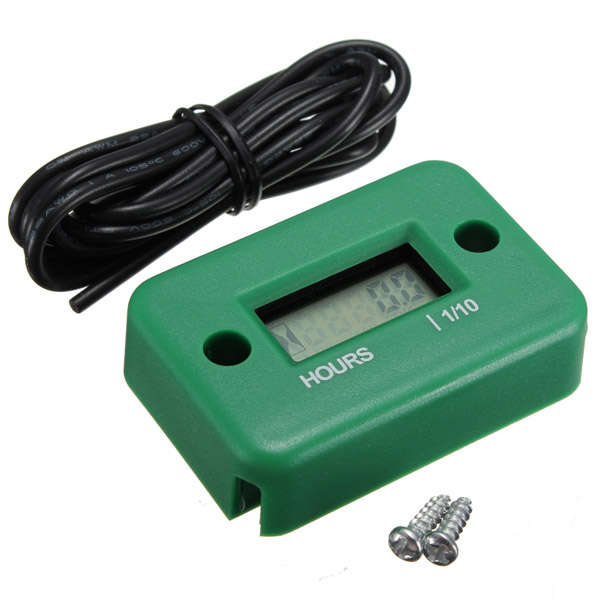

Packing Included: 1 X Hour meter
1 X Cable (110cm)
2 X Screws
