Description: This guage is a economical digital pressure guage. It has a high-precision sensor and display the pressure accurately in real time, such as zero clearing, backlight, on/off button, units, low voltage alarm.And it is convenient to install and easy to operate. It can be used to measure gas, liqulid, oil and non-corrosive mediums of stainless steel. It applies to these fields: pressure container, automation equipment, matching with laboratory equipment.
Features: Name: Digital Pressure Gauge Pressure Range:
0-250BAR/25Mpa/3600PSI Accuracy: 0.4%FS Long-term Stability: 0.4%FS/year Overload capacity: <10MPa 200%; a10MPa 150% Supply: 3V(two triple A battery) Battery life:12-24 months Samping frequency: 2T/S Display: 4 digit LCD Backlight color: White Measurement medium:
Gas/water/oil Working Temperature: -20a-70a Date retention: EEPROM Shell: 304SS Acc: 1% Protection Class:
IP65 Connector:

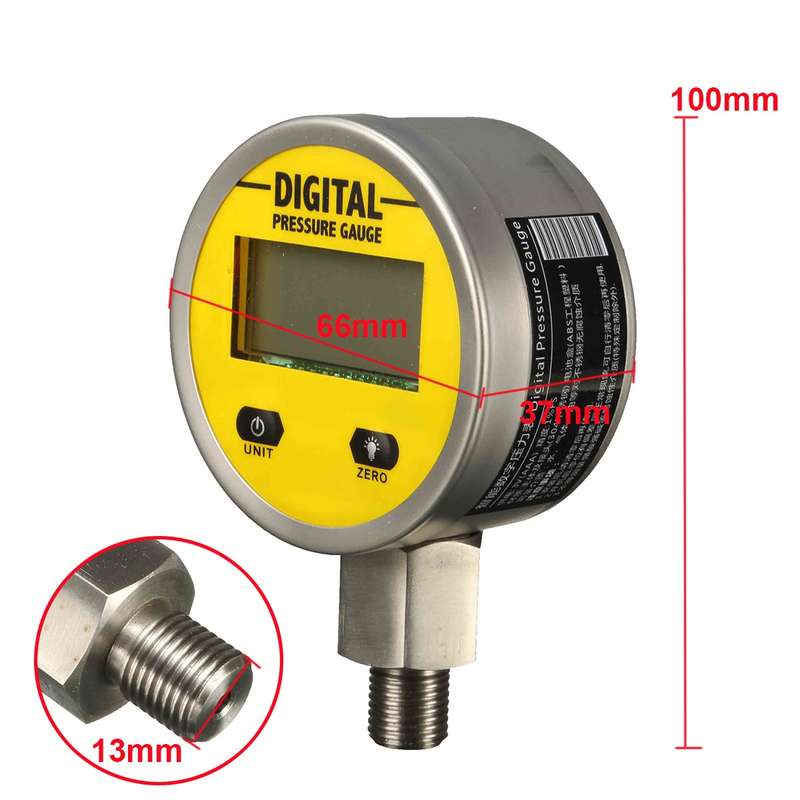

1/4 Functions: Backlight,on/off,units change,zero clearing Size:100mm x 66mm x 37mm
Package included: 1 x Digital Pressure Gauge 1 x English User Manual

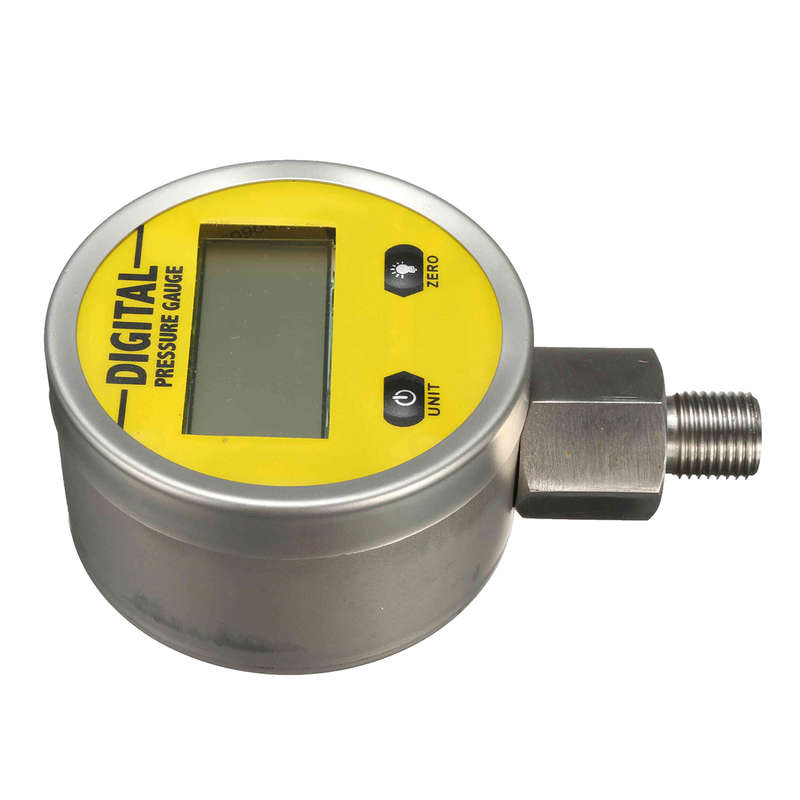

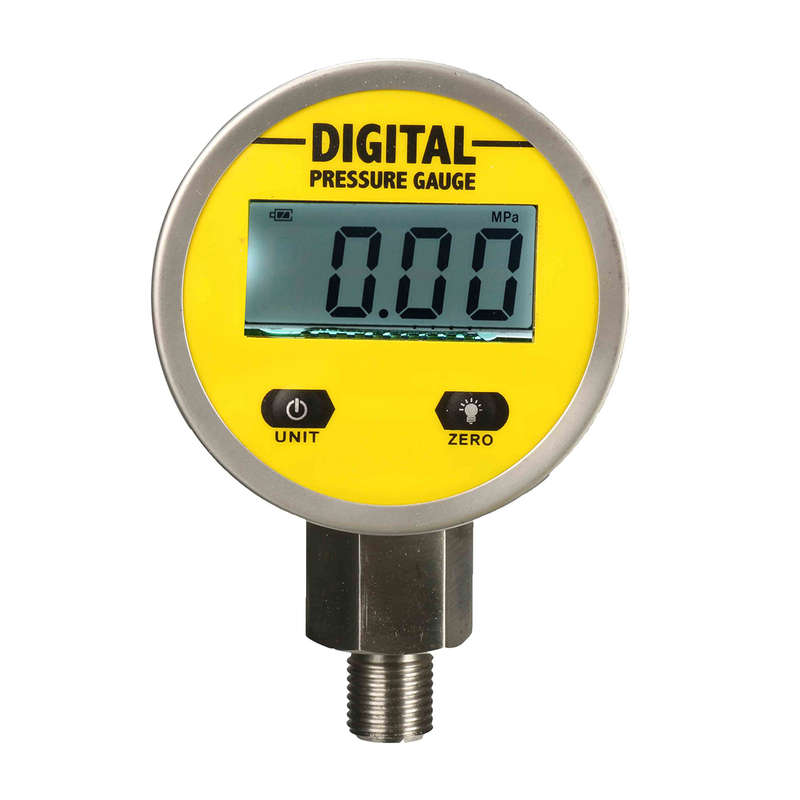

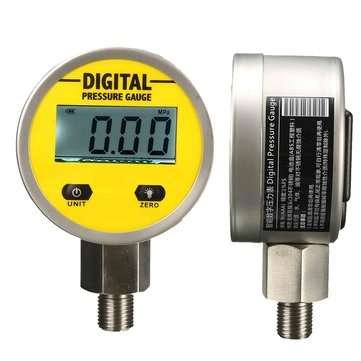

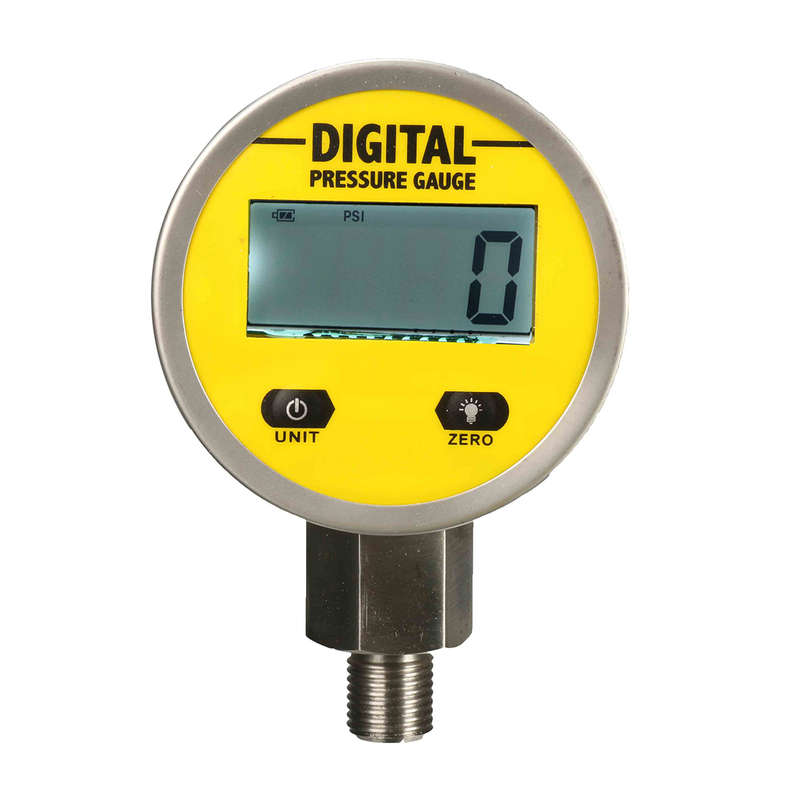

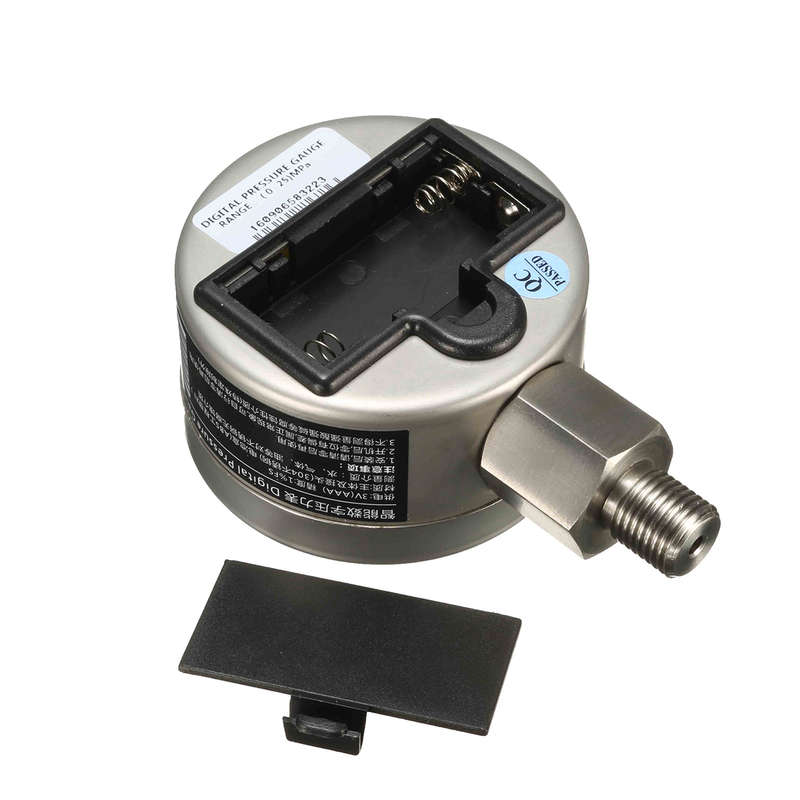

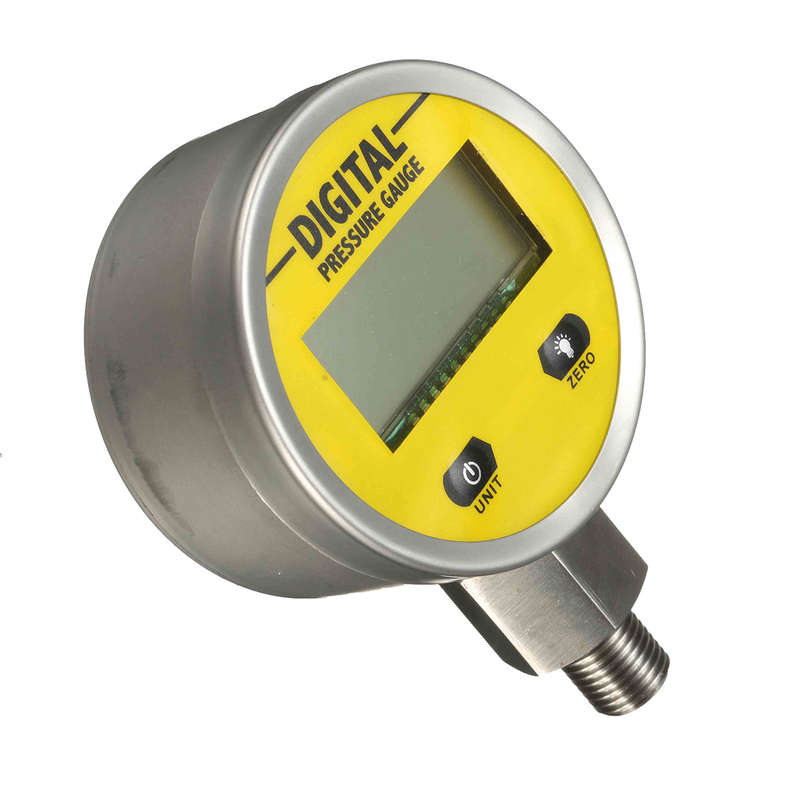

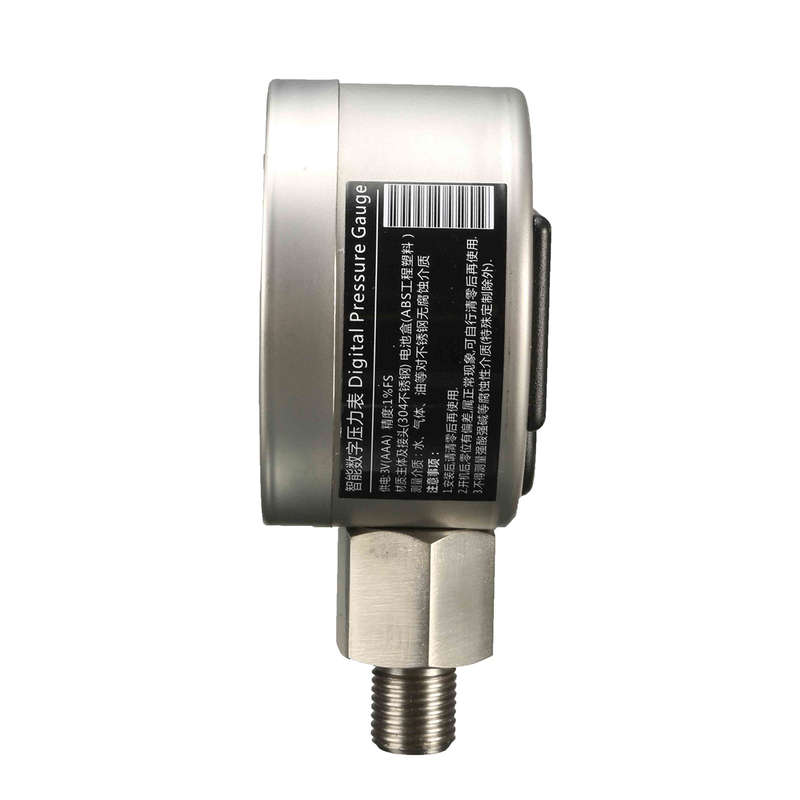

Detail Pictures:
