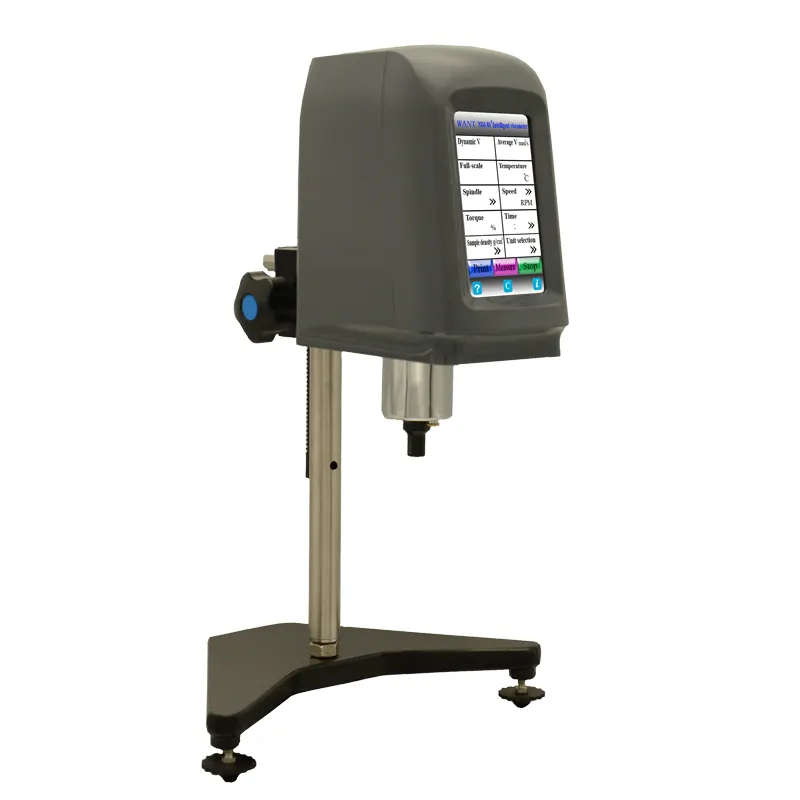

Digital Laboratory Viscosity Meter
A digital laboratory viscosity meter measures a fluid's resistance to flow (viscosity) using rotating spindles or oscillation, commonly applying to paints, food, cosmetics, oils, and adhesives. It is used to analyze Newton's law for liquids, determine shear rates, and maintain product quality by measuring viscosity under controlled temperatures and speeds.
Model | ME-LVDV-2T |
Speed(r/min) | 0.3100 infinitely variable speed , a total of 998 speed options |
Measuring Range | Rotor 1-4: 106,000,000 mPa.s ULR: 1-6000 Rotor 18: 1.5 - 300,000 Rotor 25: 240 4.8,000,000 Rotor 31: 15 - 300,000 Rotor 34: 30 - 600,000 |
Rotor | L1 - L4 (Standard) Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional)） |
Sample Dosage | Rotor 1- 4: 300 - 400ml ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml ( K = 1000; M = 1000000 ) |
Measurement Error | ±1% (Newtonian liquid) |
Repetitive Error | ±0.5% (Newtonian liquid) |
Data output Interface | RS232*2pcs, temperature probe interface*1pc |
Power | 110V ~240V , 50Hz / 60Hz |
Packing Size and weight | 350 *350 *450mm & 7kg |
Standard Accessory | Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter. |
Optional Accessory | Supper Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. |
Digital Laboratory Viscosity Meter
