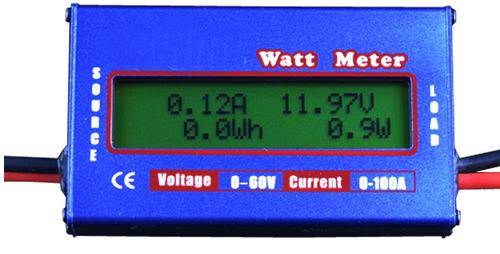

Digital LCD Display 60Vdc 100A Digital DC Watt Meter Power Analyzer

Watt Meter 0-60V 0-100A DC:

This unit is a perfect all in one meter, it will give you all the readings you need:

Voltage, Current, Watts, Amp Hours and Watt Hours. There is a "Input" for your power source (Battery or Power Supply) and a "output" for your load (Light, Motor etc). That is it! Very easy to use!

Specification :

• Brand new and high quality.
• Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).

• Accurate & precise 0.01 A current and 0.01 V voltage resolutions.

• Rugged- handles 50A continuous and 100 A peak at 60V.



Performance parameters:

• Color:Blue

• Voltage:(0)V-4V-60V 0.01V (Resolution).

• Current:0-100 A peak 0.01A (Resolution).

• Power:0-6554 W 0.1W (Resolution).

• Charge:0-65 Ah 0.001Ah (Resolution).

• Energy:0-6554 wh 0.1 Wh (Resolution).

• Measurement Update period:400mS.

• Signal Sampling Rate:sample/s.

• Data Queue Sequence time: 2 seconds.

• In Circuit Resistance:0.001 Ohms.

• Operation Current: 7 mA.
• Dimensions (L x W x D) 84 x 50 x 20mm
