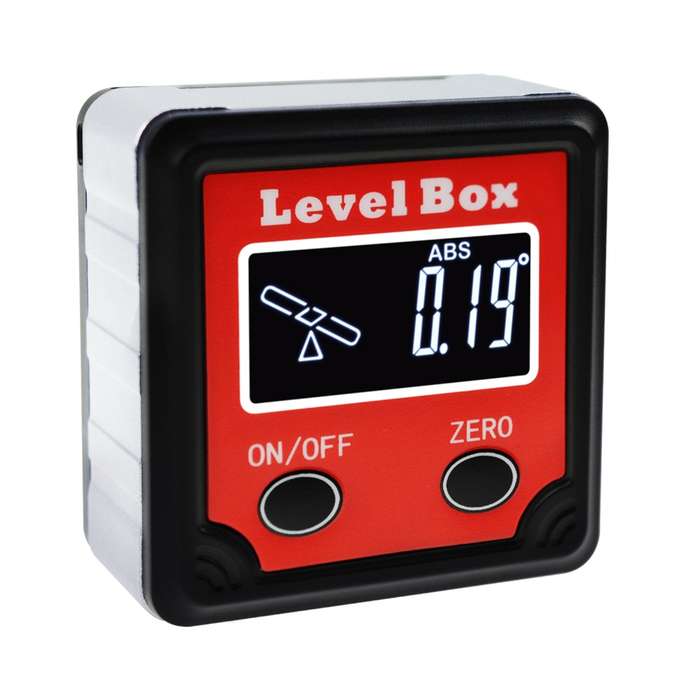

Digital Level Angle Finder Bevel Box Magnetic Base 360 (4 x 90) Inclinometer Protractor Gauge Ti

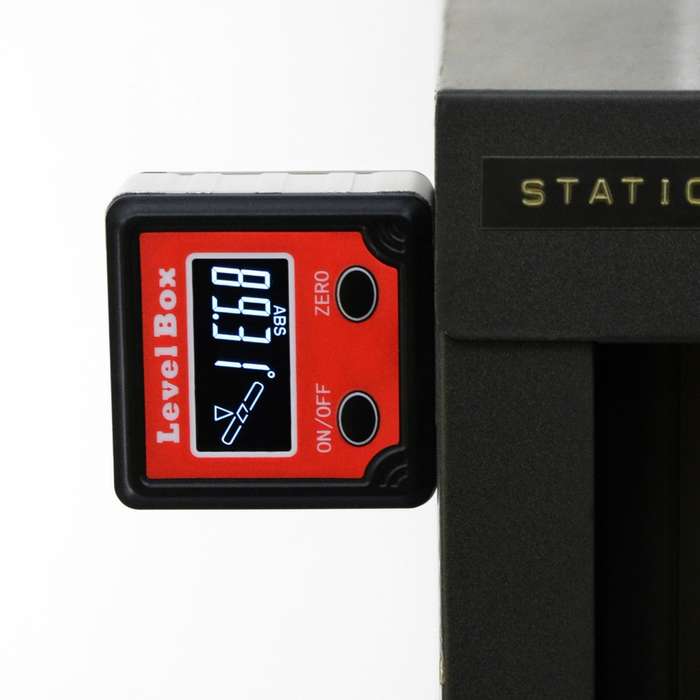

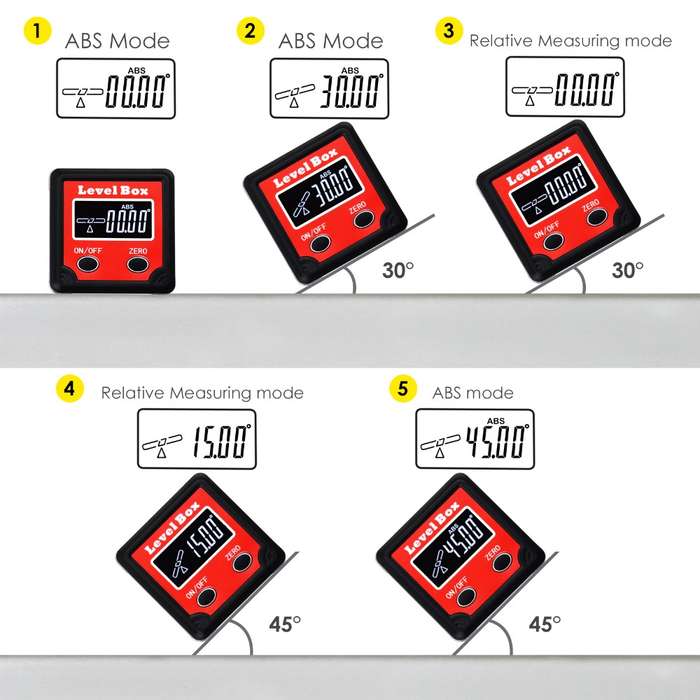

Product Description: Highly accurate level box or angle finder cubes provides absolute and relative measurements, including the ability to zero set to any position. It has a magnetic base that can be attached to the work surface area that is going to be measured. A see-saw figure is specially designed on the display to show the direction that the plate is tilting. This is especially useful when the tilted degree is small and difficult to be judged by naked eyes. Applications: setting pitch angles for helicopters, adjusting the blade angle of miter saws, table saws and circular saws, setting up the tool settings on lathes, assessing drainage angles and run off slopes, and aligning graders and tractors. Features: Clear illuminated LCD display with automatic backlight Magnetic base Simple operation by just 2 buttons Absolute & relative measurement Zero set to any position to find the relative angle between 2 planes See-saw figure on the display to show the tilted direction No Temperature drift Auto power off function Aluminum framework Handy easy to carry anywhere Pre-calibrated at the factory a Specifications: Working range: 4 x 90ﾣ Accuracy: 0 & 90ﾣ: ±0.1ﾣ, the rest: ±0.2ﾣ Resolution: 0.05ﾣ Relative Measurement: set any angle to zero Working Temperature: 0~40ﾣC ( 32~104ﾣF) Working Humidity: a85% Power Supply: 2 x AAA Alkaline battery(not included) Dimension: approx. 59 x 59 x 28mm Weight: approx. 70gms Package includes: 1 x Bevel Box 1 x Carrying pouch 1 x English Manual Details pictures:
