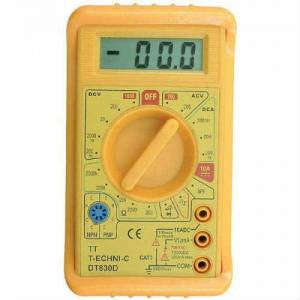

The DT830BR Digital Multimeter is a great tool for studying your robot's electronics and diagnosing a variety of issues.
Features:
Includes red and black test leads and a manual.
Every electronic enthusiast should have a mulitmeter in their toolbox
COLOUR MAY VARY
The DT830B has a wide operating temperature: -20°C to 75° (32°F to 104°F) and a storage temperature of: -10°C to 50°C (10°F to 122°F). The accuracy is guaranteed to stay in the following limits for 1 year, when used at 23°C ± 5°C, less than 75% relative humidity:
Frequency range: 45Hz to 450Hz.
Response: Average responding, calibrated in RMS of a sine wave.
| Range | Resolution | Accuracy |
|---|---|---|
| 200V | 100mV | ±1.2 % of rdg ± 10 digits |
| 750V | 1V | ±1.2 % of rdg ± 10 digits |
Note: some models have a maximum input voltage of only 600V AC with an overload protection of 600V DC or RMS AC for all ACV ranges.
| Range | Resolution | Accuracy |
|---|---|---|
| 200mV | 0.1mV | ±0.5% of rdg ± 2 digits |
| 2000mV | 1mV | ±0.5% of rdg ± 2 digits |
| 20V | 10mV | ±0.5% of rdg ± 2 digits |
| 200V | 100mV | ±0.5% of rdg ± 2 digits |
| 1000V | 1V | ±0.8% of rdg ± 2 digits |
Input impedance: 1MΩ
Maximum input voltage: 1000V DC or 750V rms (200mV scale: 500V DC or 350V AC rms) Note: some models will have a maximum DC input voltage of only 600V with an overload protection of 250V RMS AC for the 200mV range and 600V DC or RMS AC for other ranges.
Overload protection: F250mA 250V fuse (10A range is unfused!).
| Range | Resolution | Accuracy |
|---|---|---|
| 200µA | 0.1µA | ±1.0% of rdg ± 2 digits |
| 2000µA | 1µA | ±1.0% of rdg ± 2 digits |
| 20mA | 0.01mA | ±1.0% of rdg ± 2 digits |
| 200mA | 0.1mA | ±1.5% of rdg ± 2 digits |
| 10A | 10mA | ±3.0% of rdg ± 2 digits |
Maximum open circuit voltage: 3.2V
Overload protection: 250V rms. AC on all ranges.
| Range | Resolution | Accuracy |
|---|---|---|
| 200Ω | 0.1Ω | ±0.8% of rdg ± 3 digits |
| 2000Ω | 1Ω | ±0.8% of rdg ± 2 digits |
| 20kΩ | 10Ω | ±0.8% of rdg ± 2 digits |
| 200kΩ | 100Ω | ±0.8% of rdg ± 2 digits |
| 2000kΩ | 1kΩ | ±1.0% of rdg ± 2 digits |
Diode aprox. testing voltage is 2.8V with a current of 1mA. The overload protection in the diode test mode is 250V RMS. AC.
Over range indication: figure "1" on the display.
Size: 126×70×25mm
Weight: 170g.
