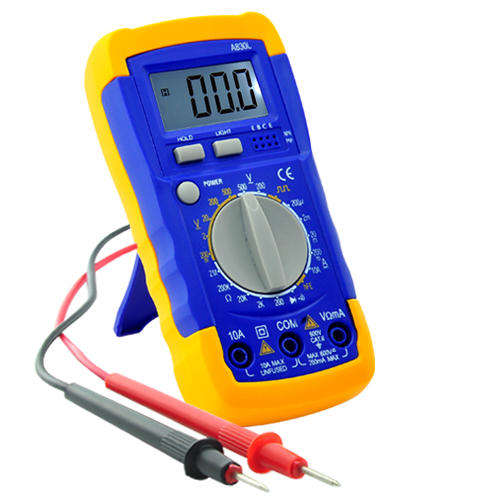

Digital Multimeter - 8 Function Edition - G241

Digital Multimeter - 8 Function Edition

This Multimeter comes with measurement and testing functions for voltage, current, resistance, continuity (connection between two points), testing diodes and temperature. This Digital Multimeter is a must have testing tool for your tool box, shed, garage, car trunk, etc. Its portability enables you to be able to take it with you wherever you go, and provides you with a multitude of features that helps you achieve the best results every time.

Manufacturer Specifications

• Primary Function: Digital Multimeter
• Material: Hard Molded ABS Casing - Yellow and Blue color
• LCD Display: 1.8 Inch
• Backlight: Yes
• On Board Buttons: Power, Light, Hold
• DC Voltage:
  - Range: 200mV, Resolution - 0.1mV, Accuracy = (+/- 0.5% of rdg + 2 digits)
  - Range 2V, Resolution 1mV, Accuracy = (+/- 0.5% of rdg + 2 digits)
  - Range 20V, Resolution 10mV, Accuracy = (+/- 0.5% of rdg + 2 digits)
  - Range 200V, Resolution 100mV, Accuracy = (+/- 0.8% of rdg + 3 digits)
  - Range 600V, Resolution 1V, Accuracy = (+/- 0.8% of rdg + 3 digits)
• Input Impendence: 10M (Ohms)
• Overload Protection: 250V for 200mV Range, effective DC or AC 600V for other ranges
• AC Voltage:
  - Range 200mV, Resolution 100uV, Accuracy = (+/- 1.0% of rdg + 10 digits)
  - Range 2V, Resolution 1mV, Accuracy = (+/- 1.0% of rdg + 10 digits)
  - Range 20V, Resolution 10mV, Accuracy = (+/- 1.0% of rdg + 10 digits)
  - Range 200V, Resolution 100mV, Accuracy = (+/- 1.2% of rdg + 10 digits)
  - Range 600V, Resolution 1V, Accuracy = (+/- 1.0% of rdg + 10 digits)
• Frequency Range: 40 to 400Hz
• Respond: Average, calibrated in RMS of Sine Wave
• DC Current:
  - Range 200uA, Resolution 0.1uA, Accuracy = (+/- 1.0% of rdg + 2 digits)
  - Range 2mA, Resolution 1uA, Accuracy = (+/- 1.0% of rdg + 2 digits)
  - Range 2mA, Resolution 10uA, Accuracy = (+/- 1.0% of rdg + 2 digits)
  - Range 200mA, Resolution 100uA, Accuracy = (+/- 1.5% of rdg + 2 digits)
  - Range 2A, Resolution 1mA, Accuracy = (+/- 3% of rdg + 2 digits)
  - Range 10A, Resolution 10mA, Accuracy = (+/- 3% of rdg + 2 digits)
• Overload Protection: F200mA/250V Fuse
• Note: 10A Range not fused
• AC Current:
  - Range 200uA, Resolution 0.1uA, Accuracy = (+/- 1.8% of rdg + 5 digits)
  - Range 2000mA, Resolution 1uA, Accuracy = (+/- 1.8% of rdg + 5 digits)
  - Range 20mA, Resolution 10uA, Accuracy = (+/- 1.8% of rdg + 5 digits)
  - Range 200mA, Resolution 100uA, Accuracy = (+/- 2.5% of rdg + 5 digits)
  - Range 2A, Resolution 1mA, Accuracy = (+/- 3% of rdg + 15 digits)
  - Range 10A, Resolution 10mA, Accuracy = (+/- 3% of rdg + 15 digits)
• Resistance
  - Range 20 (Ohms), Resolution 0.01 (Ohms), Accuracy = (+/- 3.0% of rdg + 20 digits)
  - Range 200 (Ohms), Resolution 0.1 (Ohms), Accuracy = (+/- 0.8% of rdg + 3 digits)
  - Range 2K (Ohms), Resolution 1 (Ohms), Accuracy = (+/- 0.8% of rdg + 3 digits)
  - Range 20K (Ohms), Resolution 10 (Ohms), Accuracy = (+/- 0.8% of rdg + 3 digits)
  - Range 200K (Ohms), Resolution 100 (Ohms)
  - Range 20M (Ohms), Resolution 1K (Ohms), Accuracy = (+/- 1.0% of rdg + 3 digits)
  - Range 20M (Ohms), Resolution 10K (Ohms), Accuracy = (+/- 1.5% of rdg + 3 digits)
• Overload Protection: 250V DC or RMS AC
• Temperature (Only for A930C):
• -40 to 1000 Degrees Celsius, Resolution 1 Degrees Celsius
  - Accuracy = (+/- 1.0% of rdg + 3 digits) <400 Degrees Celsius
  - Accuracy = (+/- 1.5% of rdg + 15 digits) >400 Degrees Celsius
• -40 to 1832 Fahrenheit Degrees, Resolution 1 Degree Fahrenheit
  - Accuracy = (+/- 1.0% of rdg + 3 digits) <750 Degrees Celsius
  - Accuracy = (+/- 1.5% of rdg + 15 digits) >750 Degrees Celsius
• Transistor hFE Test
  - Range NPN & PNP, Test Range 0-1000, Test Current/Voltage, Ib=10uA/Vce=3V
• Diode Test
  - Resolution 1mV, Function Display: Read approximate forward voltage of diode
• Over Load Protection: 250V, Effective Value
• Forward DC Current: Approximate 1mA
• Reversed DC Voltage: Approximate 3.0V
• Battery Test:
  - Range 1.5V, Resolution 41.1mA (+/- 1.8%of rdg + 2 Digits)
  - Range 1.5V, Resolution 1.5V (+/- 1.3%of rdg + 2 Digits)
  - Range 3V, Resolution 3V (+/- 1.3%of rdg + 2 Digits)
  - Range 9V, Resolution 9V (+/- 1.3%of rdg + 2 Digits)
  - Range 24V, Resolution 24V (+/- 1.3%of rdg + 2 Digits)
• Continuity: Built-in buzzer wikII sound if resistance is less than 50 (Ohms)
• Kick Stand: Yes
• Power Source: 9V Battery (not included)
• Dimensions: L:144 x W:70 x D:35 (mm)
• Certification: CE, FCC, RoHS

Package Contents

• Digital Multimeter, Test Cables, User Manual - English
