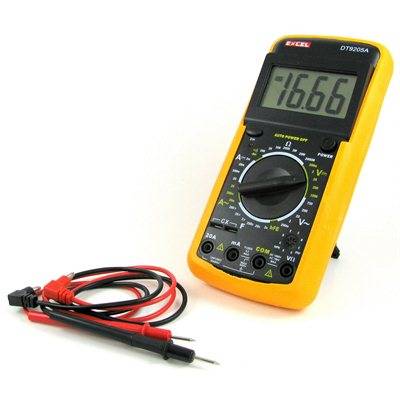

DIGITAL MULTIMETER- DT9025A
Product Description
This meter can be used in many fields such as laboratory, factory, workshop and home applications.It is a essential tool for electricians.It can measure DC/AC voltage,DC/AC current,resistance and capacitance. It also can be use for diode and continuity test.
Features:
3½ digits, 7segment, Large LCD Display.
Max display: 1999, Automatic polarity display
All ranges fully protected.
Diode assembly test / Transistor P-N junction test/Transistor hFE test
Continuity test with buzzer sound in circuit.
Low battery voltage indication.
Automatic power off.
Data hold function.
Electric circuit protection.
Specifications:
Model:DT9025A
Measuring range:
Max AC Current:20A
Max AC Voltage range:750V
Max DC Voltage range:1000V
Resistance Measurement:200 Ohm-2000M Ohm range
Scale degree&Accuracy:
Showed as in the table
Function
Range
Resolution
Accuracy
DC Voltage
200mV
100uV
±(0.5%+5)
2000mV
1mV
20V
10mV
200V
100mV
1000V
5V
±(0.8%+2)
AC Voltage
200mV
100μV
±(1.2%+3)
2V
1mV
±(0.8%+3)
20V
10mV
200V
100mV
750V
1V
±(1.2%+3)
AC Current
20mA
10uA
±(1..2%+3)
200mA
100uA
±(2.0%+3)
20A
10mA
±(3.0%+7)
DC Current
2mA
1uA
±(1..2%+5)
20mA
10uA
200mA
100uA
2A
10mA
±(2.0%+5)
Resistance
200Ω
0.1Ω
±(0.8%+3)
2000Ω
1Ω
±(0.8%+1)
20KΩ
10Ω
200KΩ
100Ω
2000KΩ
1000Ω
20MΩ
10KΩ
±(1.0%+2)
2000MΩ
100KΩ
±(5%+10)
Capacitance
2nF
1pF
±(2.5%+5)
20nF
10pF
200nF
100pF
2uF
1nF
20uF
10nF
200uF
100nF
±(5%+5)
Power Supply:9V 6F22 battery
Dimension:192x92x32mm
Colour:black
Package included:
1 x Digital Multimeter
2 x Test Leads line(red&black)
1 x Manual
1 x Protective Shell.
Unit net weight:305g
Unit packing gross weight:405g
