DIGITAL MULTIMETER- DT9025A

Product Description

This meter can be used in many fields such as laboratory, factory, workshop and home applications.It is a essential tool for electricians.It can measure DC/AC voltage,DC/AC current,resistance and capacitance. It also can be use for diode and continuity test.

Features:

3½ digits, 7segment, Large LCD Display.

Max display: 1999, Automatic polarity display

All ranges fully protected.

Diode assembly test / Transistor P-N junction test/Transistor hFE test

Continuity test with buzzer sound in circuit.

Low battery voltage indication.

Automatic power off.

Data hold function.

Electric circuit protection.

Specifications:

Model:DT9025A

Measuring range:

Max AC Current:20A

Max AC Voltage range:750V

Max DC Voltage range:1000V

Resistance Measurement:200 Ohm-2000M Ohm range

Scale degree&Accuracy:

Showed as in the table

Function

Range

Resolution

Accuracy

DC Voltage

200mV

100uV

±(0.5%+5)

2000mV

1mV

20V

10mV

200V

100mV

1000V

5V

±(0.8%+2)

AC Voltage

200mV

100μV

±(1.2%+3)

2V

1mV

±(0.8%+3)

20V

10mV

200V

100mV

750V

1V

±(1.2%+3)

AC Current

20mA

10uA

±(1..2%+3)

200mA

100uA

±(2.0%+3)

20A

10mA

±(3.0%+7)

DC Current

2mA

1uA

±(1..2%+5)

20mA

10uA

200mA

100uA

2A

10mA

±(2.0%+5)

Resistance

200Ω

0.1Ω

±(0.8%+3)

2000Ω

±(0.8%+1)

20KΩ

10Ω

200KΩ

100Ω

2000KΩ

1000Ω

20MΩ

10KΩ

±(1.0%+2)

2000MΩ

100KΩ

±(5%+10)

Capacitance

2nF

1pF

±(2.5%+5)

20nF

10pF

200nF

100pF

2uF

1nF

20uF

10nF

200uF

100nF

±(5%+5)

Power Supply:9V 6F22 battery

Dimension:192x92x32mm

Colour:black

Package included:

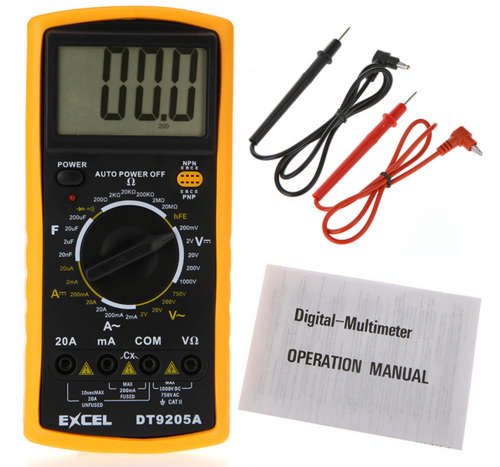

1 x Digital Multimeter

2 x Test Leads line(red&black)

1 x Manual

1 x Protective Shell.

Unit net weight:305g

Unit packing gross weight:405g
