Digital Multimeter - DT9205A

Digital Multimeter - DT9205A

Product Description

This meter can be used in many fields such as laboratory, factory, workshop and home applications.It is a essential tool for electricians.It can measure DC/AC voltage,DC/AC current,resistance and capacitance. It also can be use for diode and continuity test.

Features:

• 3½ digits, 7segment, Large LCD Display.
• Max display: 1999, Automatic polarity display
• All ranges fully protected.
• Diode assembly test / Transistor P-N junction test/Transistor hFE test
• Continuity test with buzzer sound in circuit.
• Low battery voltage indication.
• Automatic power off.
• Data hold function.

Electric circuit protection.

Specifications:

• Model:DT9205A
• Measuring range:
• Max AC Current:20A
• Max AC Voltage range:750V
• Max DC Voltage range:1000V
• Resistance Measurement:200 Ohm-2000M Ohm range
• Scale degree&Accuracy:
• Showed as in the table
• Function
• Range
• Resolution
• Accuracy
• DC Voltage
• 200mV
• 100uV
• ±(0.5%+5)
• 2000mV
• 1mV
• 20V
• 10mV
• 200V
• 100mV
• 1000V
• 5V
• ±(0.8%+2)
• AC Voltage
• 200mV
• 100V
• ±(1.2%+3)
• 2V
• 1mV
• ±(0.8%+3)
• 20V
• 10mV
• 200V
• 100mV
• 750V
• 1V
• ±(1.2%+3)
• AC Current
• 20mA
• 10uA
• ±(1..2%+3)
• 200mA
• 100uA
• ±(2.0%+3)
• 20A
• 10mA
• ±(3.0%+7)
• DC Current
• 2mA
• 1uA
• ±(1..2%+5)
• 20mA
• 10uA
• 200mA
• 100uA
• 2A
• 10mA
• ±(2.0%+5)
• Resistance
• 200
• 0.1
• ±(0.8%+3)
• 2000
• 1
• ±(0.8%+1)
• 20K
• 10
• 200K
• 100
• 2000K
• 1000
• 20M
• 10K
• ±(1.0%+2)
• 2000M
• 100K
• ±(5%+10)
• Capacitance
• 2nF
• 1pF
• ±(2.5%+5)
• 20nF
• 10pF
• 200nF
• 100pF
• 2uF
• 1nF
• 20uF
• 10nF
• 200uF
• 100nF
• ±(5%+5)

Power Supply:9V 6F22 battery

Dimension:192x92x32mm

Colour:black

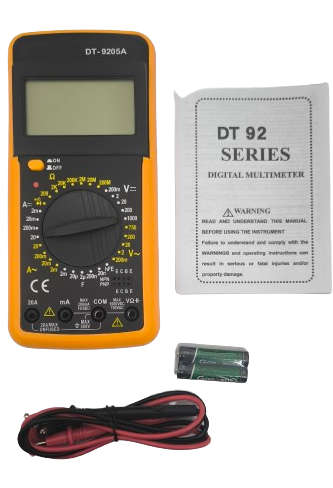

Package included:

• 1 x Digital Multimeter
• 2 x Test Leads line(red&black)
• 1 x Manual
• 1 x Protective Shell.

Unit net weight:305g

Unit packing gross weight:405g
