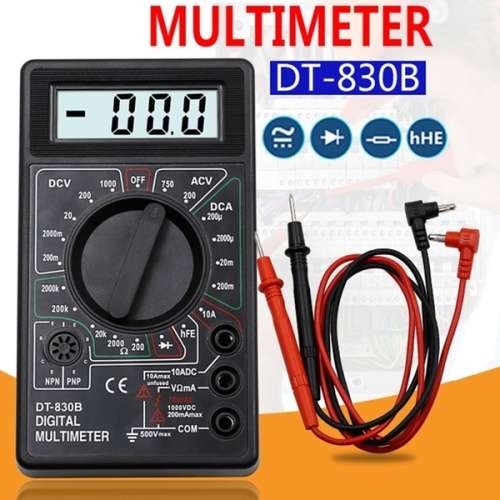

Digital Multimeter

Digital Multimeter

Features:

1.Model: DT-830B

2.Measuring range:

3.Max AC Current: 10A

4.Max AC Voltage range: 1000V

5.Max DC Voltage range: 750V

6.Resistance Measurement: 200 Ohm-2000K Ohm range

7.Temperature Test: -40-1000 °

8.Power Supply: 9V Battery (Not Included )

9.Color: Black /Yellow

10.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78'' (L*W*H)

11.Scale degree & Accuracy:

12.DC voltage: 200mV 100uv±(0.5% + 2) 2000mv 1mv 20v 10mv 200v 100mv 1000v 1v±(0.8% + 2)

13.AC voltage: 200V 100mv±(1.2% + 10) 750v 1v

14.DC current: 2000ua 1ua±(1% + 2) 20ma 10ua 200ma 100ua±(1.2% + 2) 10a 10ma±(2% + 2) 15.Resistance: 2000.1±(0.8% + 2) 20001 20k10 200k100 2000k1000±(1% + 2) 16.Temperature: -40-1000° 1°±3%

1.3 1/2 digits, 7segment, 0.5"high LCD Display.

2.Max display: 1999, Auto polarity display.

3.Small and compact design.

4.Overload protection on all ranges.

5.Sampling 2~3 times readings per second.

6.Diode assembly test / Temperature test/Transistor hFE test.
