The XL830L LCD Digital Multimeter is great for small to medium electronics and robotics projects and is primarily designed to help with troubleshooting issues with a circuit. The multimeter is an affordable, quality multimeter that can handle voltages up to 300V DC or 200V AC. Packed with many features, the multimeter is able to measure DC Voltage, AC Voltage, DC Current, Resistance and Polarity.
Troubleshooting - safely and accurately troubleshoot automotive and household electrical problems. The multimeter features many different functions for measuring as well as testing.
Multifunctional - Providing a wide range of measurements, including AC/DC voltage, DC current, resistance, diode assembly test/transistor hFE test, maximum reading over time, and continuity buzzer.
Easy to use - Lightweight, design with details. Large digital display with backlit LCD for easier reading. A retractable kickstand for hand free use and makes the screen easy to see.
Safety Protection - corner guards for drop protection, overload protection on all ranges. One of the most crucial pieces of test equipment available, perfect for labs, workshops, and household.
Specification:
LCD Screen Size 15 mm2
Max Display 1999 Auto Polarity Display
DC Voltage 200mV / 2V / 20V / 200V ±0.5%, 600V ±0.8%
Max DC Voltage 300VDC (Do Not Exceed)
AC Voltage 200V / 600V ±1.2%
Max AC Voltage 200VAC (Do Not Exceed)
DC Current 200A, 2mA, 20mA ±1%, 200mA ±1.5%, 10A ±3%
Resistance 200Ohms, 2KOhms, 20KOhms, 200KOhms, 2MOhms ±0.8%
Fuse Protection F-200mA/250V
Measuring Method Dual-Slope Integration A/D Converter
Over-range Indication Only figure "1" on the display
Polarity Indication "-" Displayed for Negative Polarity
Low Battery Indication - + Appears on Display
Operating Temperature 0° to 40°C
Storage Temperature -10° to 50°C
Power Source 1 x 9V Battery (Not included)
Dimensions 138mm x 69mm x 31mm
Weight Approximately 240 g

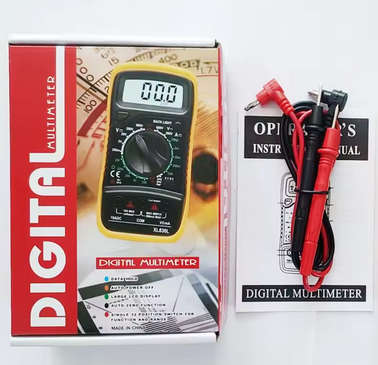

Package includes:
1 x Set of Test Leads
1 x XL830L LCD Digital Multimeter
1 x User Manual
Note: 9v Battery not included
