Digital PID Temperature Controller +6Ft 25A Relay +K type Thermocouple

Please read and understand terms of sale under the Shipping Tab before making your purchase.

Please note:
If there are options for this order, the price indicated is for the basic model.
Please use Ask a Question to ask for the price of any of the other models listed.

Description :

Digital PID Temperature Controller +6Ft 25A Relay +K type Thermocouple

Specification :

Display : Dual display for Fahrenheit(F) and Celsius(C)
Range : -1999 to 9999 (depends on the input signal)
Input : Thermo Resistor : PT100, Cu50
Thermocouple : J,S,K,E,
Main output : SSR, open circuit : 4V, Closed Circuit : 24V 40mA DC
Auto-tuning PID cooling/heating control( can choose normal alarm output by software)
Alarm Output : 1 RELAY : capacity 250V/3A AC, 30V/3A DC
7 different Dual Output modes with : high / low / high deviation / low deviation/ interval / out of interval /breakage alarm
Accuracy : 0.3%
Width switch power : 90-260V AC/DC
Dimension : 48 x 96 x 80mm

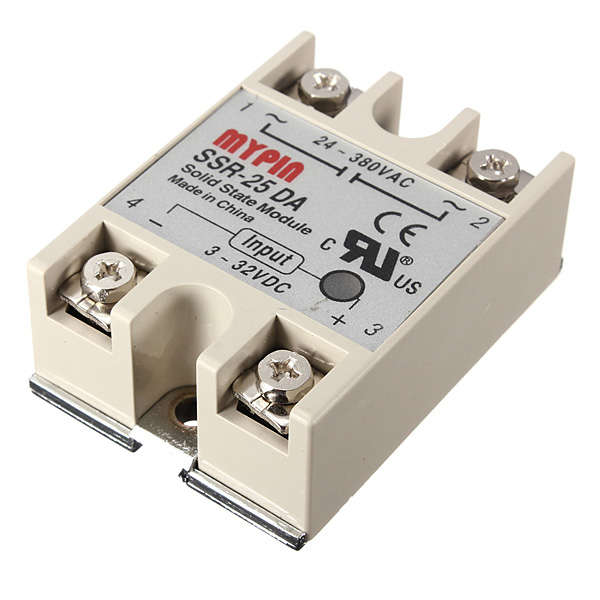

Solid state relay : SSR-25DA
Load Voltage : AC 24-380V
Load Current : 25A
Input Voltage : DC 3-32V

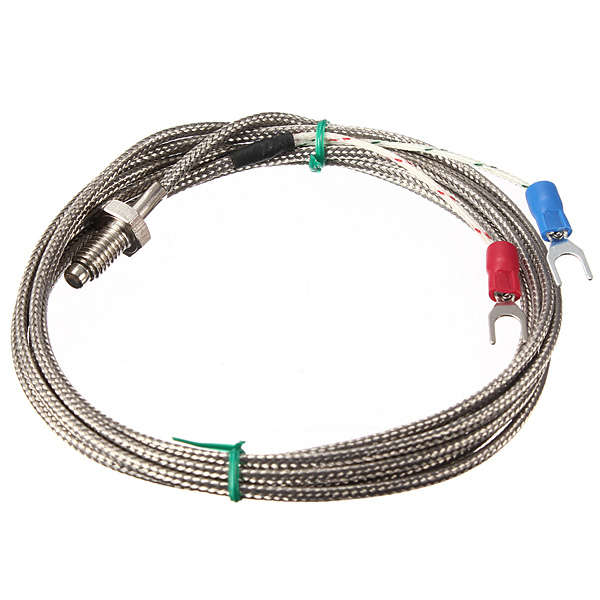

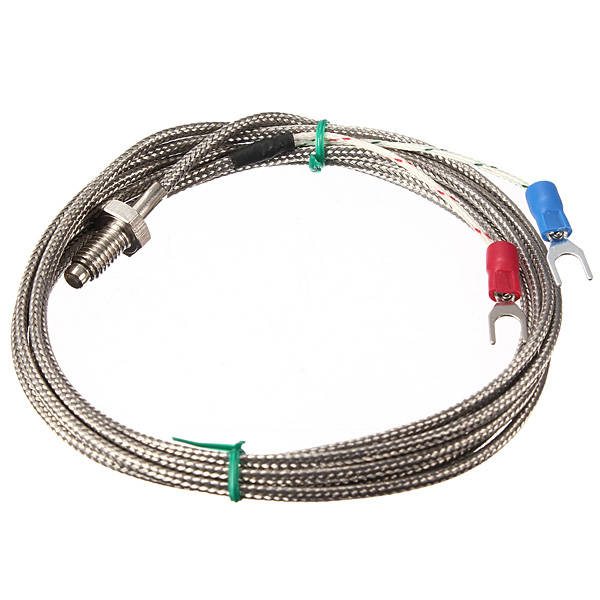

K type thermocouple
Temperature rang : 0-800 ¿¿¿
Sensor Dia : 4.5mm
Cable Length : 2m

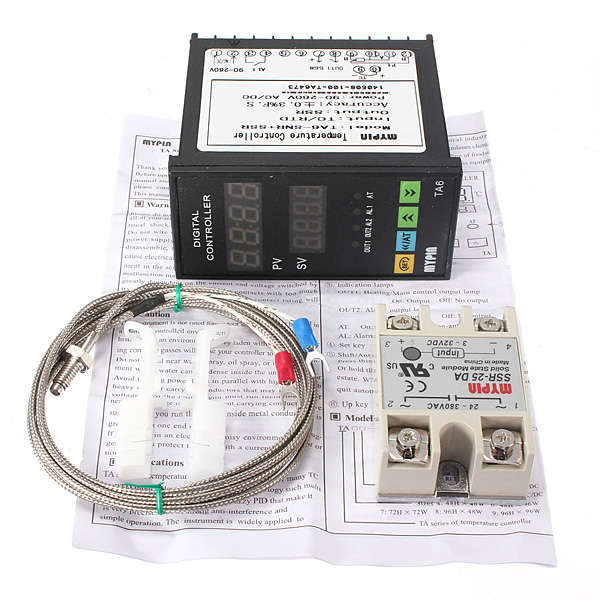

Package included :

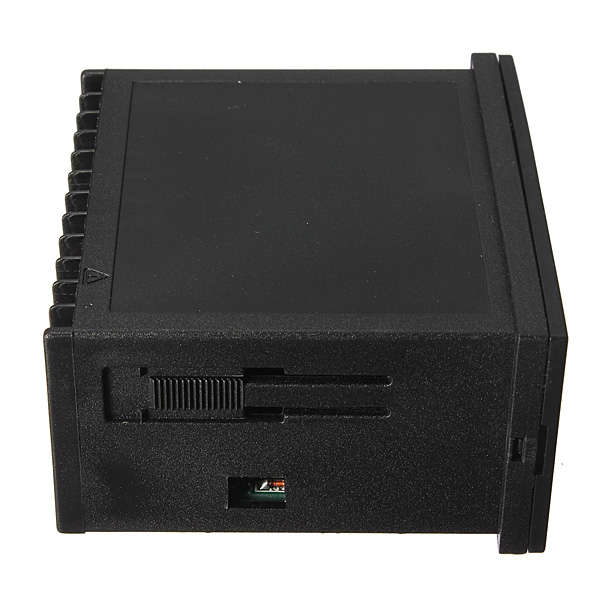

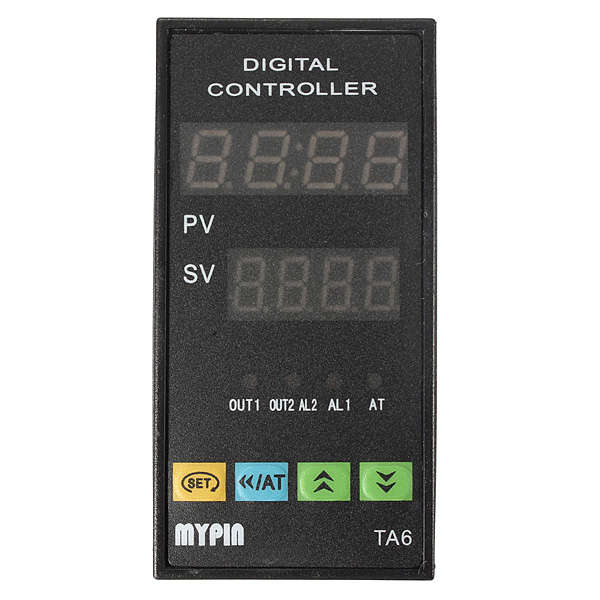

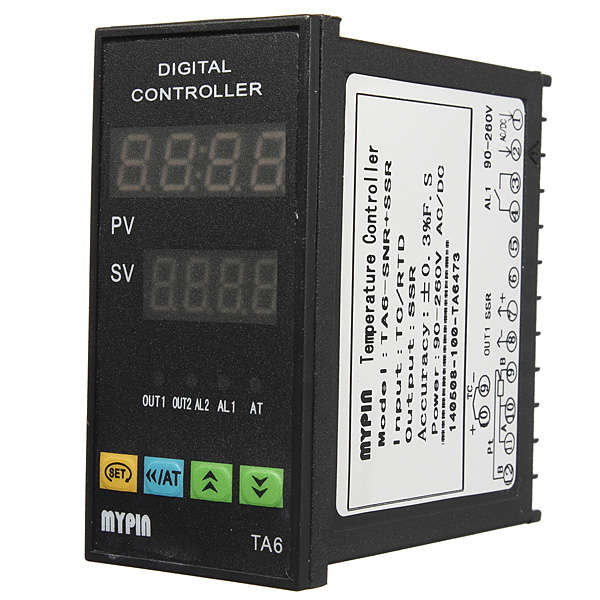

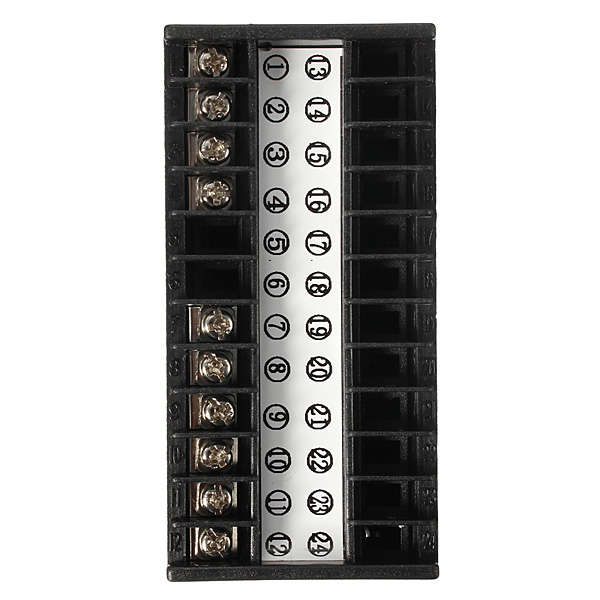

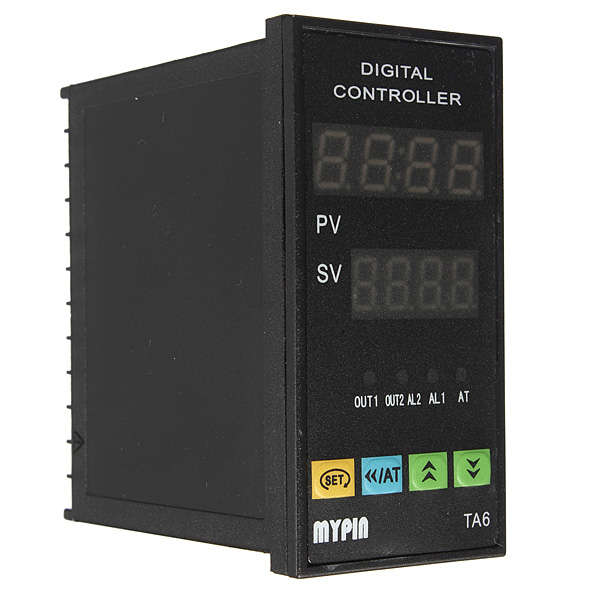

1 x Temperature controller
1 x SSR-25DA Solid state relay
1 x K type thermocouple
1 x User Manual

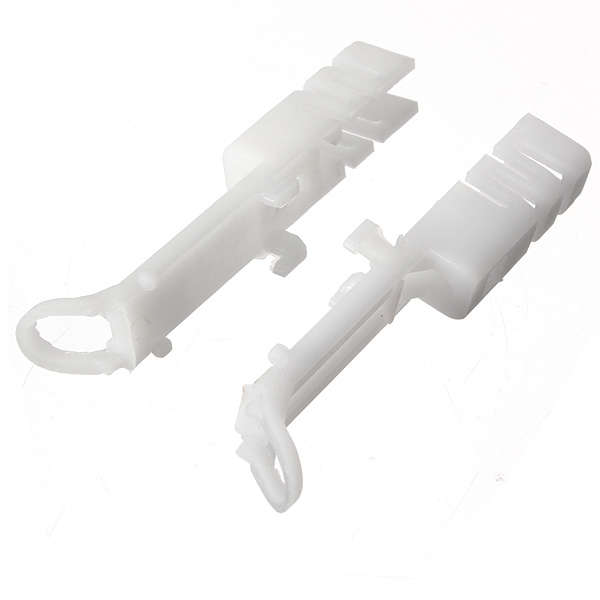

2 x Holder for installation

Details pictures :
