Description :

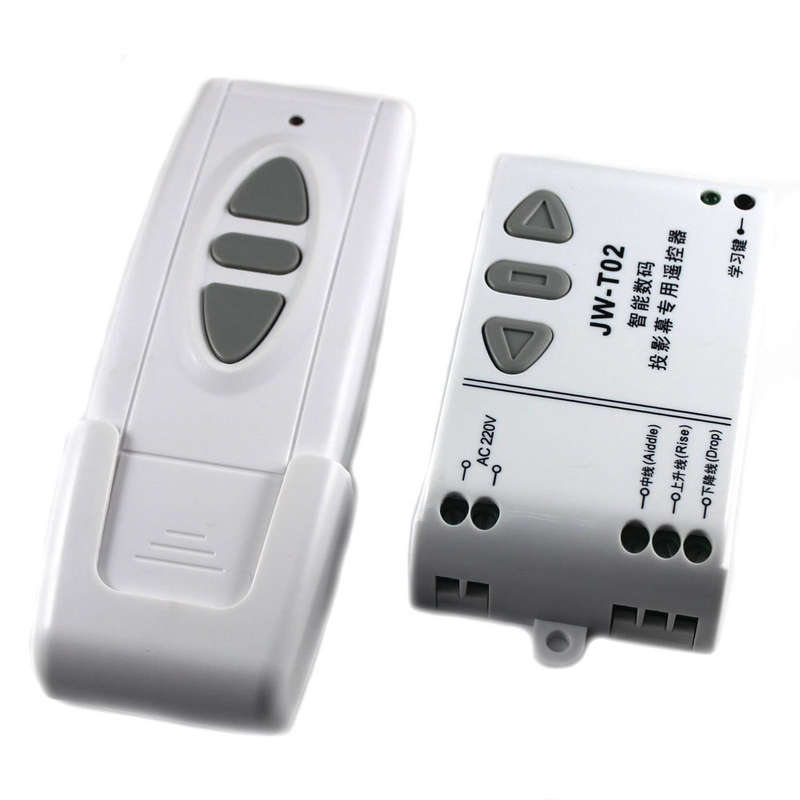

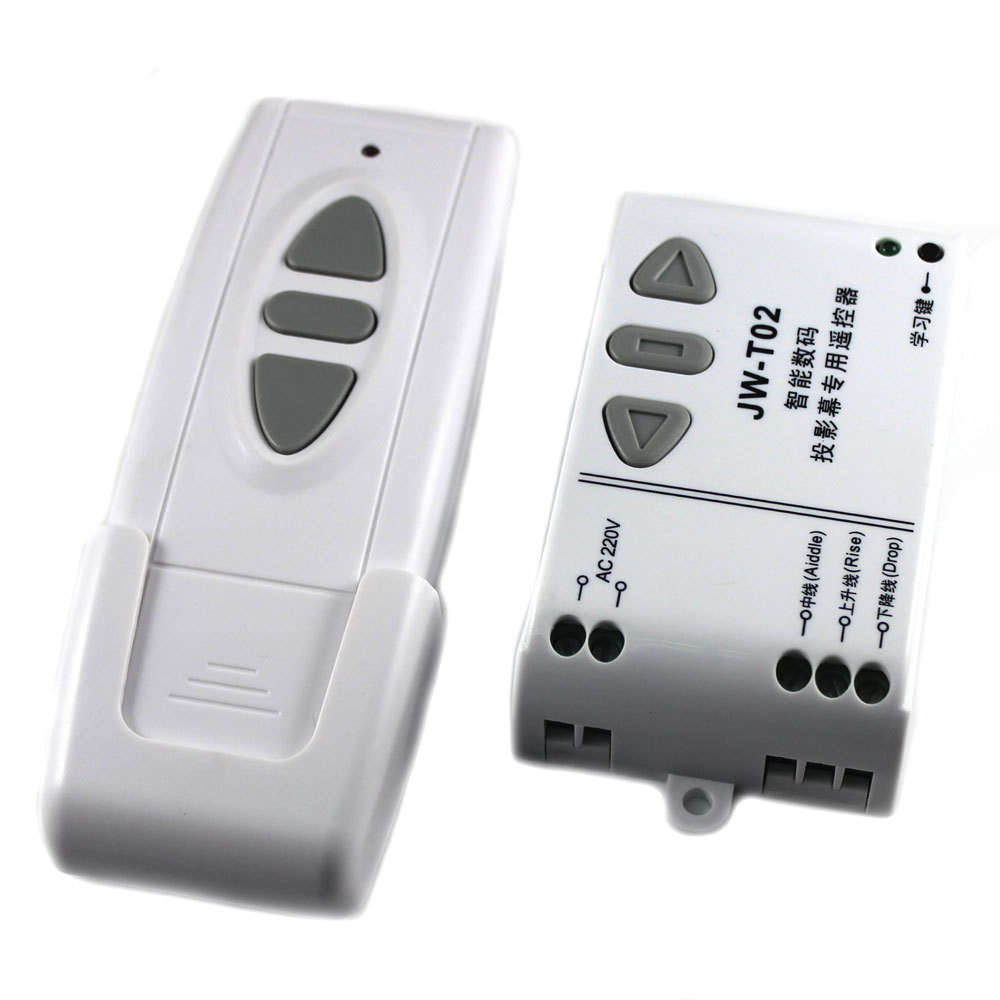

Digital Projection Screen Controller Electrical Curtain Motor Wireless Remote Control Switch Receiver Has a Manual Function
This remote control widely used in Application: Electric brake, electric door, electric Windows, curtain lifts, etcproducts, etc.
Features :
Control is stable and reliable.
Long distance remote control.
The whole system is simple and reliable.
High performance ID confidential group (1 million).
With all kinds of security and protection interface (such as stroke protection, motor stalling protection, infrared security protection), etc.
Wireless remote control.
1 million groups of password, the password to study.
The trip protection (contact systems).
Safety protection (contact systems).
LED work status indication 6.
The scene manually.
The manual operation.
Specification :
Working voltage: 220V AC
The current static job: 8 maA
The working frequency: 315mhz
Sensitivity: - 110 DBM
Load power: 500W
Working environment temperature: -10¿¿¿~ 65¿¿¿
Work environment humidity: max 90 %
Instructions:
1. Remote control: the controller is not under a state of protection, operation up, down, stop buttons can perform remote control motor and reversing and stop function.
2. Manual operation: Under the lock controller is not in the protection state, can undertake operating manual switch control.
3. The study of the remote control and remove.
(1) Remote control learning: Learning button LED light into learning mode, press any button LED flash three times normally on later, said learning success and wait for a remote control.
(2) Remote delete: Executable when lost or new remote control remote control after the first remove the learning process, hold down the learning button for 8 seconds, the LED under the slow flash 5 said all the ID of the remote control, if you want to learn do the remote control function.

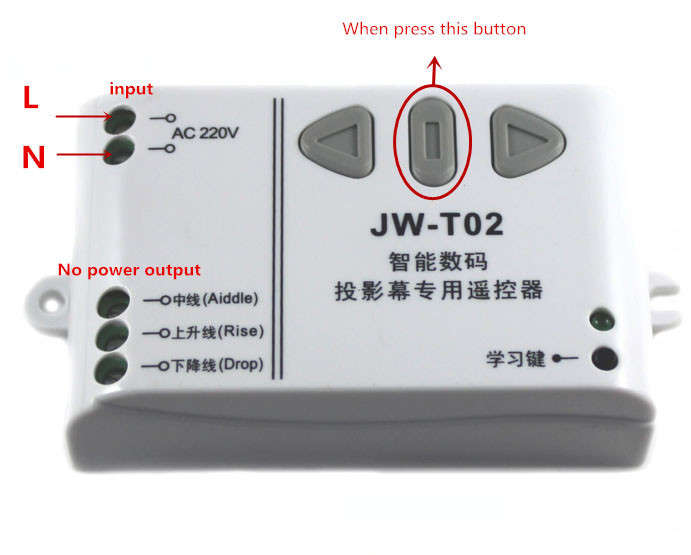

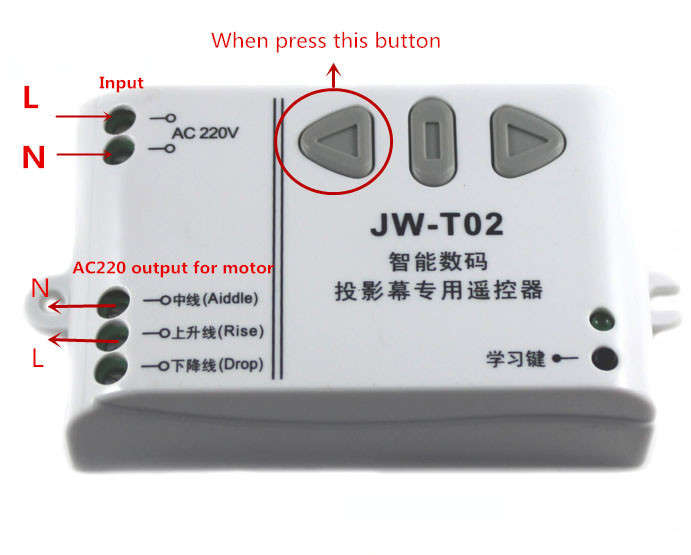

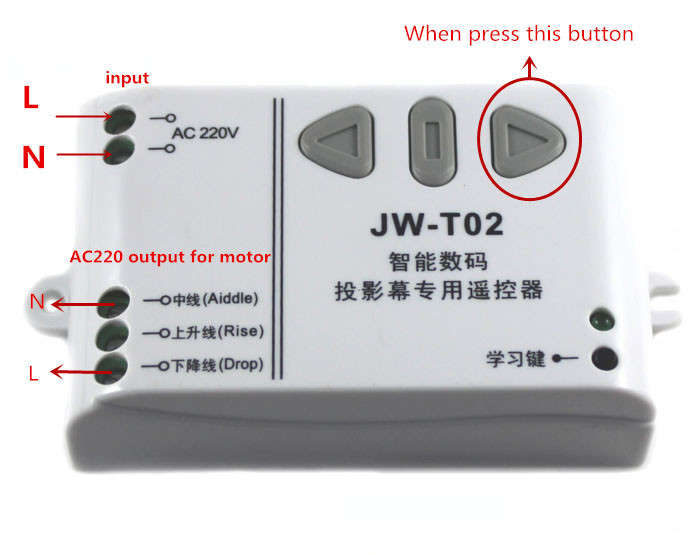

How to connect:Package includeds :

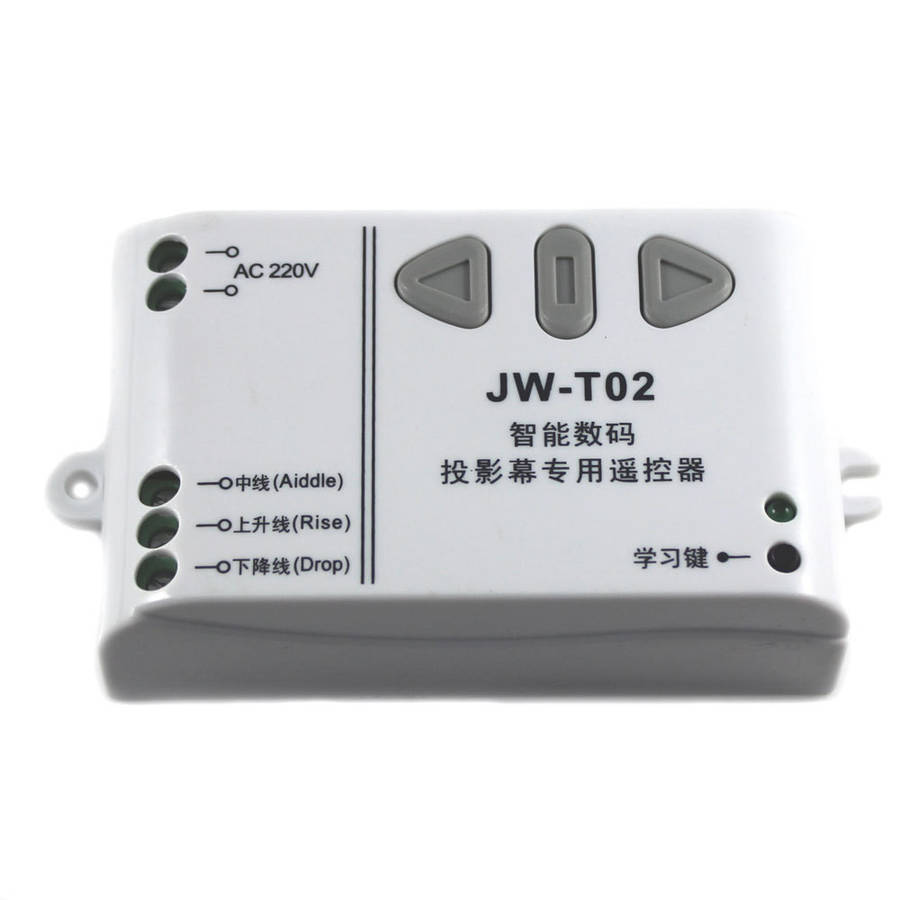

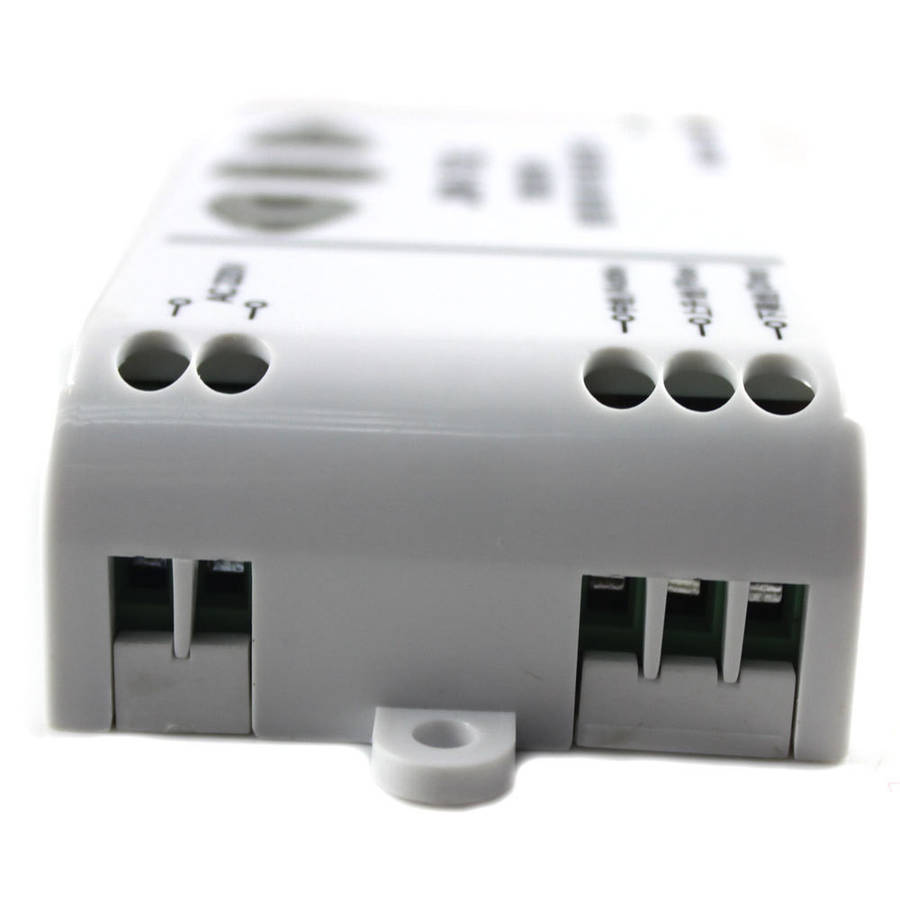

1 x Receiver

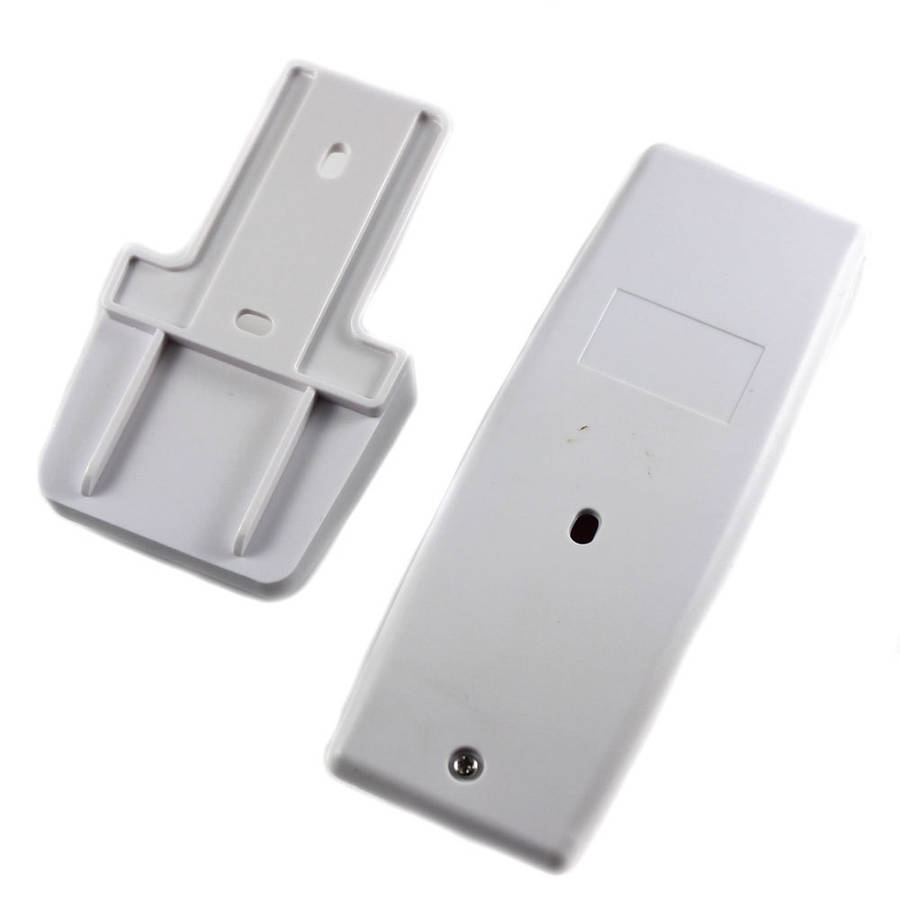

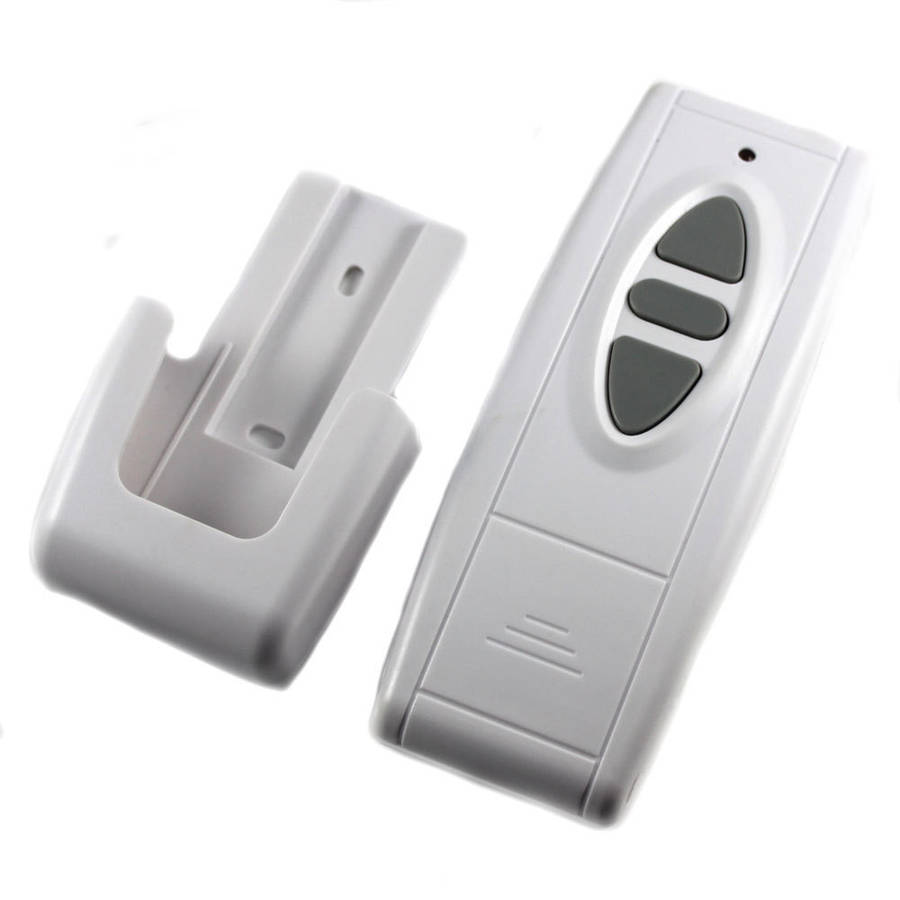

1 x Remote Control (Battery is not includes.)
