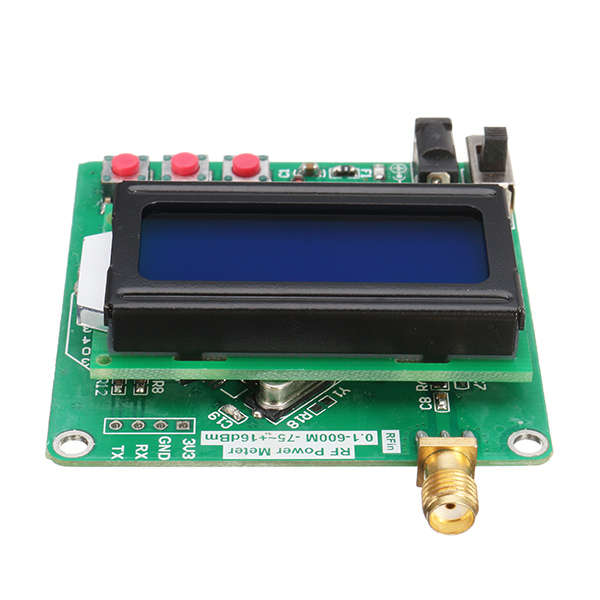

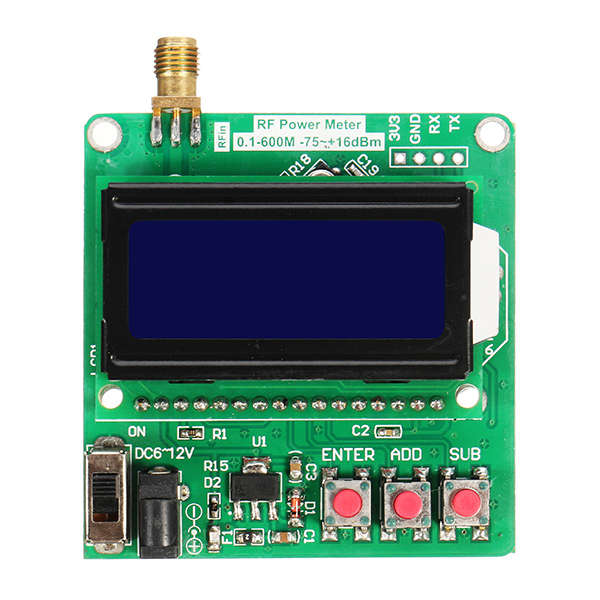

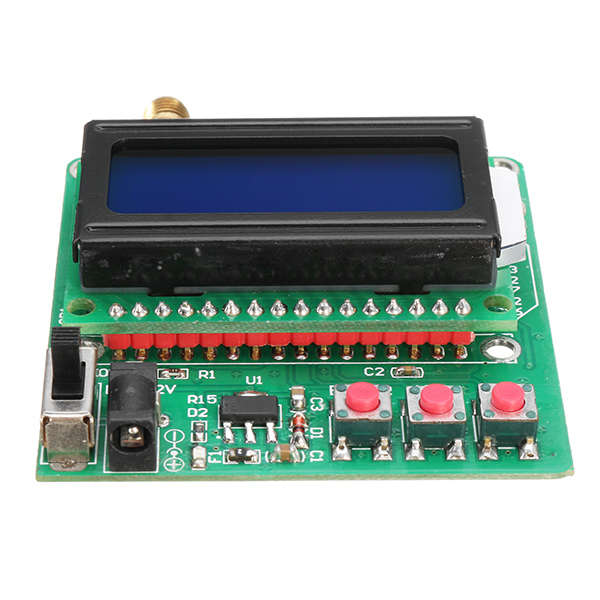

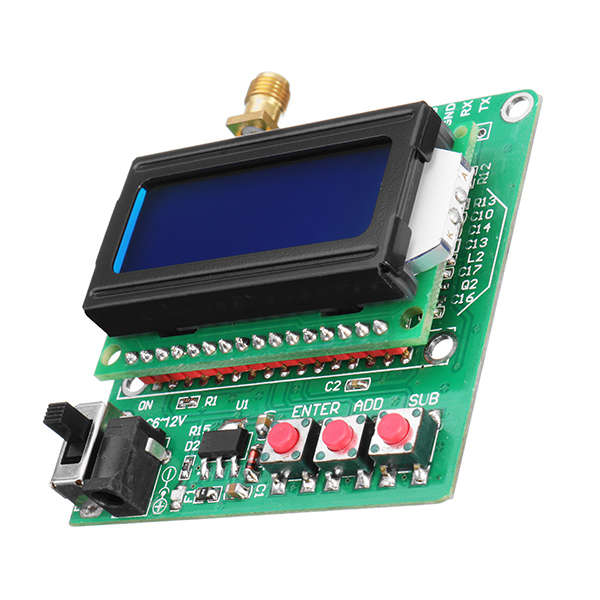

Digital Radio Frequency Power Meter -75~+16dBm Power Attenuation Can Be Set Ultra Small LCD Automati

Technical Data Sheet:

1.Measurement power range:-75 ~ +16 dBm (external RF attenuator can be extended to 100dBm)
2.Measurement power resolution:0.1 dBm
3.Measurement frequency range:1 ~ 600 MHz

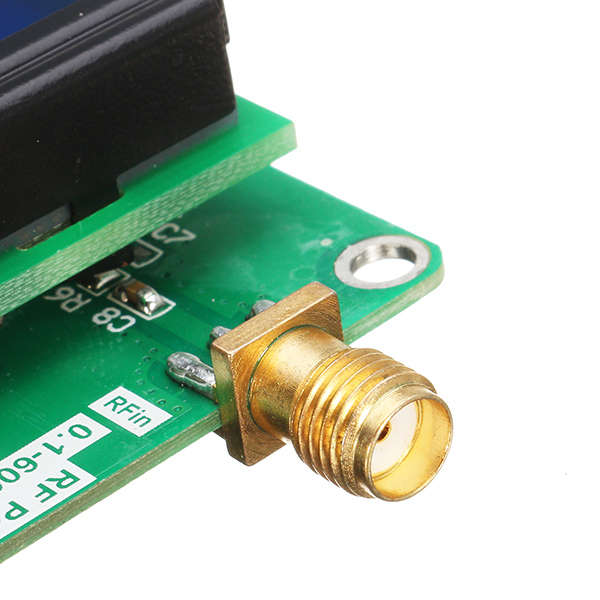

4.output interface:SMA_K
5.Operating voltage:6 ~ 12 VDC
6.Operating current:<45 mA (backlight on)
7.working temperature:-40 a ~ 65 a
8.Storage temperature:-40 a ~ 65 a
9.Size:57 * 58 * 14 mm (length *width *height)

Interface display and operating instructions:

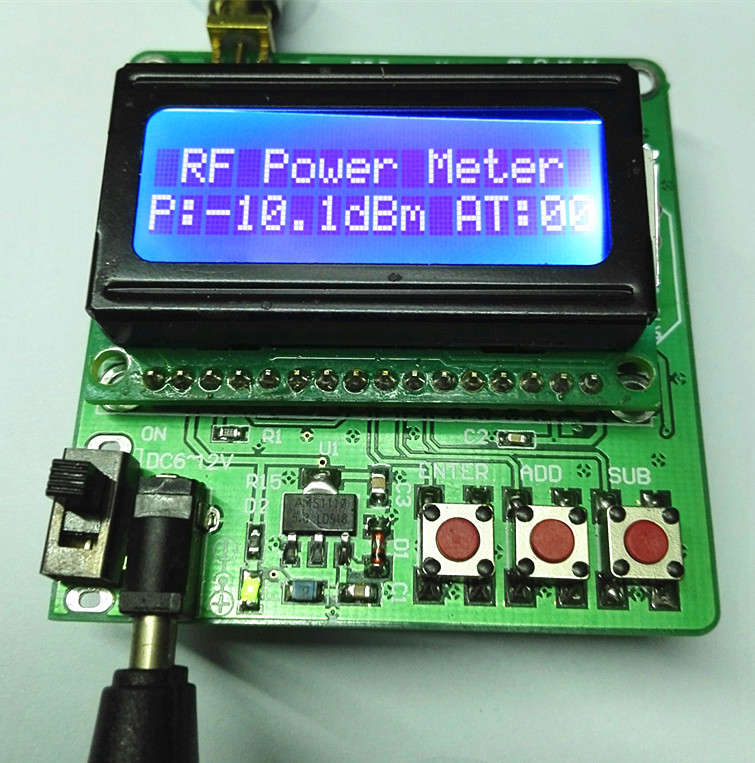

1. Main display,the first line displayshows the RF Power Meter
The second line shows theP:power dBm; AT:attenuation dB
The main menu is measurement results, can not be adjusted.

2.Function menu
A.Attenuation setting menu,the first line shows Attenuation Menu
The second line shows ATTN: XXdB
Enter the menu function key: Long press ENTER and pressagainexit,ADD SUB to execute +, - operation
B.internal compensation set,the first line is ADC Offset Menu
The second line is Offset: +/- xx
Enter the menu function key: press ADD+SUB and ENTER at the same time to exit,ADD SUB to execute +, - operation
C.automatic backlighting function: when it is no backlight, press any key to open the backlight

Package included:

1 xDigital Radio Frequency Power Meter
