Lead Time: 3-4 Weeks

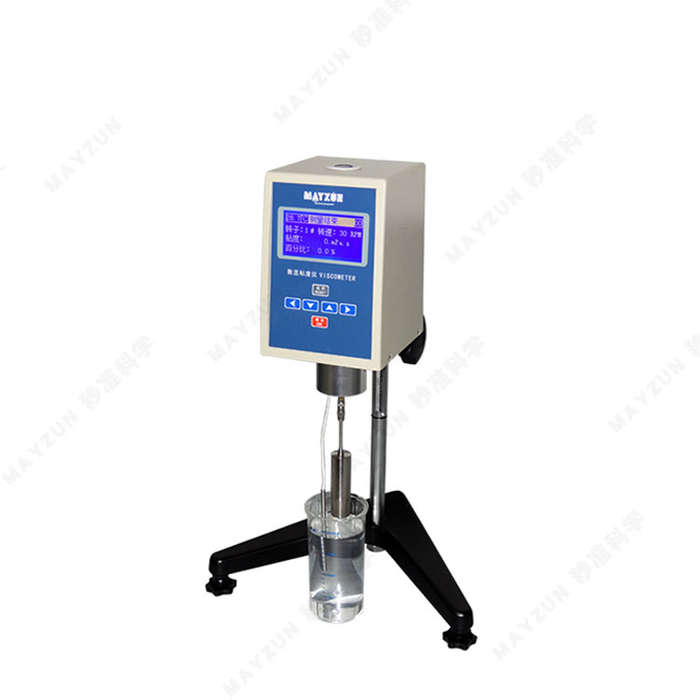

MZ-NDJ-5S Digital Rotary Laboratory Viscosity Meter Viscosimeter
MZ-NDJ-5S has been widely used to determine and measure the liquid viscosity in many applications such as grease, painting, pharmacy and adhesives sewage treatment and other industries precision electronic instruments
It is suitable for:
1. Use 16 unit microprocessor core to control electric, gearless running.
2. Blue screen LCD digital display. Can directly display viscosity, rotate speed, centigrade meter torque,
rotor number and fathomable max viscosity at current condition.
3. Meet the advanced technology of the same product overseas(RTD temperature probe is optional parts).
Model | MZ-NDJ-5S | |
Measured Range (mpa/s) | 1-100000 | |
Rotation Speed(RPM) | 6,12,30,60 | |
Number of Rotor | 1#,2#,3#,4#, 4 types (0# Rotor is for option, Measurable viscosity low to 0.1mpa/s ) | |
Reading stability cursor | The vertical bar square cursor is full, the reading displayed is basically stable | |
Measurement Accuracy | 1.0% (FS) | |
Repeatability | 0.5% | |
Work Environment | Temperature 5 to 350 .The relative humidity is no more than 80% | |
Power | The adapter is the standard supply (input 220V10% 501 Hz) | |
Overall dimensions | 370X325X280 mm | |
