Description:

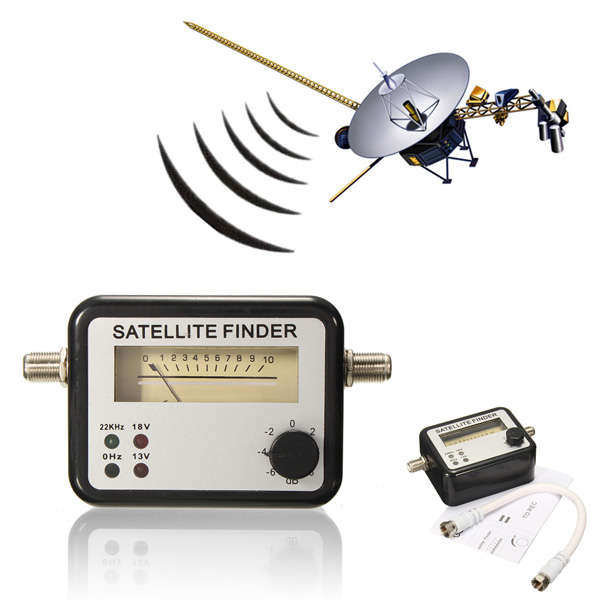

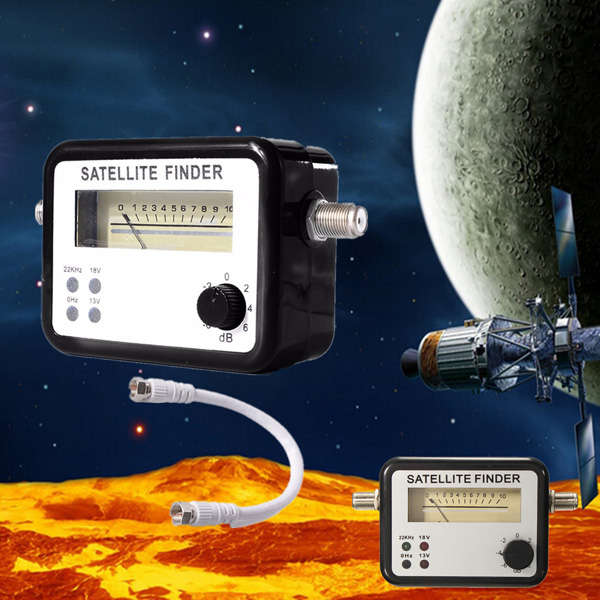

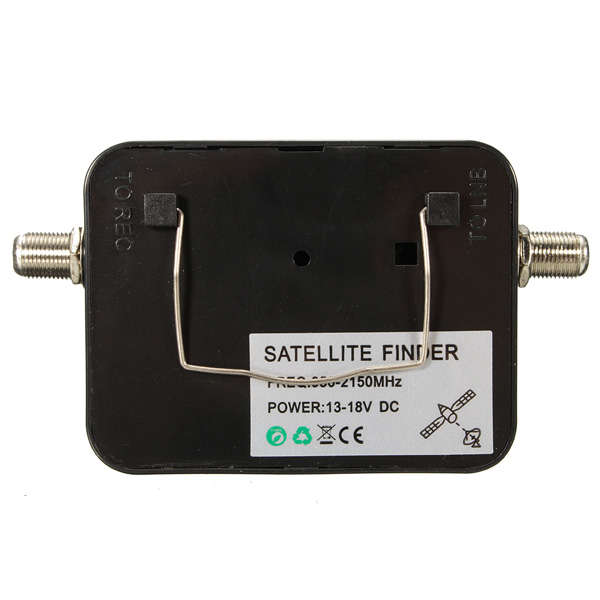

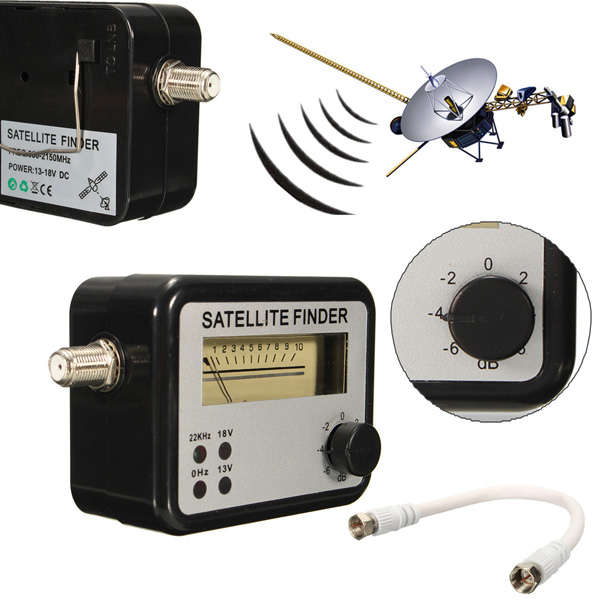

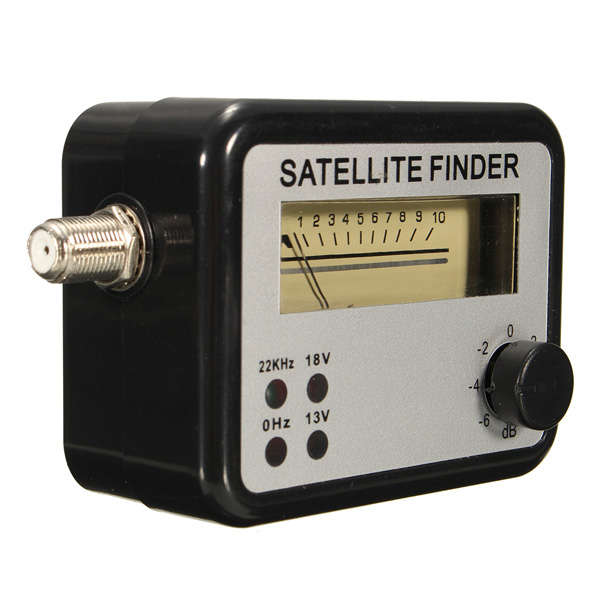

Digital Sat Satellite Signal Finder Meter Strength DIRECTV DISH TV
This digital sat is microprocessor-controlled and thus reliable and accurate. The digital sat-Finder is very sensitive and can detect the lowest signals, the strong signals (strong satellite, large plants) can for a better.Through optimal adjustment, interference can be prevented by weather conditions. Ideal for satellite installation in the home and mobile equipment (caravan, camping, boat).
Specification:
1. Input frequency: 950-2150 MHz
2. Min. input level: - 40dBm
3. Maximum input level: - 10dBm
4. Input impedance: 75 Ohm F-connector
5. Output impedance: 75 Ohm, F Connenctor
6. Betriebgsbereich: 52 - 60dB
7. Power supply: DC 13-18V
8. Dimensions: 108 x 60 x 44 mm
Working process:
1. Switch the receiver on. The digital sat turns on automatically.
2. Roughly align your incorrect on the desired satellite.
3. The SAT has a variety of signal strength 0% display (critical point)
4. Move the dish slightly vertically and horizontally. The higher the scale value of Satfinders, the better the satellite signal. The scale indicates the highest value, you can classify the signal into a smaller level button with the "ATT". Repeat the move of the dish until the maximum value is shown again and a highest buzzer sounds.
5. Check you have found on your TV device, whether the right satellite.
6. Remove the cables on the sat and again connect the LNB to the receiver.
Notes:
To avoid the full beating out the needle, you put the SAT does not directly in front of the bowl.
Please use a 5 dB attenuator, if you use an LNB (such as E.g. high gain) with more than 60dB.
If you have no satellite receiver on hand, you can connect a 13-18V DC power supply with a F-plug at the connection socket of the receiver, to take the sat in operation.
Package includes:
1 x Digital Satellite Finder
1 x F81 Connector
1 x User Manual
Details pictures:
