Description:

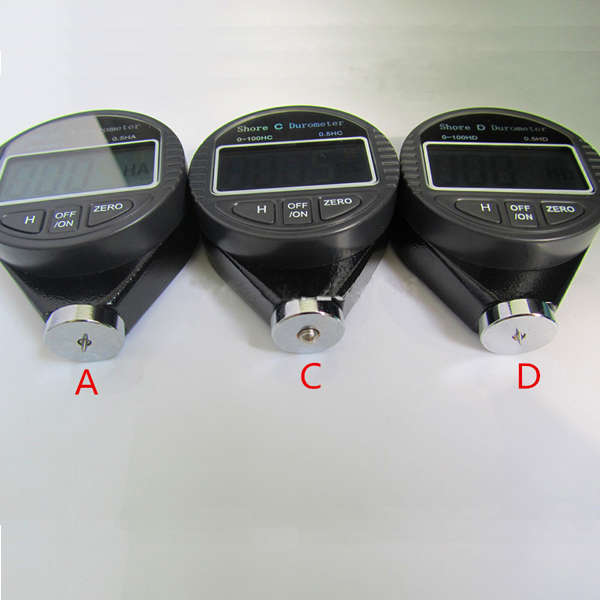

Digital Shore Durometer Digital Hardness Tester Meter Shore A/Shore C/Shore D
A- type applies to general rubber, synthetic rubber, soft rubber, poly-resin, leather, wax, etc.
C-type applies to rubber and contains the tiny hole material that that the vesicant is made in being used for plastic
D-type applies to general hard rubber, hard resin, acryl, glass, thermoplastics, printing plates, fibres, etc.
Features:
1. ON/OFF Switch.
2. Holding measured display values.
3. Zero setting.

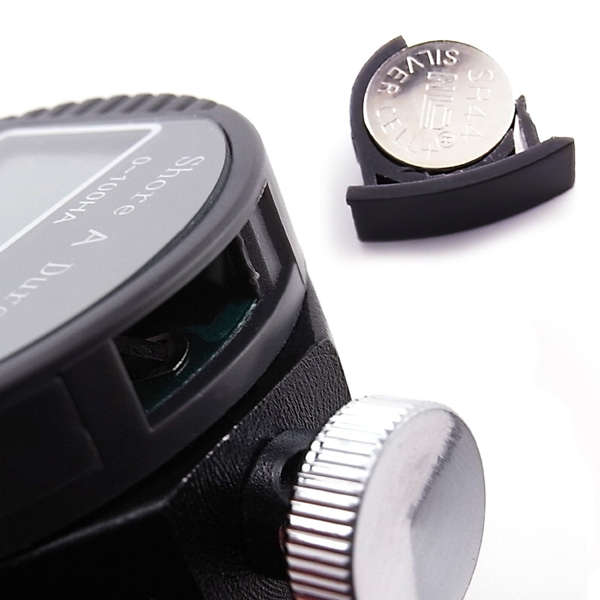

4. Runs on by one 1.5 V cell battery.
Specification:
Type Item No. Indentor shape Range Resolution

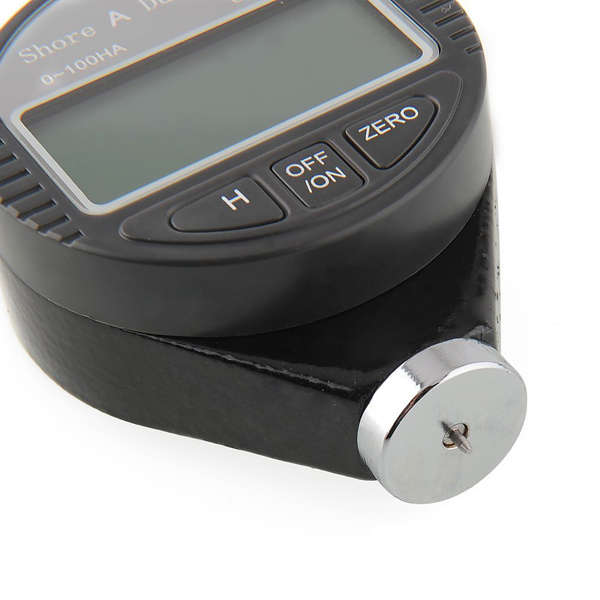

TypeA MDT-10A Flat cone point (0.79 mm) 0-100HA 0.5HA
35º Included Angle
TypeC MDT-10C 2.5mm Spherical 0-100HC 0.5HC
Sharp cone point (SR0.1mm)

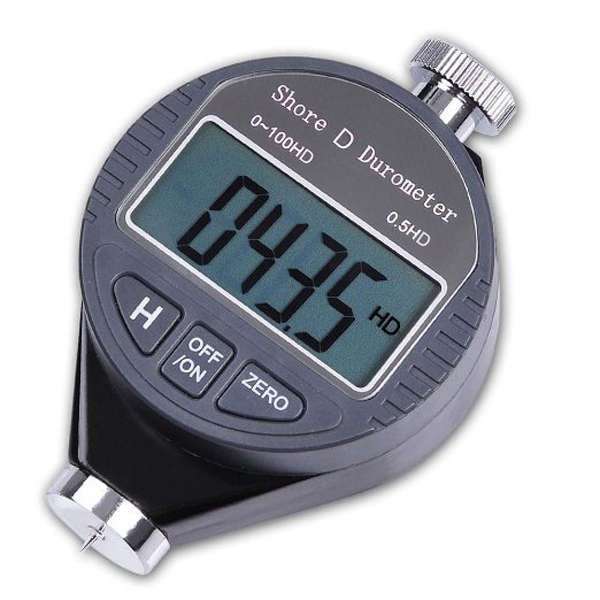

TypeD MDT-10D 30º Included Angle
0-100HD 0.5HD
Package included:1 x Digital Shore Durometer (
Shore A, Shore C, Shore D for your optional~)
Details pictures:
