Digital Signal M3663.03B DVB-T2 Universal LCD TV Controller Driver Board TV/PC/VGA/HDMI/USB+7 Key Bu

New 2 were available
Indicative market price: R740.35
R548.41
26% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1760162[ICS]
Bob Shop ID
545111152


Note: M3663.03B is not support Dolby Audio AC3 function.

Feature:

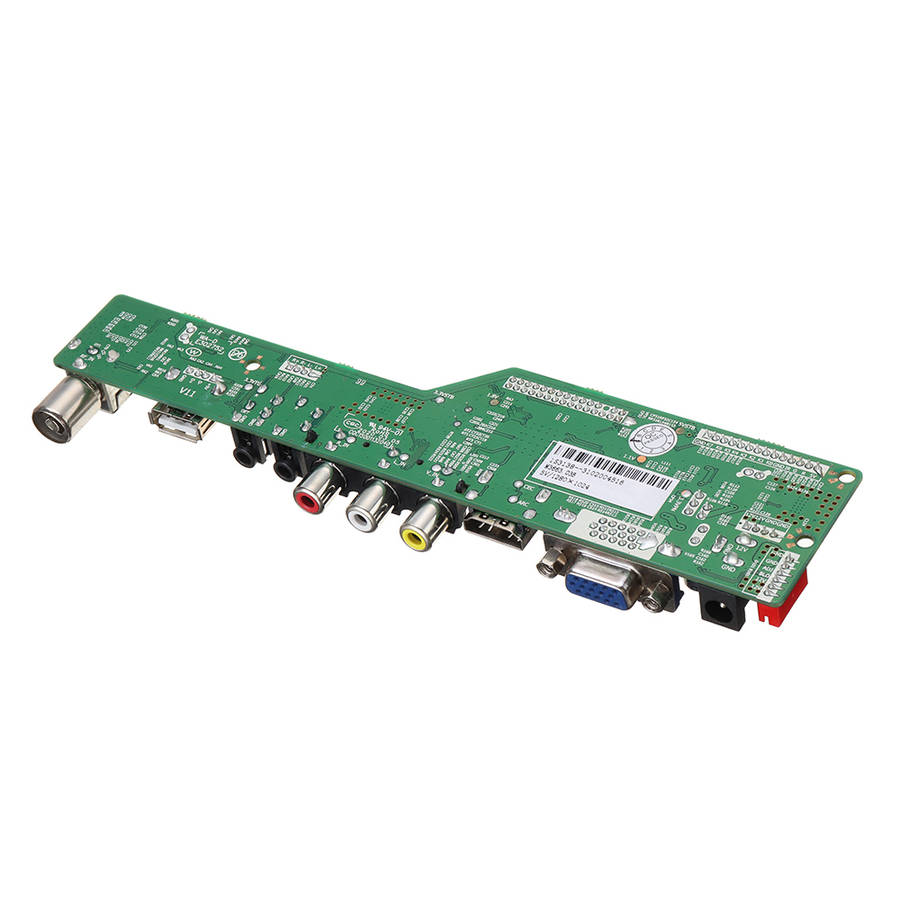

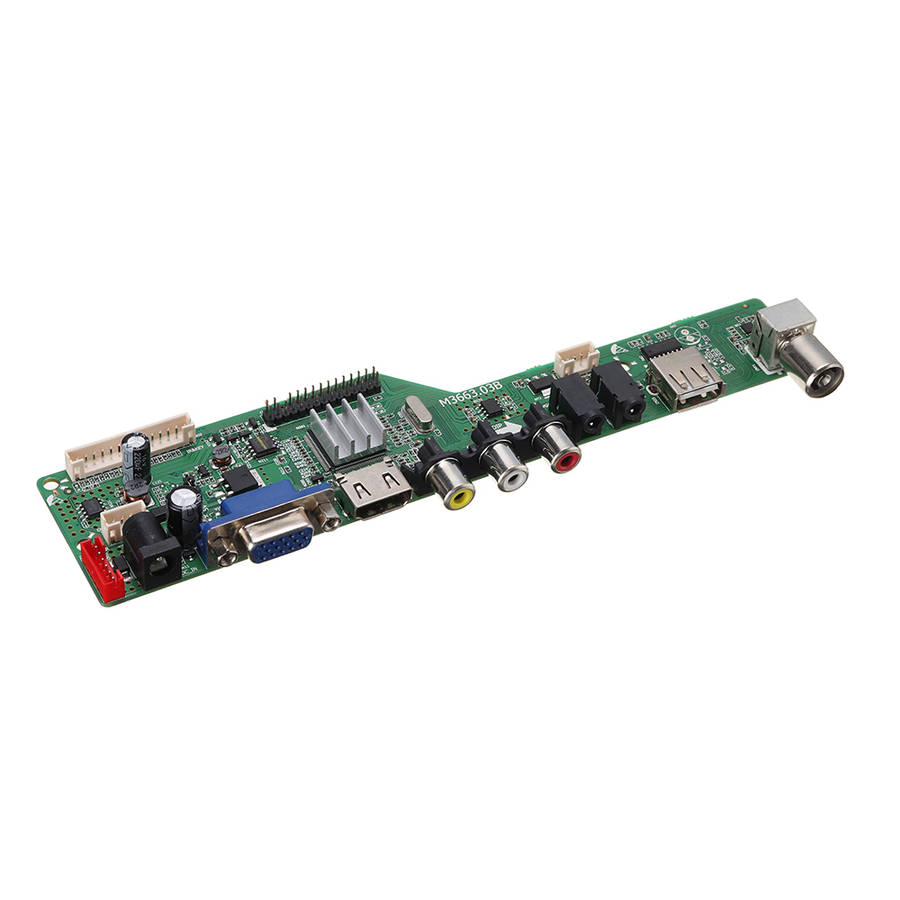

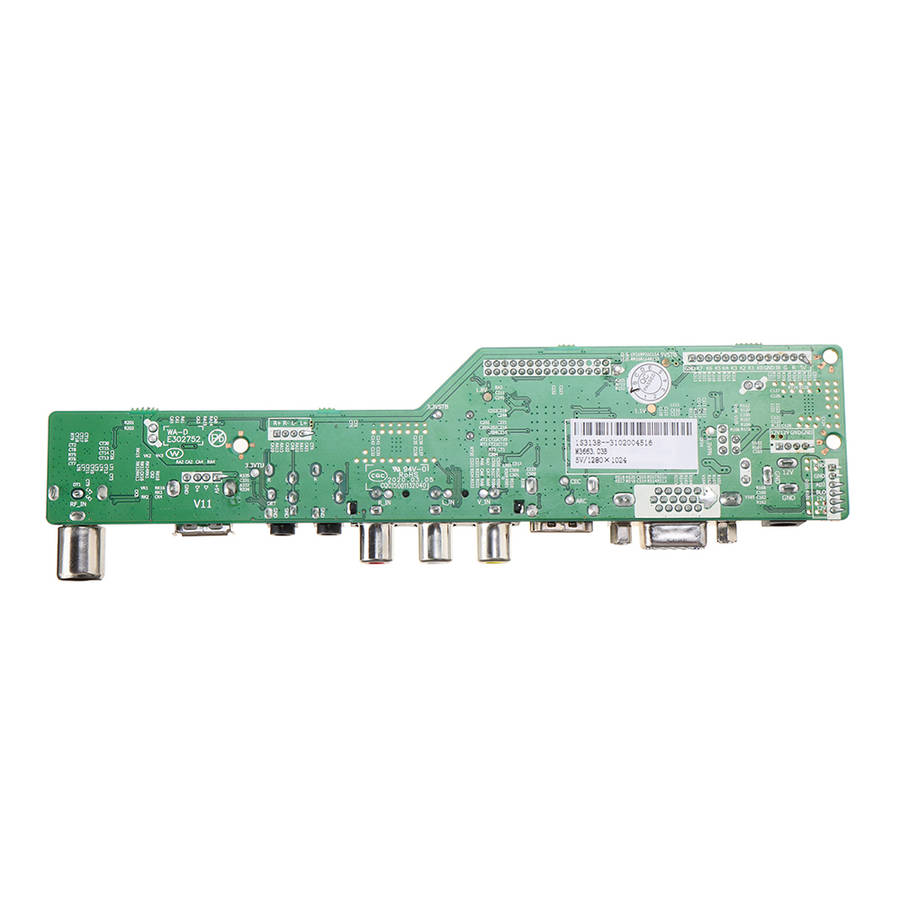

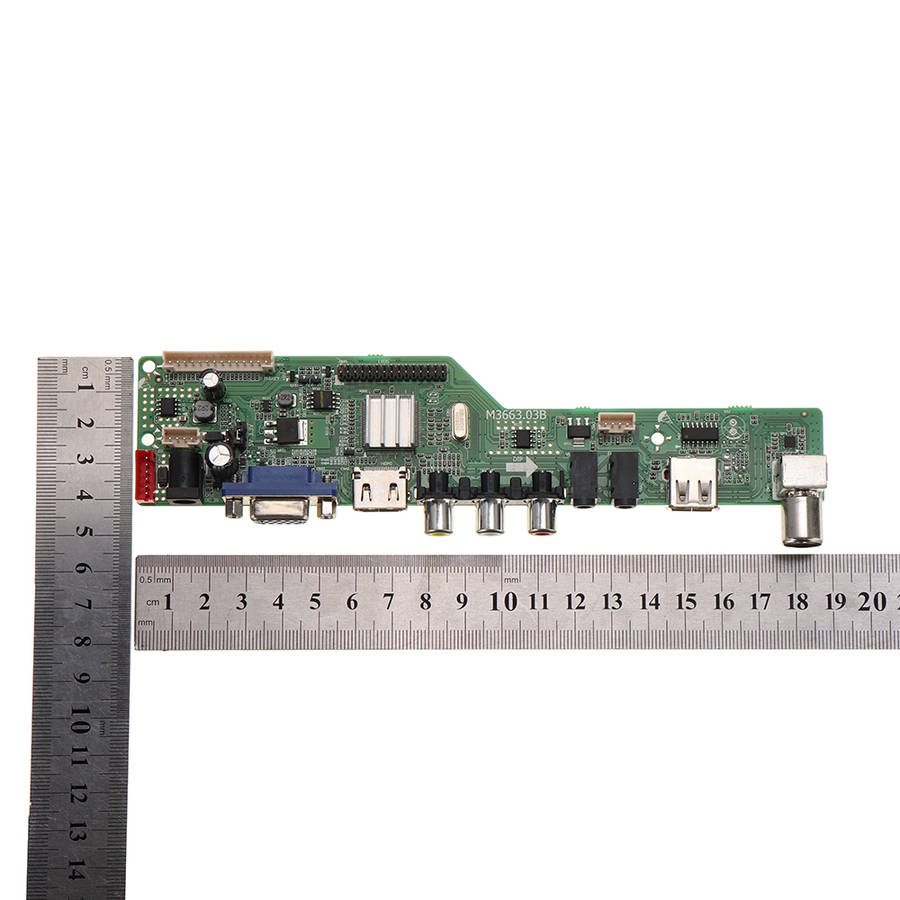

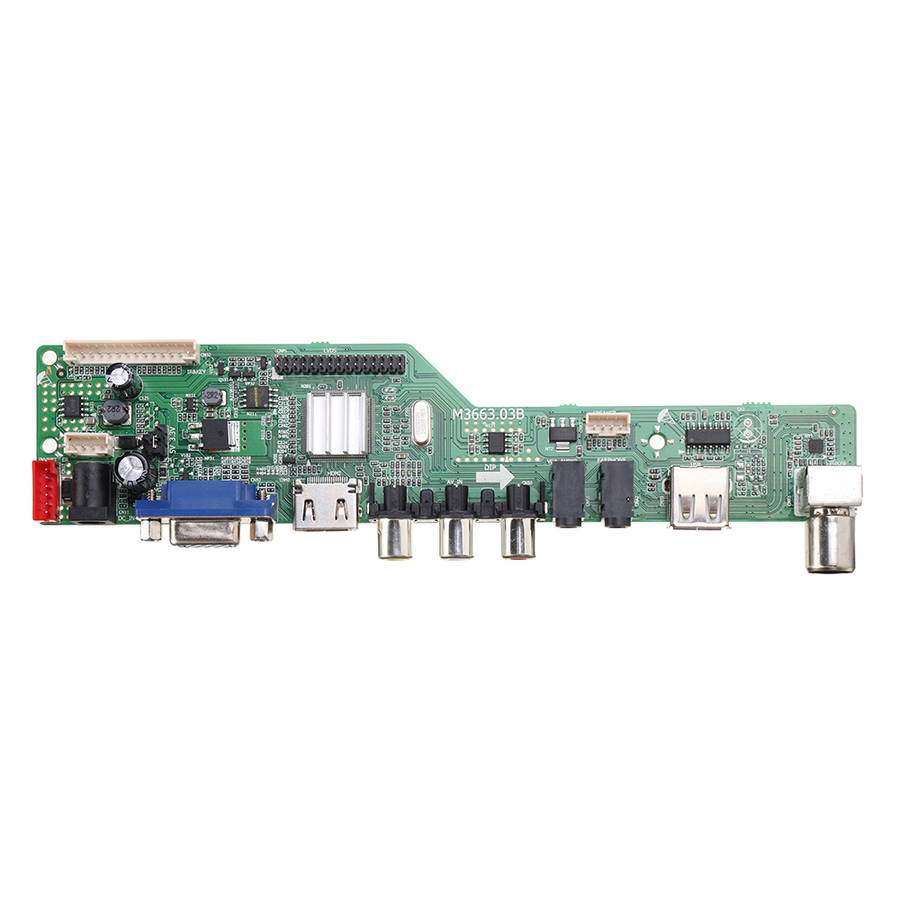

1. M3663.03B is a multi-purpose and energy-efficient LCD TV control board with single/dual 8bit LVDS interface, the resolution of LCDTV panel is up to 1920*1080.
2. M3663.03B supports DVB-T2/DVB-T/DVB-C and analog TV front-end (PAL/SECAM/NTSC) demodulator. HDMI, USB , PC-RGB, Earphone output, AV1 video and audio input an audio class D amplifier which supports 2x3W (4ohm) outputs is built in.
3. M3663.03B Software upgrade and multimedia playback function are applicable with the USB slot.
4. M3663.03B power supports DC12V input. It fits for 28〞panel.

Specification:

LCD Panel: TFT-LCD, LED backlight LCD
Resolution: up to 1920*1080
Interface: single/dual 8bit LVDS
Panel power: 12V/5V/3.3V
OSD Language: English/French/Spanish/Russian/German/Italian/Turkish/Portuguese
Relative Humidity: ≤80%
Storage Temperature: -10~+60℃
Operation Temperature: 0~+40℃

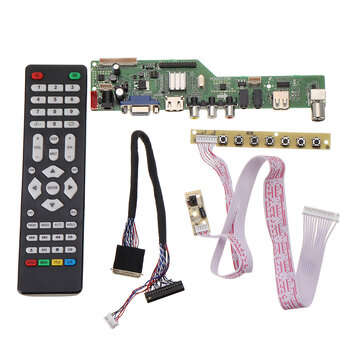

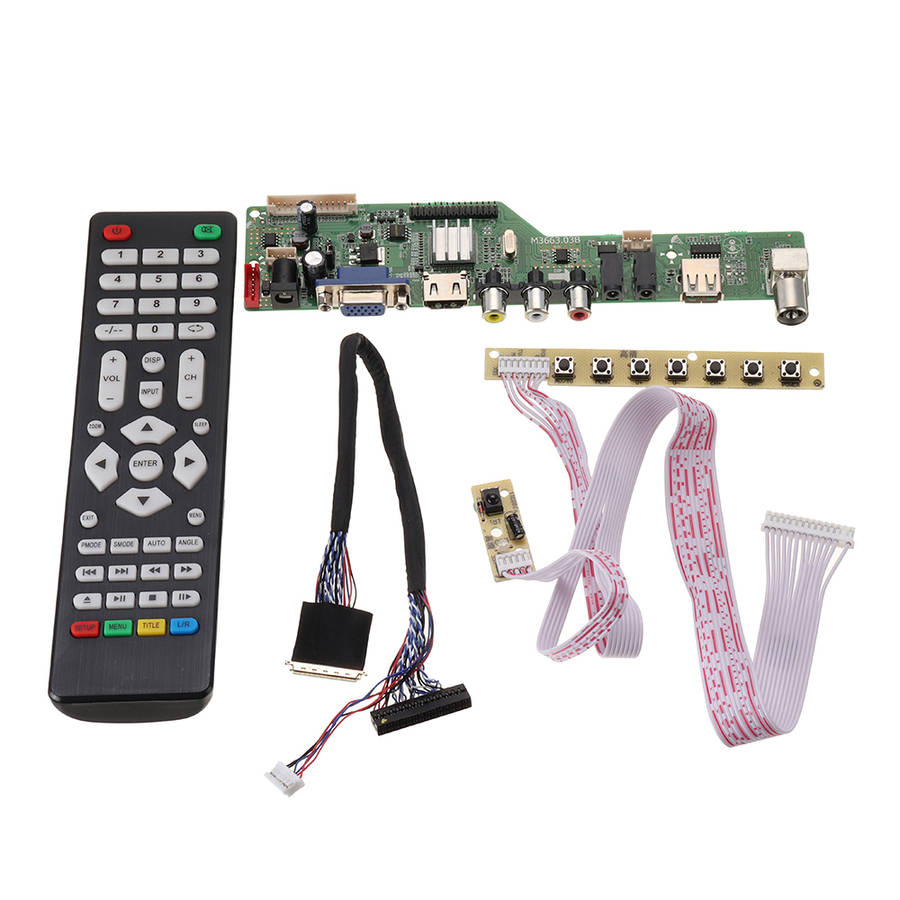

Package includes:

1 x Driver board
1 x English Remote control (battery not includes)

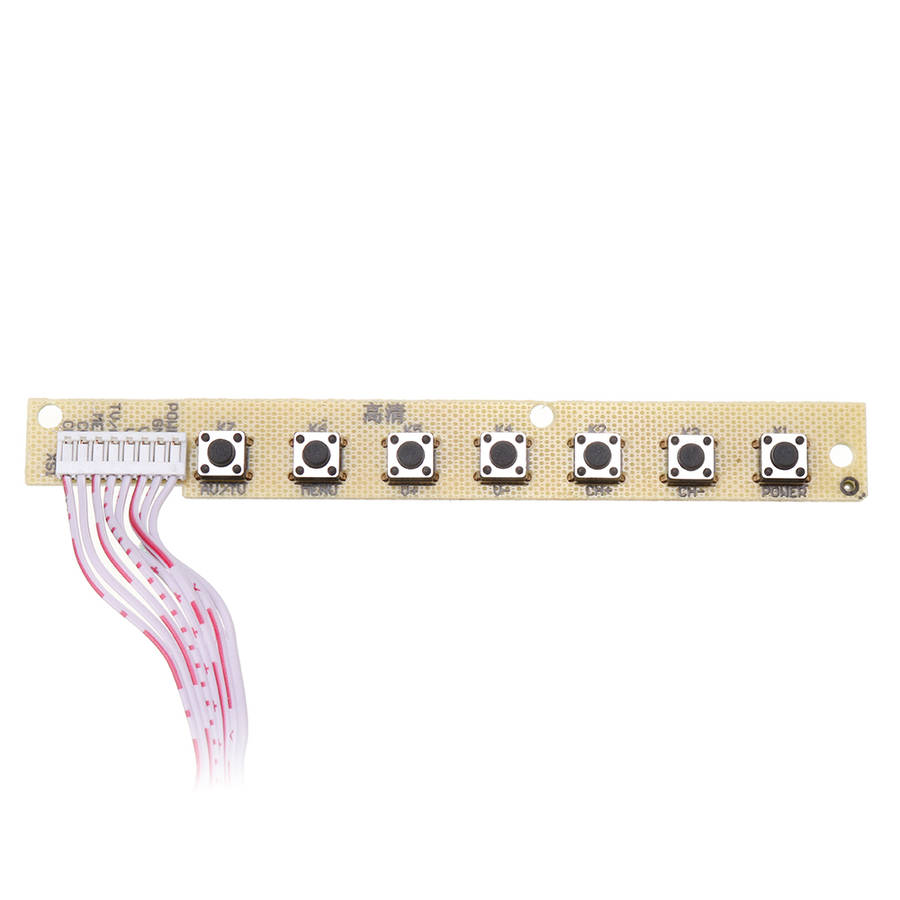

1 x 7 key button

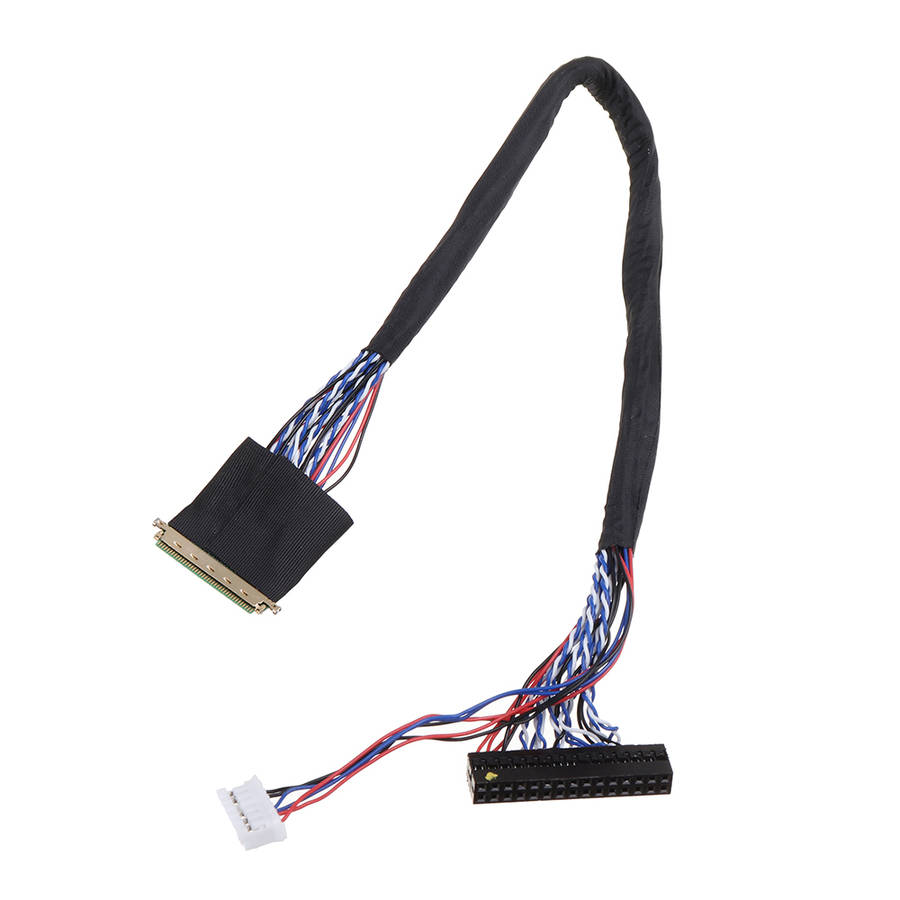

1 x 2ch 6bit 40pins lvds cable 250mm length (You can search for the screen cable you need on banggood, for example: 2ch 6-bit, categories select "Module Board".)
