UPGRADE AND FINE TUNE YOUR VEHICLE WITH FACTORY HEAD UNIT AND SPEAKERS AS WELL AS PREMIUM AFTER MARKET AUDIO UPGRADES. BUILT IN UDISC USB FOR HIGH RES LOSSLESS AUDIO PLAY BACK
SIMPLIFIED PC SOFTWARE FOR QUICK EFFORTLESS FINE TUNNING, DOWN LOADABLE FROM WEBSITE BELOW, EASY TO USE ANDROID APP DOWN LOADABLE FROM APP STORE FOR WIRELESS TUNING ONLY ON ANDROID MOBILE PHONES/TABLET PC. ENJOY BUILT IN MEDIA PLAYER SUPPORTING HI RES INCLUDE IN APP.

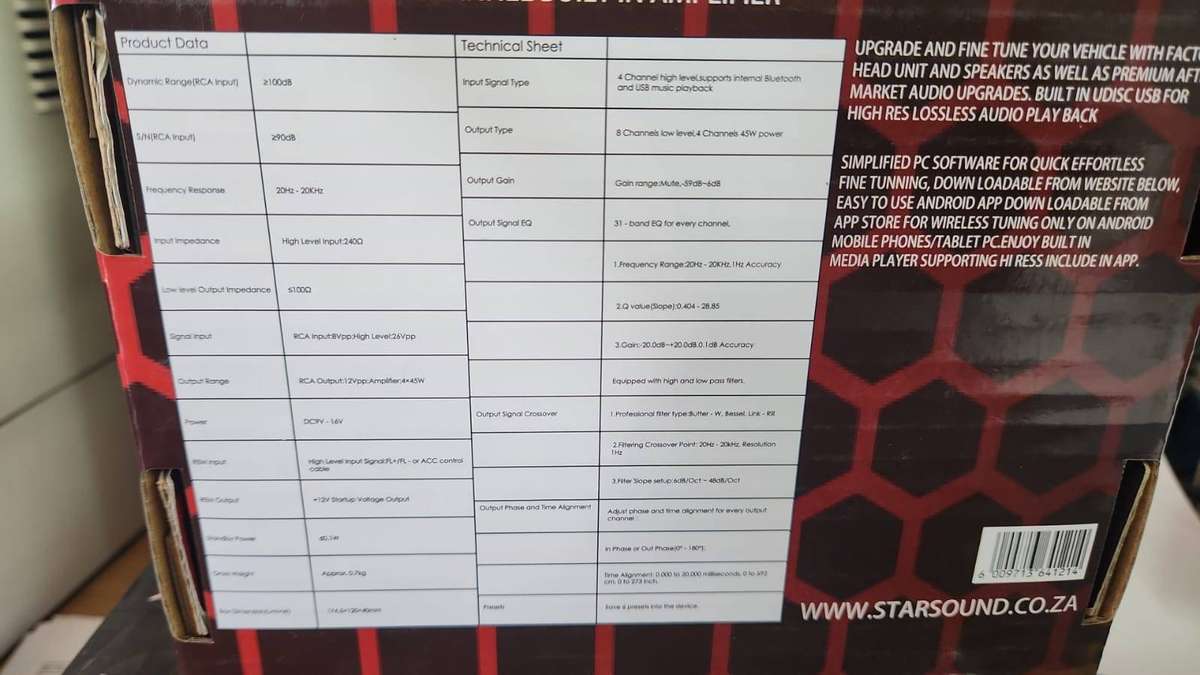

Product Data
| Dynamic Range (RCA Input) | 100dB |
|---|---|
| S/N (RCA Input) | 90dB |
| Frequency Response | 20Hz - 20KHz |
| Input Impedance | High Level Input: 24 |
| Low level Output Impedance | 100 |
| Signal Input | RCA Input: 8Vpp; High Level: 26Vpp |
| Output Range | RCA Output: 12Vpp; Amplifier: 4×45W |
| Power | DC 9V - 16V |
| Start Input | High Level Input Signal: FL/FR - or ACC control cable |
| Main Output | +12V Startup Voltage Output |
| Standby Power | 0.1W |
| Gross Weight | Approx. 0.7kg |
| Size (Dimension L×W×H) | 174.5×129×46mm |
Technical Sheet
| Input Signal Type | 4 Channel high level, supports internal Bluetooth and USB music playback |
|---|---|
| Output Type | 8 Channels low level, 4 Channels 45W power |
| Output Gain | Gain range: Mute, SPDB - 6dB |
| Output Signal EQ | 31-band EQ for every channel |
| 1. Frequency Range | 20Hz - 20KHz; 1Hz Accuracy |
| 2. Q value (Slope) | 0.404 - 28.85 |
| 3. Gain | ±20.0dB; 0.1dB Accuracy |
| Output Range | Equipped with high and low pass filters |
| Output Signal Crossover | 1. Professional filter type: Butter - W, Bessel, Link - RII |
| 2. Filtering Crossover Point: 20Hz - 20kHz, Resolution 1Hz | |
| 3. Filter Slope setup: 6dB/Oct - 48dB/Oct | |
| Output Phase and Time Alignment | Adjust phase and time alignment for every output channel |
| In Phase or Out Phase (0°, 180°) | |
| Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692cm (0 to 273 inch) | |
| Presets | Save 6 presets into the device |
