Description :

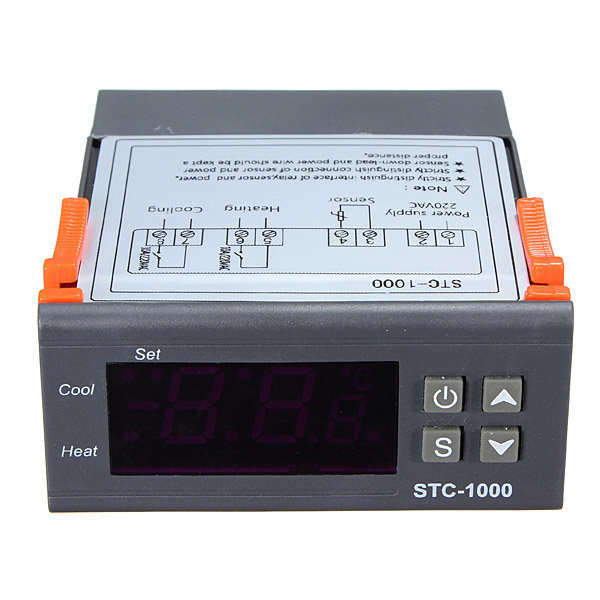

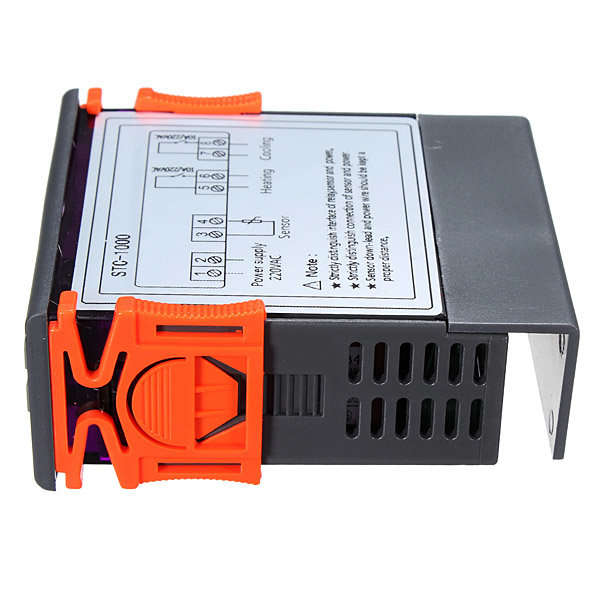

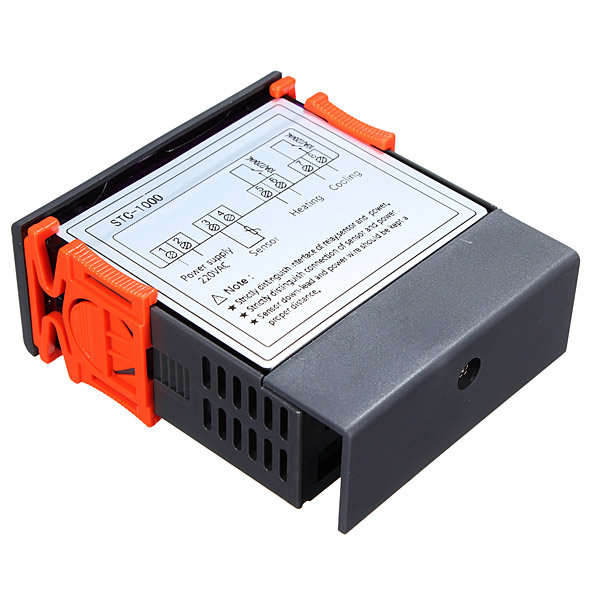

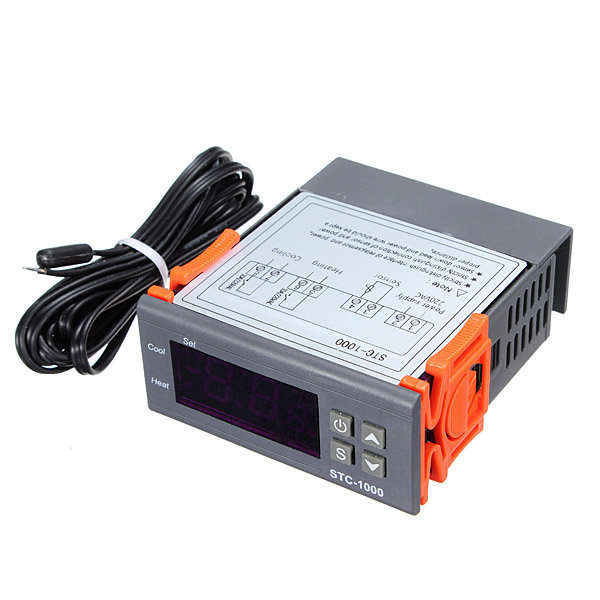

Digital STC-1000 220V All-Purpose Temperature Controller Thermostat With Sensor

Features :

Switch the modes between cool and heat;
Control temperature by setting the temperature setting value and the difference value;
Temperature calibration;
Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.

Specification and size :

Front panel size : 75(L) x 34.5(W)(mm)
Mounting size : 71(L) x 29(W)mm;
sensor length : 1m (include the probe).
Product size75(L) x 34.5(W) x 85(D)mm;

Technical Parameters :
Temperature measuring range : -50 - 99°C;
Resolution : 0.1°C;
Accuracy : ±1°C (-50 - 70°C);
Sensor error delay : 1 minute
Power supply : 220VAC±10%, 50/60Hz;
Power consumption : ≤3W;
Sensor : NTC sensor (1PC);
Relay contact capacity : Cool 10A/250VAC;Heat 10A/250VAC;
mbient temperature : 0 - 60°C;
Storage temperature : -30 - 75°C;
Relative humidity : 20% - 85% (No condensate).

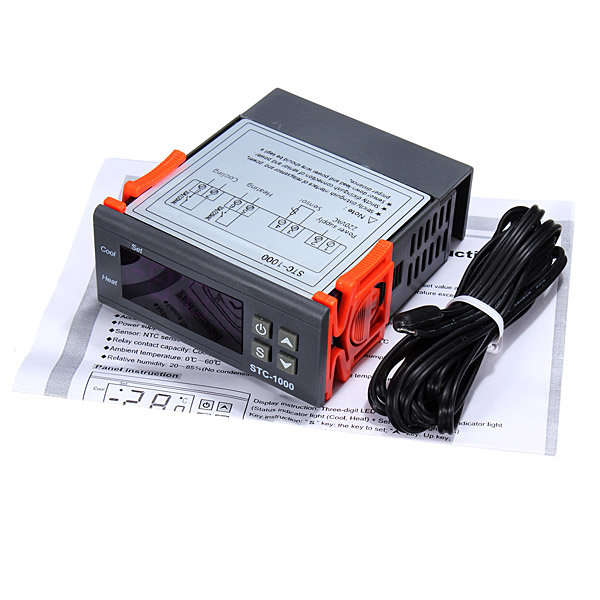

Package includes :

1 x 220V Mini Digital Temperature Controller Thermostat
1 x Temperature sensor probe with 1M cable
1 x Instruction Manual
