Digital STC-1000 220V All Purpose Temperature Controller Thermostat With Sensor

Description:

Digital STC-1000 220V All-Purpose Temperature Controller Thermostat With Sensor

Features :

Switch the modes between cool and heat;
Control temperature by setting the temperature setting value and the difference value;
Temperature calibration;
Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.

Specification and size:

Front panel size: 75(L) x 34.5(W)(mm)
Mounting size: 71(L) x 29(W)mm;
sensor length: 1m (include the probe).
Product size75(L) x 34.5(W) x 85(D)mm;

Technical Parameters:
Temperature measuring range: -50 - 99°C;
Resolution: 0.1°C;
Accuracy: ±1°C (-50 - 70°C);
Sensor error delay: 1 minute
Power supply: 220VAC±10%, 50/60Hz;
Power consumption: ≤3W;
Sensor: NTC sensor (1PC);
Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
mbient temperature: 0 - 60°C;
Storage temperature: -30 - 75°C;
Relative humidity: 20% - 85% (No condensate).

Package includes:

1 x 220V Mini Digital Temperature Controller Thermostat (Find the 110V one in SKU240576)
1 x Temperature sensor probe with 1M cable
1 x Instruction Manual

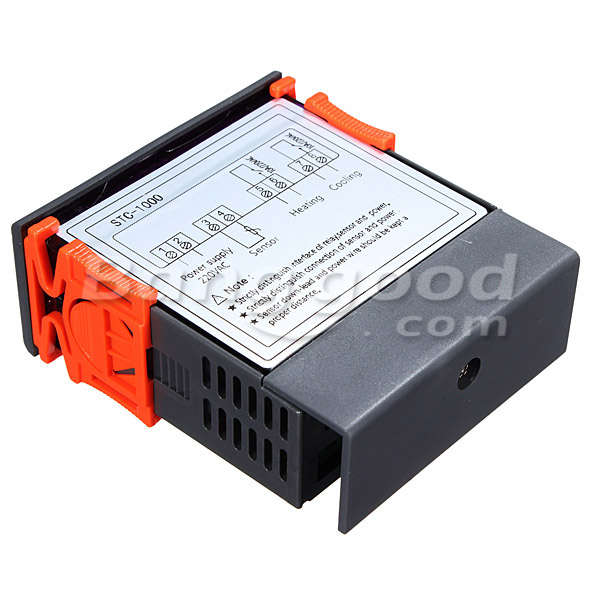

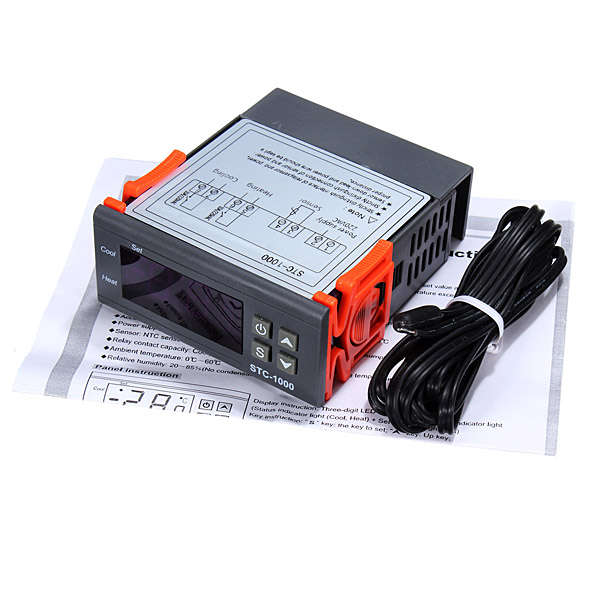

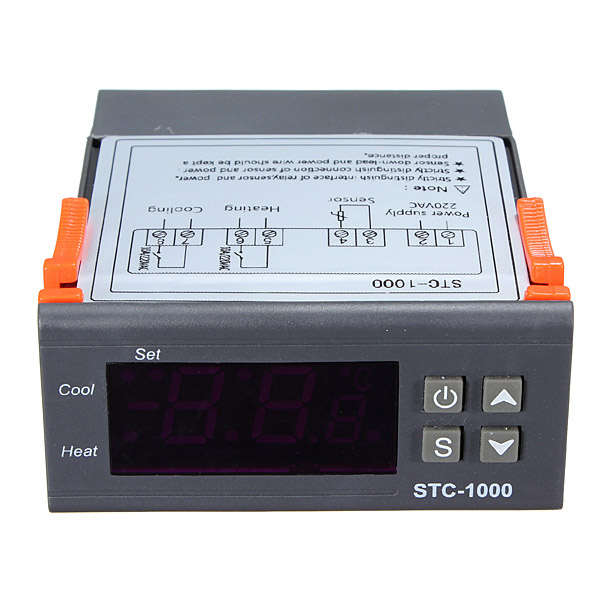

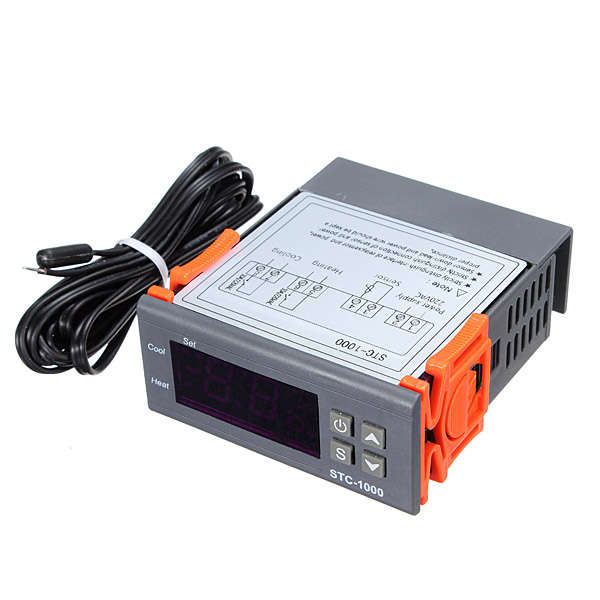

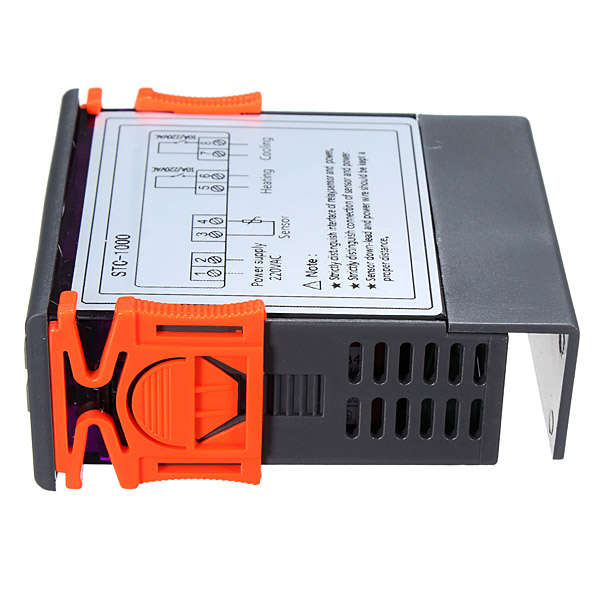

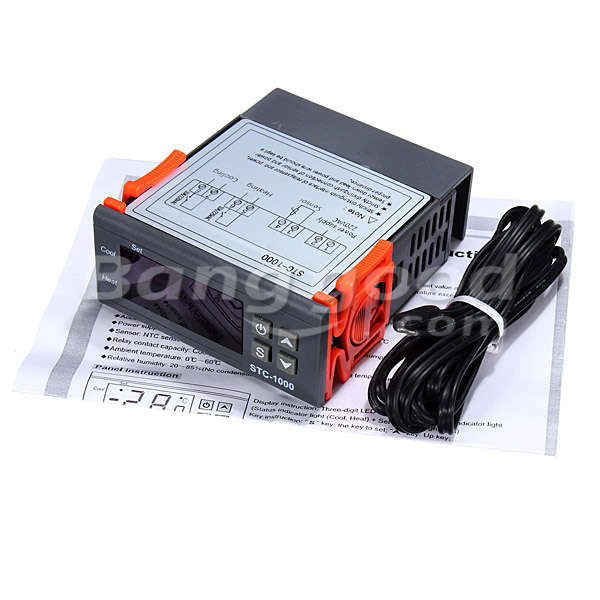

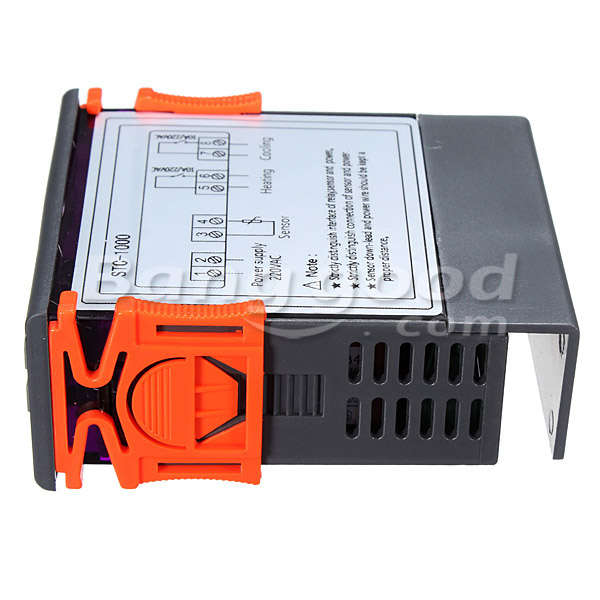

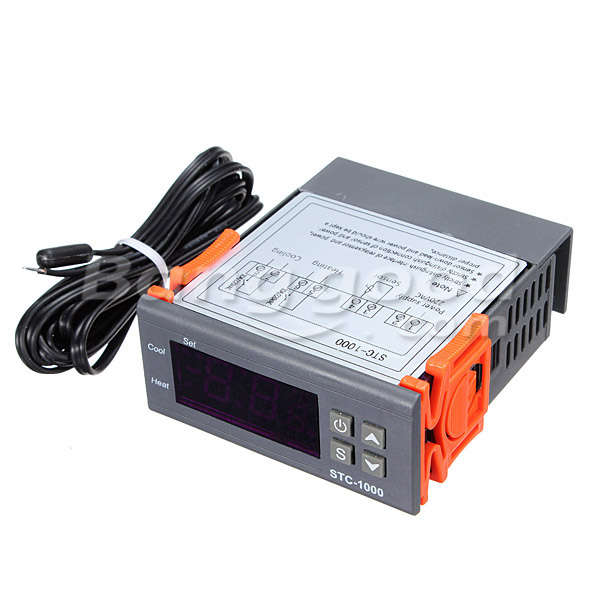

Detailed pictures:
