Specifications:

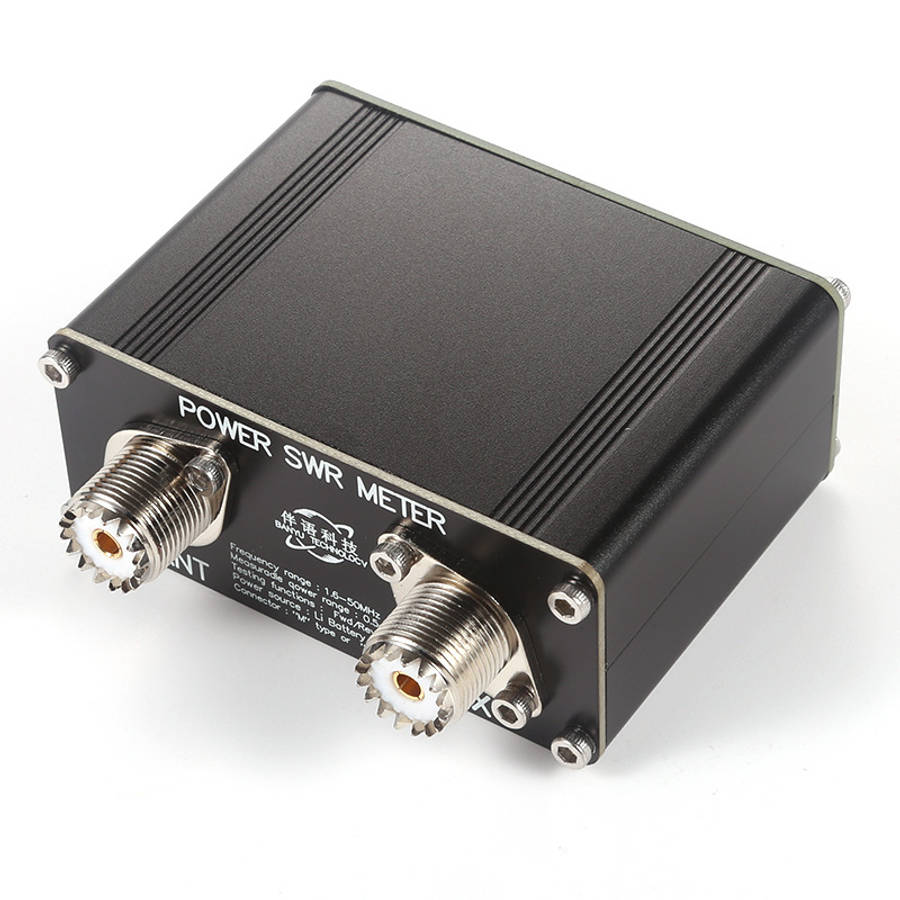

Product Name: Digital SWR Power Meter
Frequency Range: 1.6-50MHz
Power Measurement Range: 0.5W-150W
SWR Measurement Range: 1.0-99.9
Insertion Loss: <0.12dB
Insertion SWR: 1.02
Measurement Accuracy: Better than ±5%
SWR Alarm: 2.0 (with disable function)
RF Connector Type: SL16-M or N (default is M)
Display Content: Forward Power; SWR; Antenna Power; Efficiency
Power Supply: Built-in 3.7V/1000mAh rechargeable lithium battery or USB Type-C
Shutdown Power Consumption: <0.1uA
Data Communication: USB Type-C
Firmware Upgrade: Supported
Overall Size: 88 x 38 x 64mm / 3.5 x 1.5 x 2.5 inches (excluding protruding parts)
Features:
High Accuracy: Ensures measurement precision better than ±5% across the 0.5W-150W power range.
Multiple Display Modes: Five interface display modes can be selected with a single button press.
SWR Alarm: Buzzer alarm when SWR exceeds 2.0, providing immediate feedback.
Firmware Upgrade: USB firmware upgrades without a programmer, keeping your device up-to-date.
Long Battery Life: Built-in lithium battery provides over 50 hours of use on a full charge.
Package Included:
1 x SWR Power Meter
