Digital Temperature Controller Microcomputer Thermostat Switch with Cable - XH-W3001

Digital Temperature Controller Microcomputer Thermostat Switch with Cable - XH-W3001

Product Description

Always wanted a digital control temperature device? this is a must in your toolbox.

-Temperature measurement range: - 50 ~ 110C

-Temperature control range: - 50 ~ 110C

-Temperature measuring accuracy: plus or minus 0.2 C

Temperature control precision: plus or minus 0.1 C

-Measuring input: NTC10K L = 1 meters waterproof probe

-Input power: according to the classification of choice

-Output power: according to the classification of choice

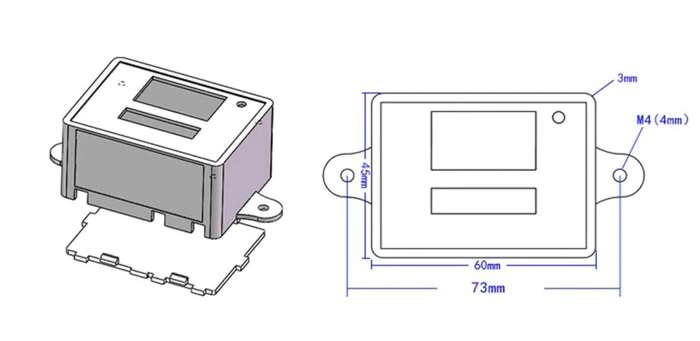

-Appearance size: 60 * 45 * 31 mm

-This Temperature Controller comes with a 1meter waterproof sensor

-This item sensor uses a 2P plug, very easy to change, you also can choose a more long sensor

Product Features

Heating/refrigeration modes, users can set the start/stop temperature freely; With large and clear LED display for better readability

Easy to use: Three buttons for easy operation, to set start temperature, stop temperature, correct temperature, delay start time.

Two Work Mode: Heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature)

Application: Waterproof sensor, can be used to detect water or other liquid non-corrosive. objects temperature, for aquaculture, ornamental fish, and other

Operation Instructions:

Set the start temperature; press the up button on one time to show the starting temperature, press the upper key for about 3 seconds, start temperature and digital flicker, and set the required temperature value through the upper and lower keys.

Set the stop temperature: press the next button to show the stop temperature, press the key for about 3 seconds, stop the temperature, digitally flicker, and check the required temperature value through the upper and lower keys.

Restore factory setting: under the condition of electricity, at the same time hold down the upper and lower keys, the digital tube display 888 then automatically jump to the detection temperature, can restore the factory setting;

Start temperature < stop temperature = heating mode

Start temperature > stop temperature = refrigeration mode

Prompt:

When setting up the heating mode, if the temperature value is set upside down, the output indicator will not be lighted and the load will not work. If the above situation occurs after the completion of the setup, we can check whether the temperature value of the set is reversed.

• Model: XH-W3001
• Output Type: Direct Output
• Output capacity:10A max
• Power Supply: DC12V,DC 24V,DC 220V
• Load power:120/240/1500W
• Temperature Measurement Range: -50 C~110 C
• Temperature Control Range: -50 C~110 C
• Temperature Control Precision: 0.1 C
• Input measurement: NTC10K waterproof probe L = 1 meter waterproof

How to set

1. Press the up button to show the starting temperature.

2. Long press the UP button the temperature display Flashing, Press the UP or Down button.

3. Set the start temperature value.

4. Press the Down button to show the Stop temperature.

5. Long press the Down button the temperature display Flashing, and press the UP or Down.

6. Button Set the stop temperature value
