Tesla meter is a portable, multifunctional magnetic field measuring instrument equipped with high sensitivity, low drift hall sensor, and the application of advanced digital signal processing technology, suitable for measuring surface magnetic field of permanent, remanence of mechanical parts, magnetic separator or iron remover, etc. It can be used as a basic magnetic parameter measuring instrument in magnetic material manufacturers and companies, mechanical manufacturing enterprises, scientific research institute in colleges and universities.
Features:
Three types of accuracy for option: Level 1, Level 2 and Level 5 for different magnetic field measurement situations.
With high sensitivity, low drift hall sensor, and the application of advanced digital signal processing technology.
0-2000mT (20000Gs) wide measurement range. 2 magnetic field units for conversion: mT (mtr), Gs (Gauss), 1mT=10Gs.
With automatic range switching, one-click zero, maximum value retention function.

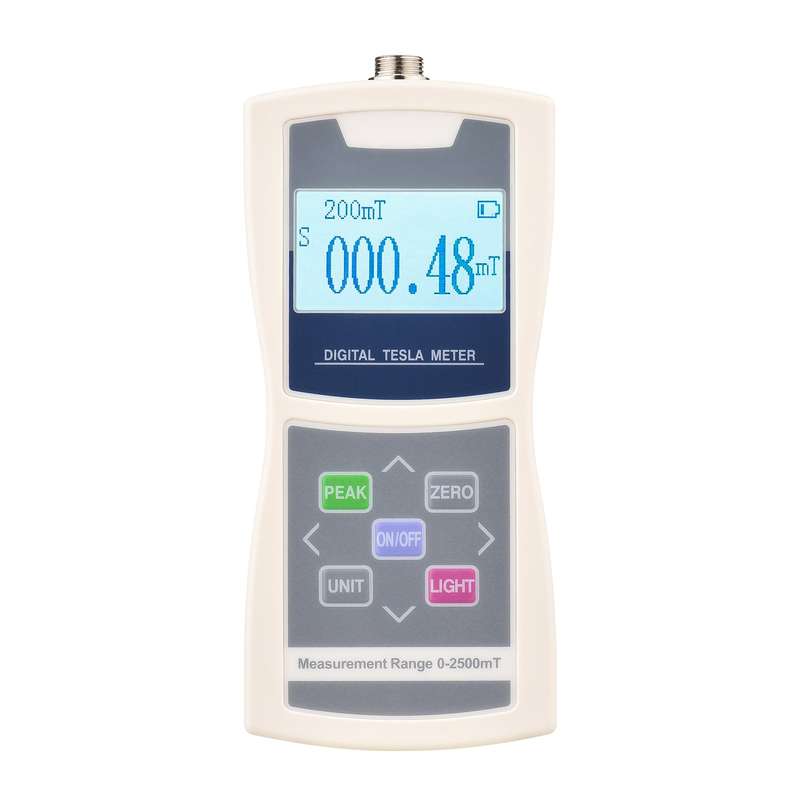

Digital screen with backlight enhances reading experience no matter in the day or at night.
Battery powered (not included), low power consumption. Energy-saving, about 5min automatic shutdown function.

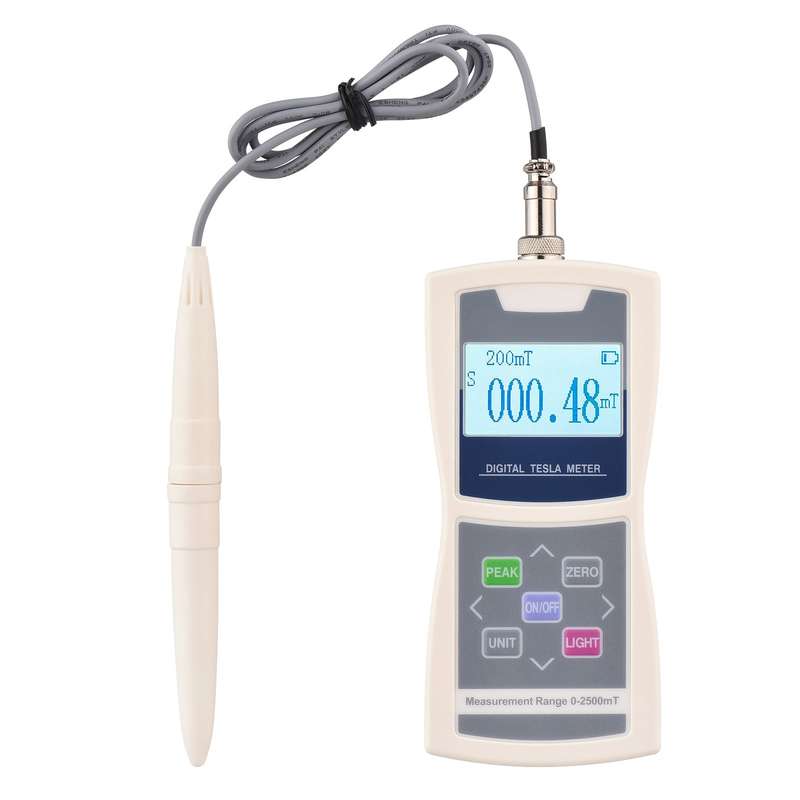

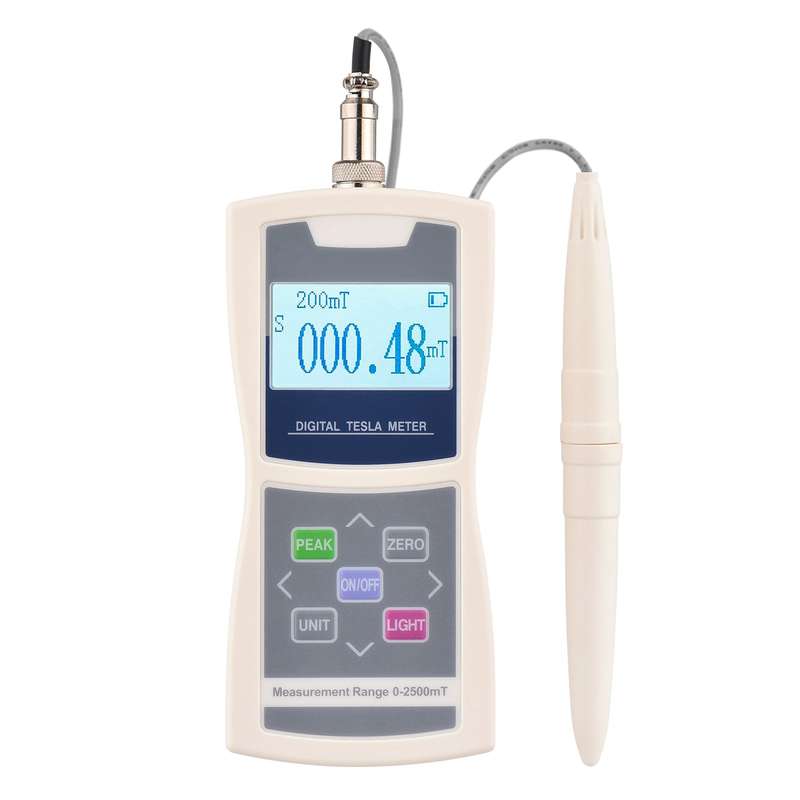

Compact and lightweight, easy to carry with a plastic box. Comes with standard radial Hall probe.
Note:
1. The mark on the product is 2500mT for the reason that its maximum measurement range is 2500mT, but for precise measurement it's 2000mT.
2. For more details, please read the user manual carefully.
3. Size and color may be slightly different because of manual measurement and different light conditions. Thanks for understanding.
Specifications:
Accuracy Level: Level 1/ Level 2/ Level 5 (Optional)
Level 1: ￂﾱ1.0%
Level 2: ￂﾱ2.0%
Level 5: ￂﾱ2.0% (0-1000mT), ￂﾱ5.0% (1000-2000mT)
Color: Ivory
Material: ABS
Auto Range: 200mT (2000Gs), 2000mT (20000Gs)
Load Division Value: 0.01mT (1Gs), 0.1mT (1Gs)
Power Supply: 9V 6F22 Battery (Not included)
Working Environment: 0~50￢ﾄﾃ, 20-85%RH without condensation
Storage Environment: -20~70￢ﾄﾃ, 85%RH without condensation
Item Size: 160 * 75 * 34mm / 6.30 * 2.95 * 1.34in
Probe Length: 17cm / 6.69in
Wire Length: about 1m / 39.4in
Item Weight (without battery): 226g / 7.95oz
Package Size: 23 * 19 * 5cm / 9.06 * 7.48 * 1.97in
Package Weight: 546g / 1.20lbs
Package List:
1 * Tesla Meter
1 * Hall Probe
1 * Screwdriver

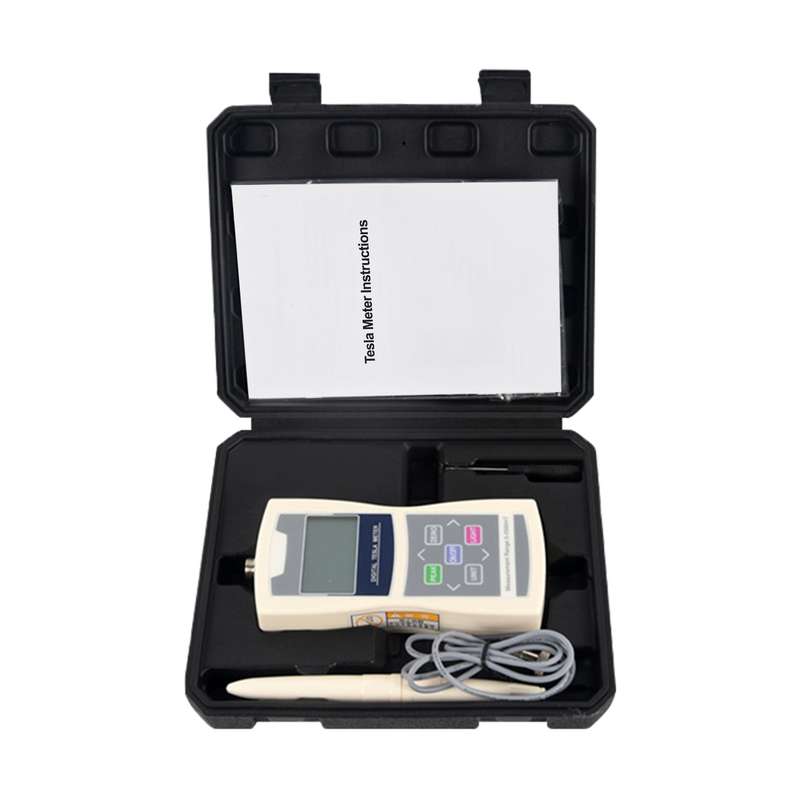

1 * Plastic Box
1 * User Manual (English)
