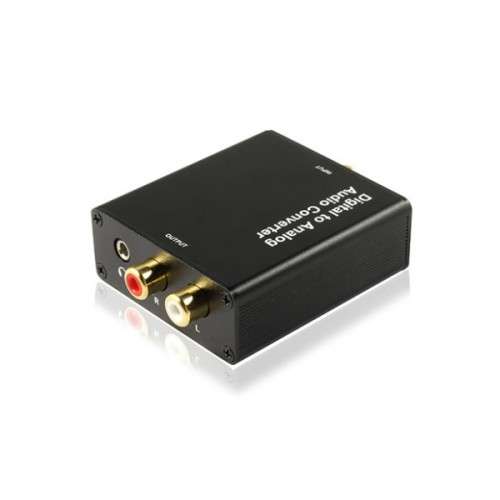

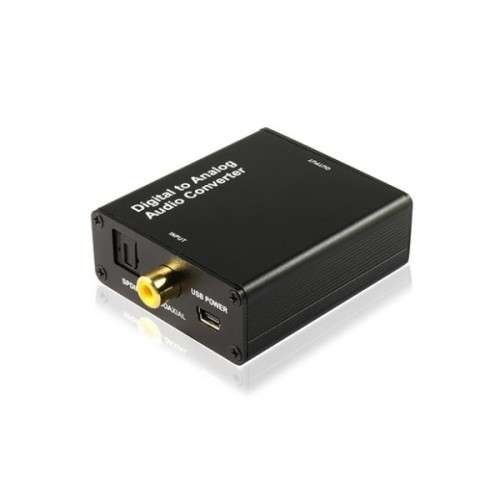

Digital to Analog Audio Converter

Digital to Analog Audio Converter

The Digital to Analog Audio Converter is designed for either home or professional audio applications. It converts Toslink / SPDIF or Coaxial digital audio signal to analog L/R or 3.5mm audio. The convertor can support an external device such as an amplifier via standard RCA-style L/R jacks, and a stereo headphone via its 3.5mm at the same time.

Product Features:

• Converts SPDIF Optical or Coaxial digital PCM audio input to analog stereo L/R RCA and 3.5mm Cable outputs simultaneously
• Supported sample rates including 32kHz 44.1kHz, 48kHz, 96kHz and 192kHz, up to 24-bit resolution
• Ultra low jitter and high fidelity design using new receiver & D/A converter chips
• Auto sensing input selection with priority given to SPDIF; disable / disconnect SPDIF input for coaxial Input application

Specifications:

Input Audio:  Coaxial or Toslink digital audio

Output Audio: L/R audio or 3.5mm

Input audio connector: Toslink, 1XRCA(Coaxial)

Output audio connector: 2XRCA(R/L), 3.5mm

Sampling rate: 32, 44.1, 48 and 96 KHz

Power Consumption: 0.5 watts (max)

Package Contents:

• Main Unit (Digital to Analog Audio Converter)
• USB Power Cable
• User Manual
