Digital To Analog&Bluetooth Receier

Introduction:

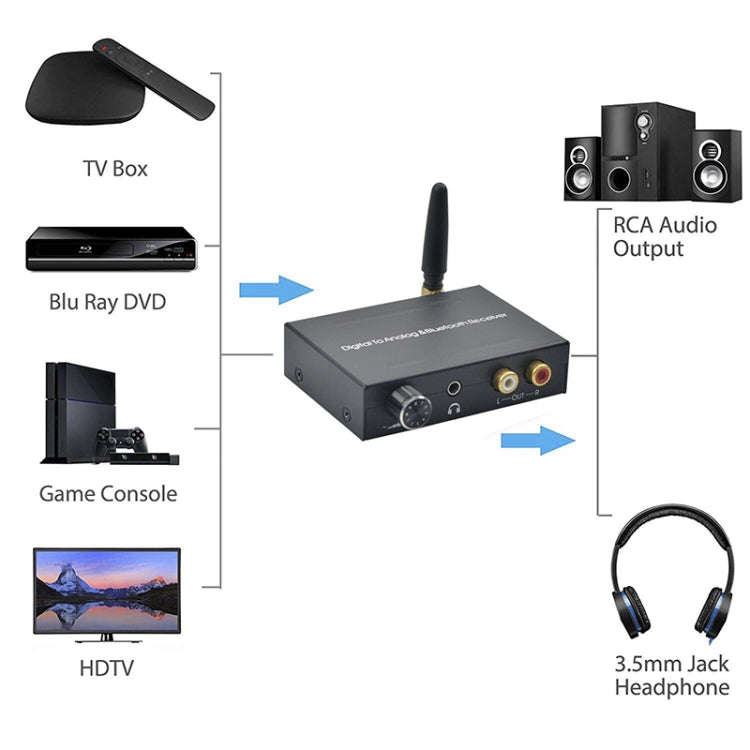

This DAC& Bluetooth converter converts optical or coaxial digital audio signals and Bluetooth receivers into stereo analog signals. Help users connect high quality digital audio signals to regular AV amplifiers. This product is very suitable for home theater, teaching, training structure, conference rooms, home appliance stores and other places

Features:
1. Support digital audio signal conversion to analog audio

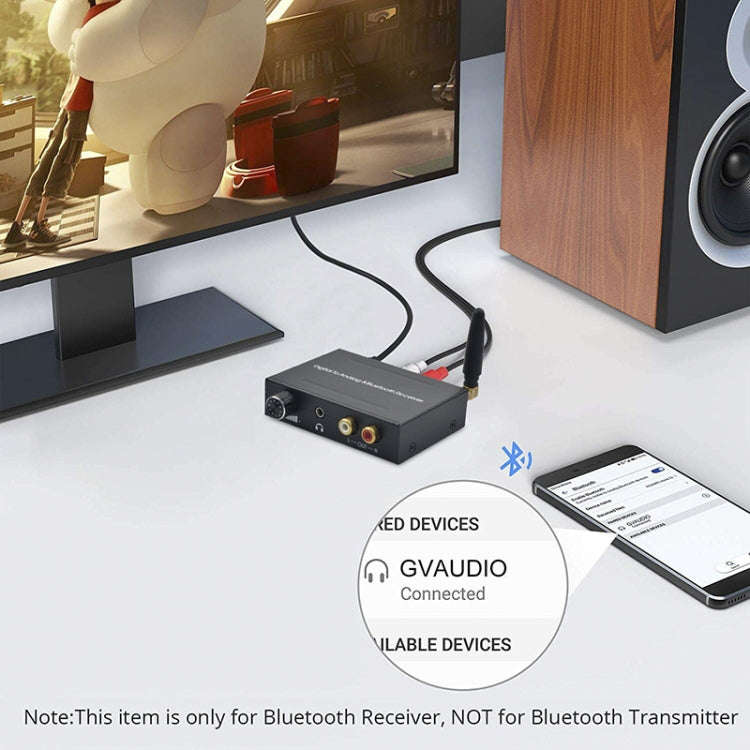

2. Bluetooth receiver, built-in Bluetooth 5.0 version chip
3. External Bluetooth antenna
4. Support automatic switching of Bluetooth mode
5. Personalized indicator

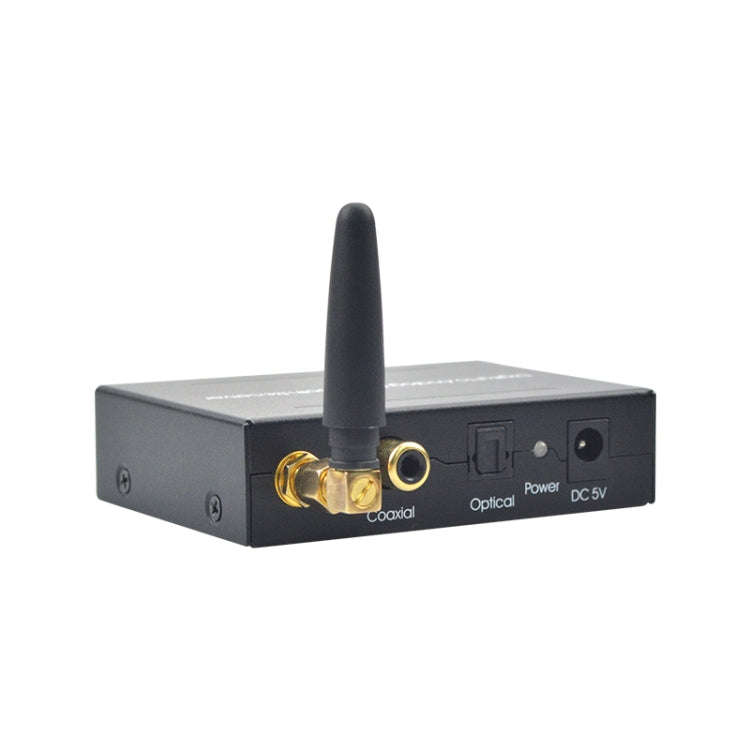

6. Support one fiber and one coaxial interface input
7. Built-in high-performance DAC chip supports 192Khz/24-bit audio parameter

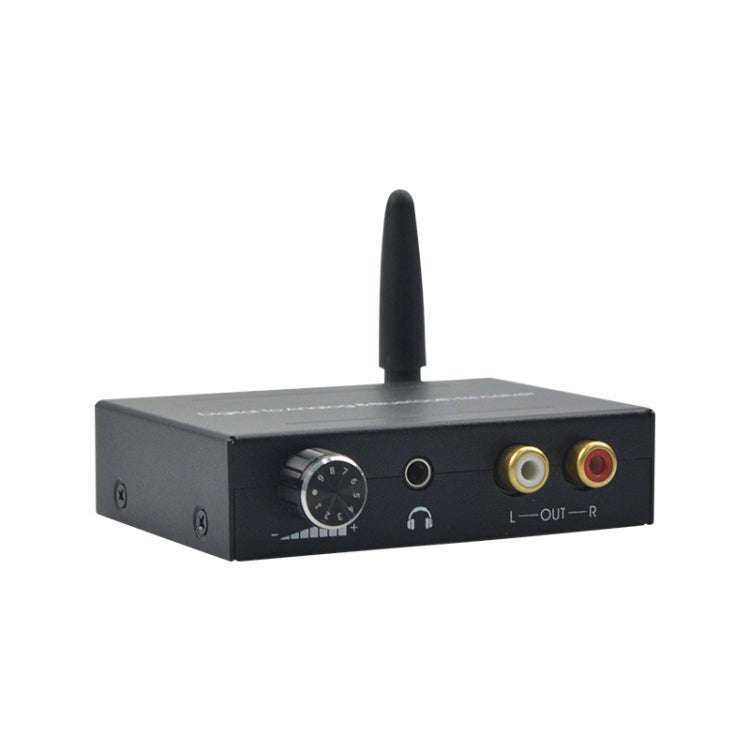

8. Support 2RCA and a 3.5mm audio port output
9. Support output volume control
10. Ultra low power consumption

Specifications:
Optical/Coax Input : Two Channel LCPM/24 Bit/192Khz
Bluetooth supports audio parameters ： Two-channel LCPM/16-bit/48Khz
Bluetooth version： 5.0version
RCA output maximum level： 1.2Vrms
3.5mm audio port output maximum level：1.2Vrms
3.5mm audio port output maximum power; 30mW
Maximum working current; 5V/75mA
Working environment temperature: -10~+55°C
Storage environment temperature:-26~+60°C
Working environment humidity :10~90%RH (no condensation)
Storage environment humidity: 5~95% RH (no condensation)
