Digital Trail Camera

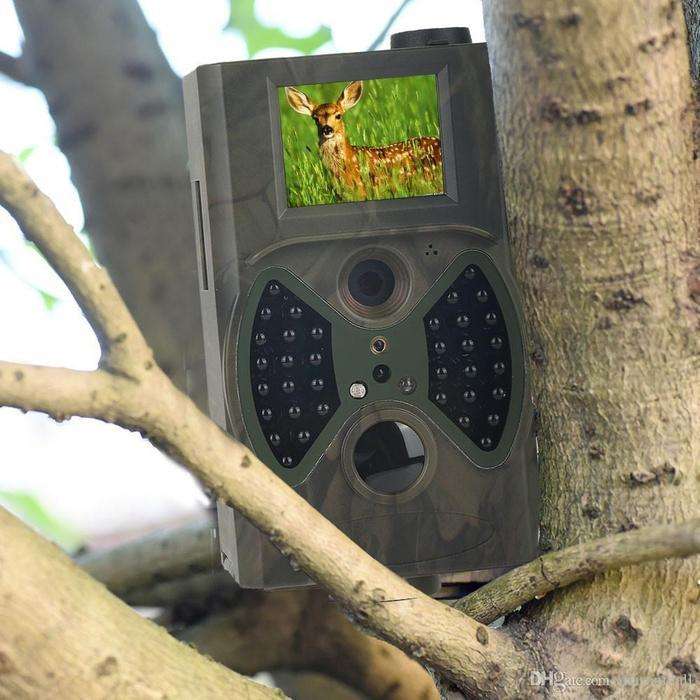

HC-300M Hunting Camera is a digital trail camera with MMS function, a surveillance camera working automatically.

It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD video clips (WVGA or QVGA).

At sunrise the unit begins to take color photos and video until there is insufficient light (dusk) when it begins to take infrared (monochrome) photos and video.
It is easy to use, there is a 2.0 inch colorful LCD display on camera, and it supports MMS/SMTP/SMS/E-mail via GPRS Network.

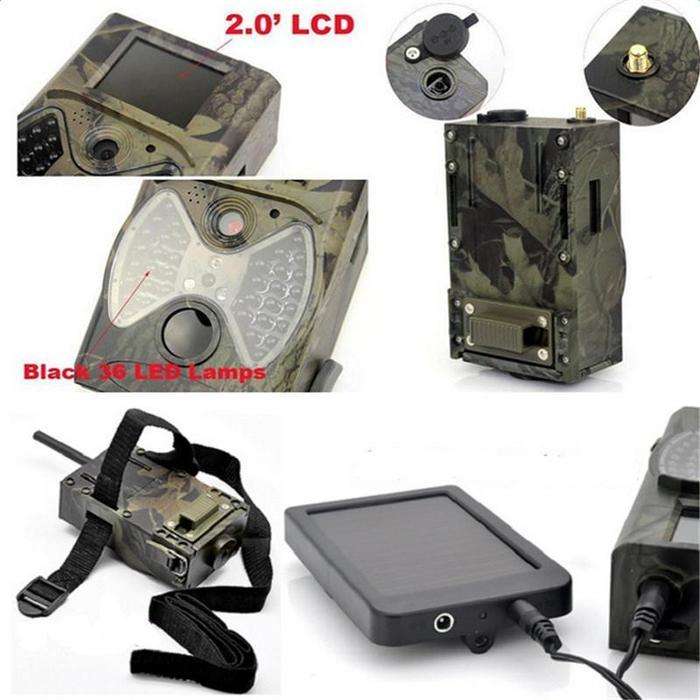

The camera has the following I/O interfaces: USB connector, SD-card slot, and external DC power connector.Take a few moments to familiarize yourself following the camera controls and displays. It is helpful to bookmark this section and refer to it as you read through the rest of the manual.

The remote control is an input device of the camera and is primarily used for customer settings and password input. This is an infrared type wireless remote control. The maximum remote distance is 9 meters.

Features:

• High quality image & video
• Speed trigger
• Long standby time
• Micro & Hidden design
• SD memory card record
• MMS SMS E-mail via GSM/GPRS
• Infrared night vision
• Wireless remote control
• AA battery power supply

Specifications:

• Image Sensor Type: 5MP Color CMOS Sensor
• Display: 2.0" LCD Screen
• SD Memory Card Support: 8MB~32GB (Not Included)
• Lens: F/NO=3.0 FOV(Field of View)=60
• PIR Sensing Distance: 65feet/20m
• LCD Screen: 2.0 inch TFT
• Image Resolution: 12MP = 4032x3024 , 8MP = 3264x2448, 5MP = 25601920
• Video Resolution: 1080P(25fps), 720P(25fps), VGA(30fps)
• PIR Sensor: Multi zone
• PIR Sensor Angle: 35 degrees
• PIR Sensitivity: Adjustable (High/Normal/Low)
• Trigger Speed: 1 second
• Trigger Interval: 5sec. ~ 60min. programmable
• Burst Mode: 1/3/6/9
• Operation Mode: 24Hours, Day, Night

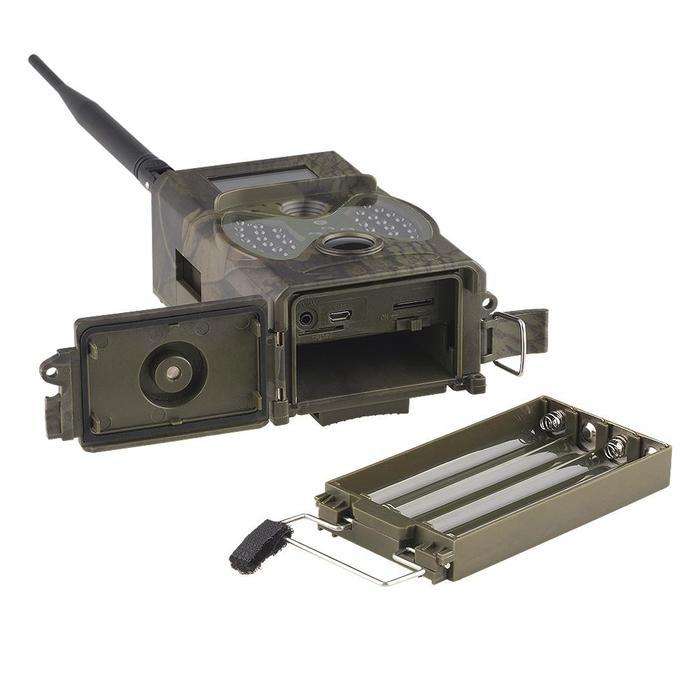

• Power Supply: 8xAA battery (Not Included)
• Please note that the voltage of rechargeable AA batteries ( 1.2V ) is insufficient to power this device
• Power consumption: 150mA
• Stand-by Current: 0.25mA (6mA/day)
• Stand-by time: 6 months
• Wireless Remote Control: Yes
• Low Battery Indicator: Yes
• MMS/Email/SMS Support: Yes
• Interface: TV Out(NTSC/PAL), USB Connector, MicroSD Card Slot, SIM Card Slot
• Fix Method: Belt, Tripod Nail
• Dimension: 134x80x50mm
• Weight: About 0.5Kg
• Certification: FCC, CE, ROHS

Includes:

• 1 X Digital Hunting Camera
• 1 X Wireless Remote Control
• 1 X Antenna
• 1 X USB Cable
• 1 X Belt
• 1 X Angle regulator
• 1 X User Manual
