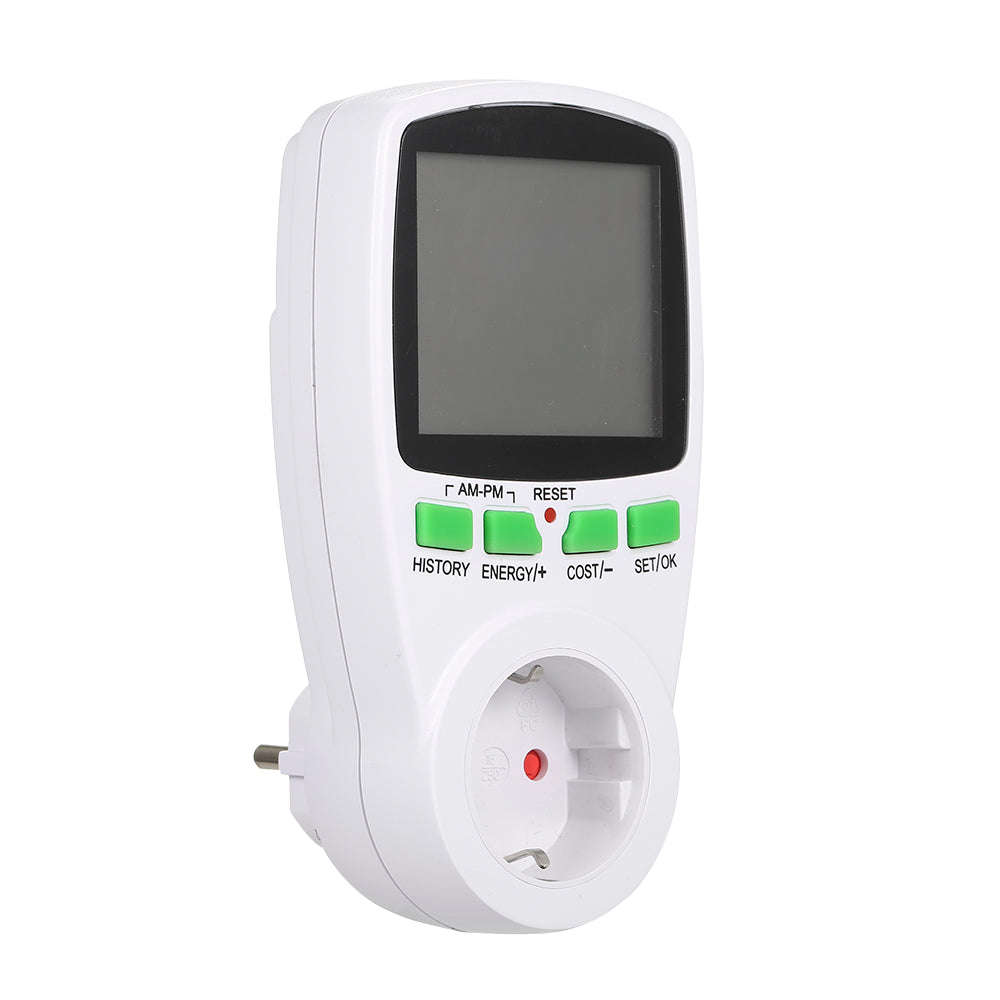

Digital Wattmet Power Meter Energy Meter Voltage Chart Power Measuring Socket Indoor Countdown

The multi-functional socket can calculate the electricity cost and measure the power consumption, voltage, current, timing of the electrical appliances at the same time.

Features:
LCD screen design, easy to read the data and know the working situation.
It has advanced feature of history bar graph of past days/weeks/months daily consumption.
By pressing ENERGY button repeatedly, LED display will show Volts, Current in Amp, Power in Watt, Frequency and Power Factor.
Simply plug the meter into the wall and then plug your appliance into the socket.ￂﾠ
Only to be used indoor, in dry condition and within max load.

Specifications:
Material: PC
Plug Type: Three kinds of plugs (optional)
Operating Voltage:ￂﾠ
ￂﾠ ￂﾠEU: 230V ac
ￂﾠ ￂﾠUS: 120V ac
ￂﾠ ￂﾠUK: 230V ac
Frequency Display:ￂﾠ
ￂﾠ ￂﾠEU: 50Hz
ￂﾠ ￂﾠUS: 60Hz
ￂﾠ ￂﾠUK: 50Hz
Wide Voltage Range:ￂﾠ
ￂﾠ ￂﾠEU: 200V-250V
ￂﾠ ￂﾠUS: 110V-130V
ￂﾠ ￂﾠUK: 200V-250V
Operating Current:ￂﾠ
ￂﾠ ￂﾠEU: Max 16A
ￂﾠ ￂﾠUS: Max 15A
ￂﾠ ￂﾠUK: Max 13A
Wattage Display(watts):ￂﾠ
ￂﾠ ￂﾠEU: 0W-3680W
ￂﾠ ￂﾠUS: 0W-1800W
ￂﾠ ￂﾠUK: 0W-2900W
Current Display(amps):ￂﾠ
ￂﾠ ￂﾠEU: 0.0A-16.0A
ￂﾠ ￂﾠUS: 0.0A-15.0A
ￂﾠ ￂﾠUK: 0.0A-13.0A
Price Display Range: 0.00￢ﾂﾬ/KWH-99.99￢ﾂﾬKWH
Total KWh and Cost Display: 0.000KWH-9999KWH, 0.00￢ﾂﾬ-9999￢ﾂﾬ
Battery: 2 x 1.5V LR44/AG13 button batteries (included)
Item Size: 184 * 75mm / 7.24 * 2.95in
Package Weight: 235g / 8.29ounce
Package Size: 160 * 80 * 80mm / 6.3 * 3.15 * 3.15in

Note: There are 3 kinds of plugs for yourￂﾠ choice, please choose a specification that suitable for your country.

Package List:
1 * Chart Power Measuring Socket
1 * User Manual
