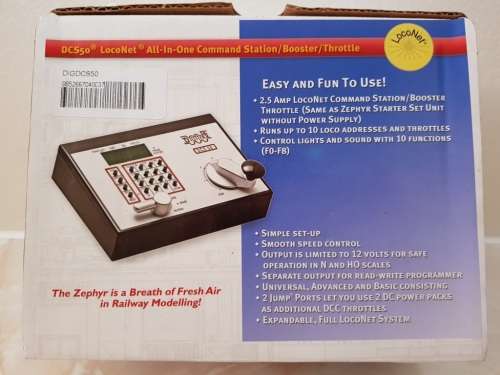

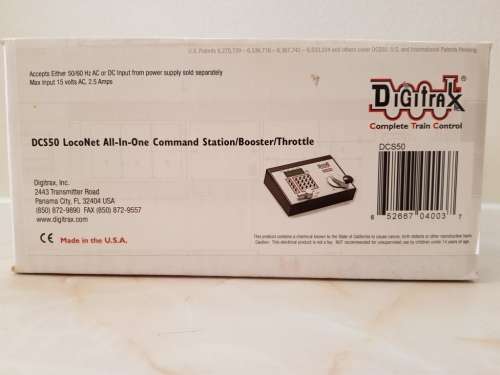

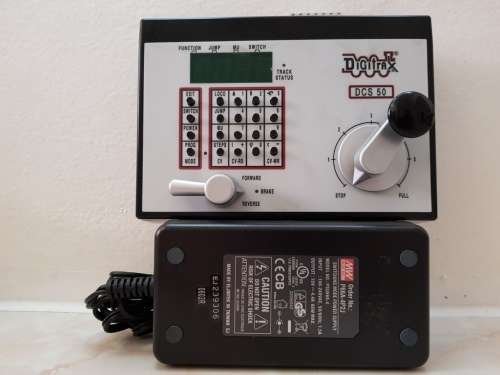

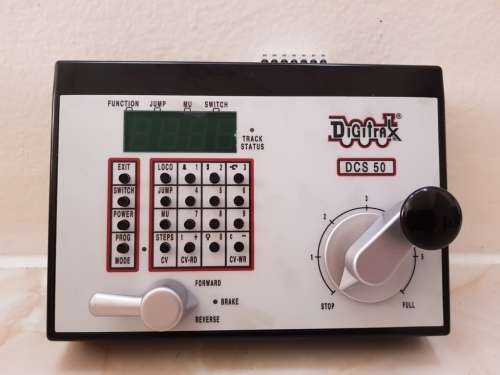

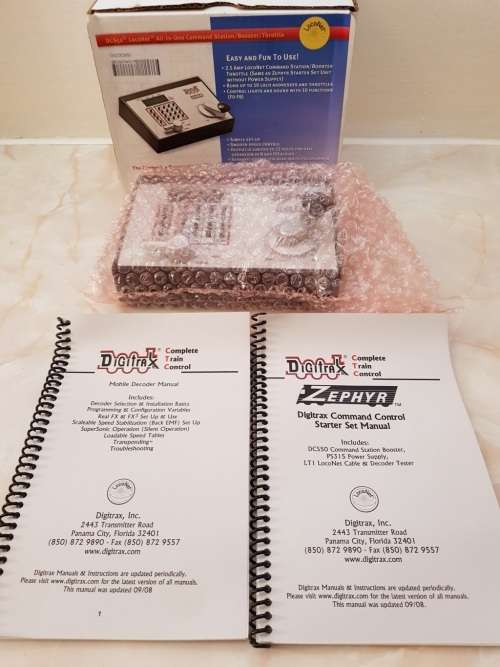

Digitrax DCS50 All-in-one Command Station/Booster/Throttle, c/with Power Supply.

Digitrax DCS50 All-in-one Command Station/Booster/Throttle, c/with Power Supply:

DCS50 Features:

• Simple to use controls for running trains.
• Large speed control knob and direction switch with brake.
• Full numeric key pad.
• Easy 2 and 4 digit addressing.
• Smooth speed control.
• Run multiple trains at once without blocking!
• Run up to 10 addresses at the same time on your system.
• Run up to 10 throttles at the same time on your system.

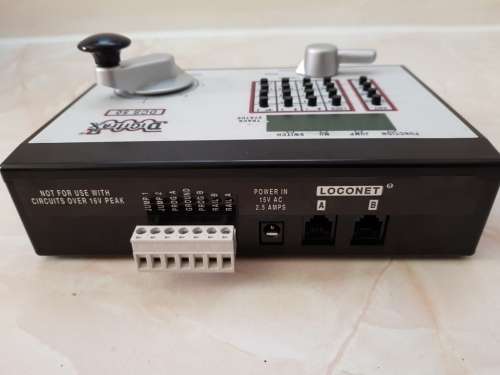

• Jump Ports for using DC power packs as additional throttles.
• Use one or two smooth DC power packs as throttles to control DCC equipped locomotives.
• Simple, cost effective way to add more throttles to your Zephyr set.
• Makes it easy to share the fun of DCC with layout visitors and young operators.
• Functions on locos controlled by Jump throttles remain active.
• Over 9000 Locomotive Addresses.
• Use Address 00 to run one or more locos without DCC decoders.
• Two Digit Addressing is easy to use. (Address 01-127)
• Four Digit Addressing-use the number painted on your engines as its address.
• 2.5 Amps of Power to run multiple trains.
• Booster outputs 12V for safe operation in N and HO scales.

Function Control:

• Control 10 functions-F0 through F8.
• Function 2 is a special non-latching key that can be used to sound the horn for as long as the key is
• held down.
• Constant brightness lighting. Headlights can be directional or independently controlled (depending on
• decoder).

Stationary Decoders, Turnout Control & Turnout Position Reporting:

• Access to stationary decoder control for turnouts and other devices.
• Control 999 stationary decoder addresses.

Consisting:

• Universal consisting, Digitrax preferred method. ALL locos can be consisted, even analog locos.
• Advanced consisting, allows only advanced consist capable mobile decoders.
• Basic consisting, program decoders to run on same address.

Decoder Programming:

• Built in read/write programmer that can read and write all CVs.
• Supports Paged programming (Digitrax preferred method).
• Also supports direct & register mode programming.
• Operations mode programming can be used to program decoders on the layout.

Expandability with Digitrax LocoNet:

• Use Zephyr as a starting point for your Digitrax LocoNet System, then add components.
• Use Zephyr as an expansion set with Digitrax equipment you already have installed.
• Add Radio or IR via LocoNet. Just plug in a UR90 or UR91 receiver and add IR and/or Radio throttles.
