Product details

Condition
New
Location
South Africa
Product code
DIM225
Bob Shop ID
533064865

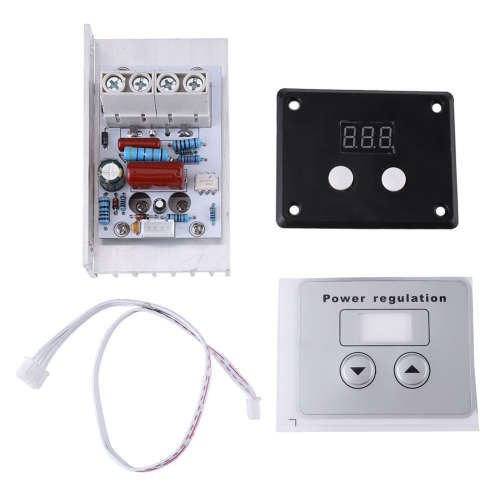

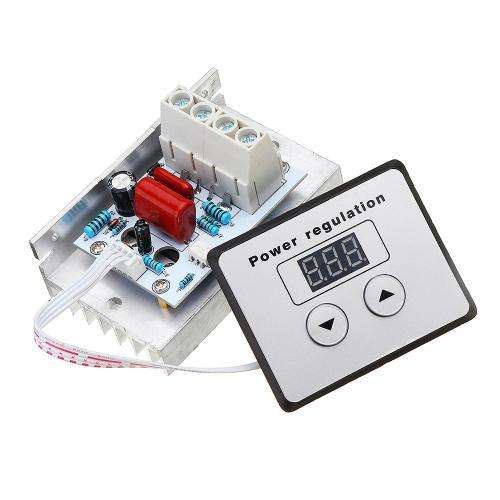

Dimmer 220V SCR 10000W Voltage Regulator:



Specifications:

Voltage: AC 220V
Max Power: 10000W (instantaneous limit power for impedance load; for long time use, 5000w or lower is recommended)
Voltage Adjustment: 0-100% (nonlinear)
Controller Size: 95.7 x 56.7 x 53.8mm
Panel Size: 74.6 x 59.8 x 2.3mm
Cable Length: 29cm Approx



- This item has new two-way large power silicon controlled rectifier and the current can be up to 80A, which is a good solution to over-current of electric stove wire caused by low resistance during cooling.
- It can easily adjust the output voltage on a scale of 0-100% (nonlinear) to power electric device.
- Designed with large and thick heat sink that would enhance heat dissipation.

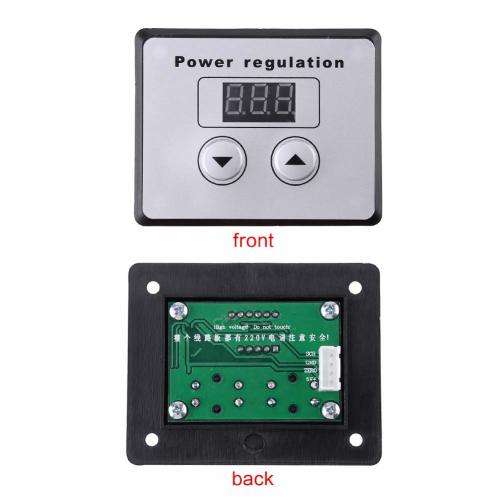

- This voltage regulator is adjusted with button which is much more stable than potentiometer.
- Voltage regulator has wave voltage absorbing circuit and effective protects large power silicon controlled rectifier, longer service life and more durable.
- It can be used as power supply for large electrical devices of less than 10000W, enough for household appliances or for small factory.

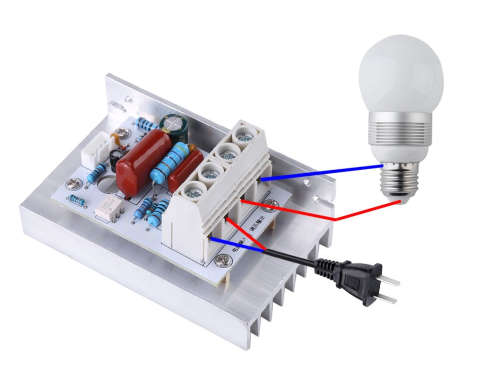

- Could be widely used as heat controller on electric stoves, water heaters, light dimmer on lamps, speed controller on small motors, or temperature controller on electric soldering iron, etc.
