Din Rail AC LED Dual Display Voltmeter Ammeter Voltage Ampere Gauge

Din Rail AC LED Dual Display Voltmeter Ammeter Voltage Ampere Gauge
Description:

Measuring Voltage Range	AC 80-300V
Mearuring Current	AC 0.2-99.9A
Power Supply	<0.2VA
Measuring Speed	2 times/second
Accuracy	1%,±2 words

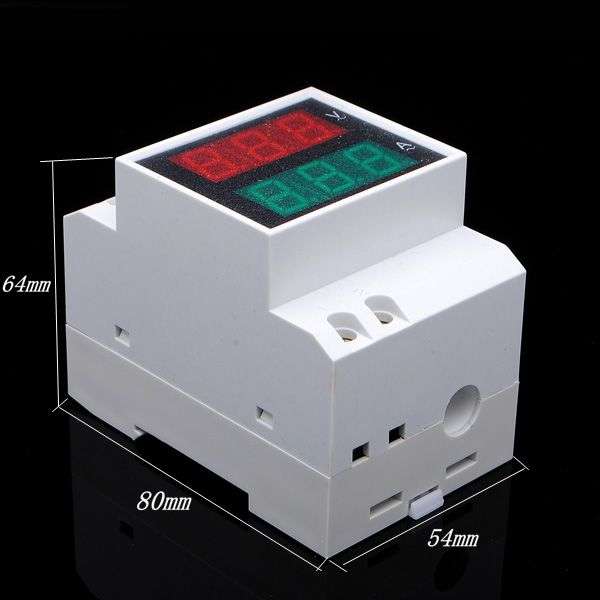

Size	54×80×64 mm

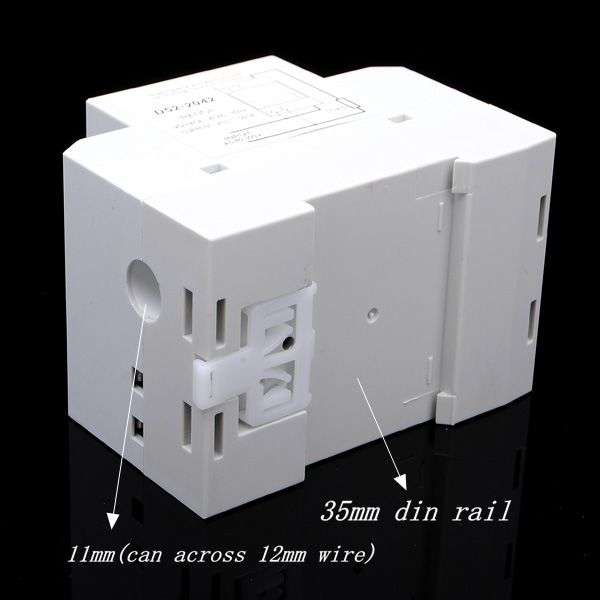

Din Rail Size	35mm din rail

Feature:

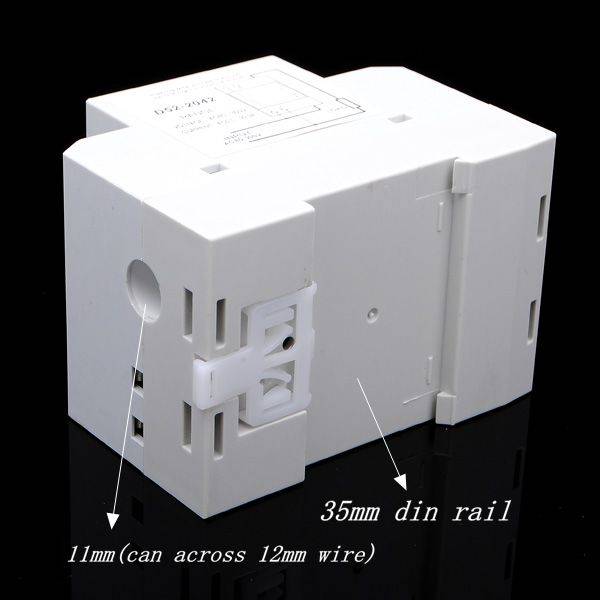

35mm din rail design

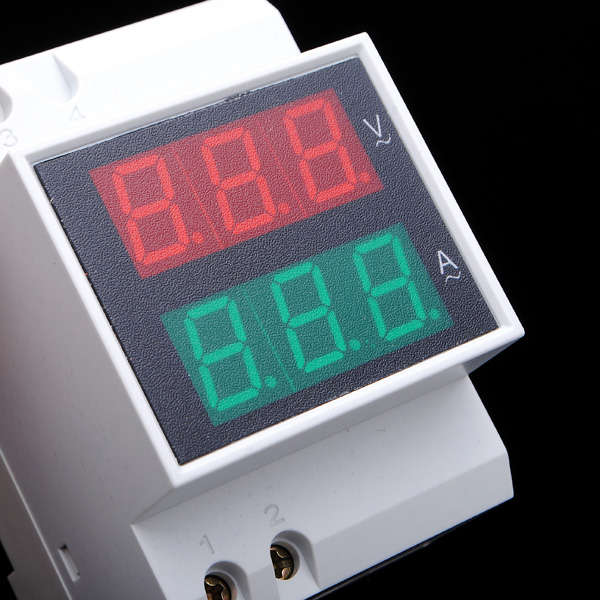

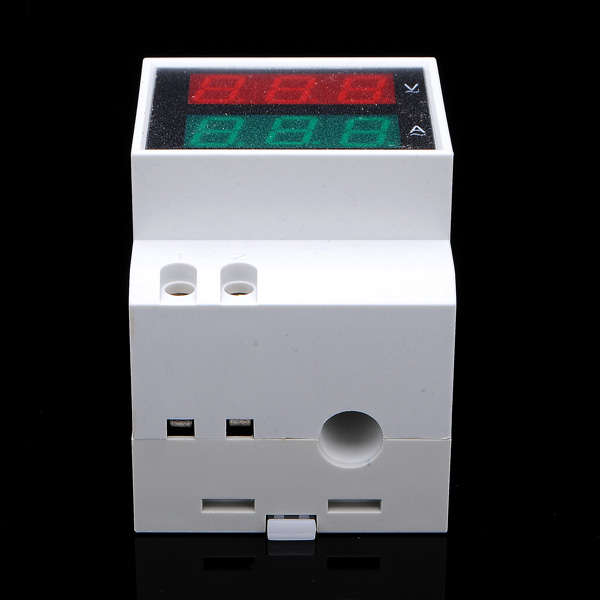

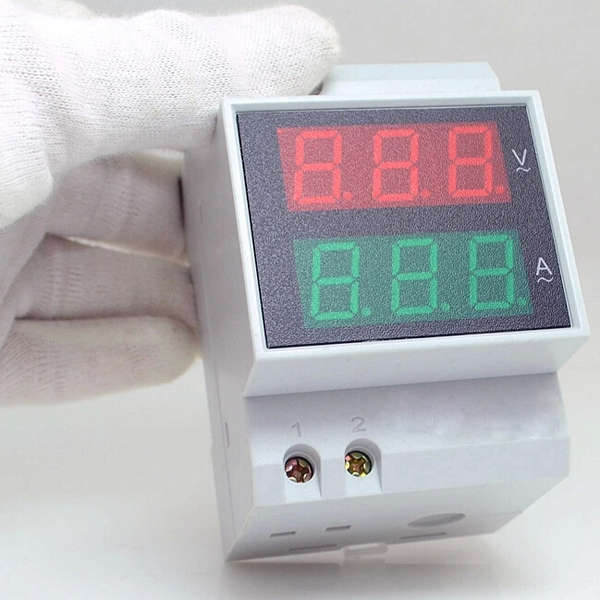

LED dual display(voltage red display,ampere blue display)
No AC transformer needed when measuring current range is 0.2-99.9A
Can real-time monitor home appliances

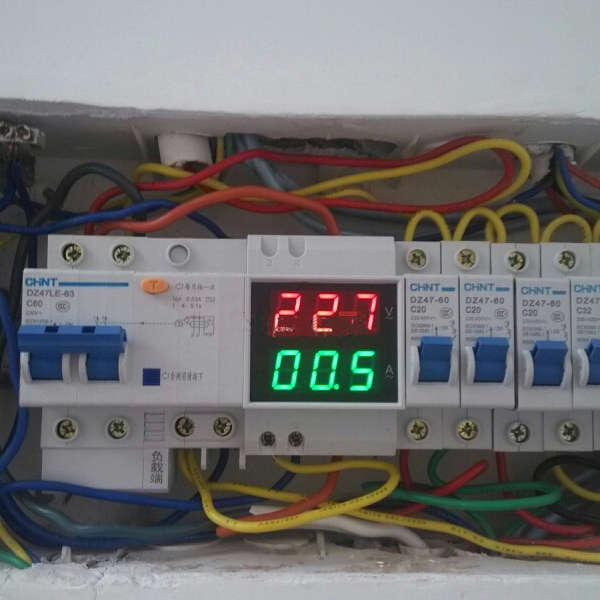

Fit for electric power systems, home,power distribution box, electrical machinery and equipment
Installation Steps:

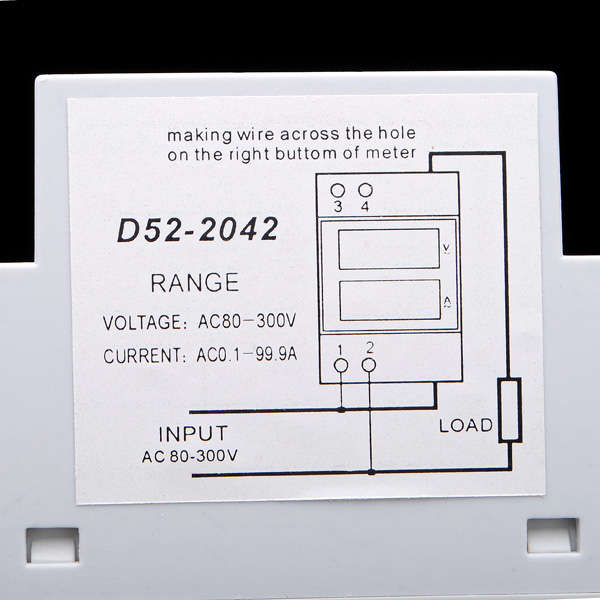

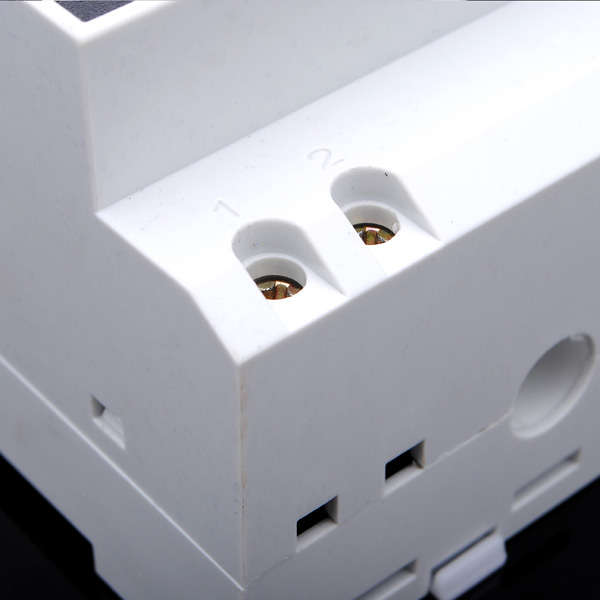

1. Connect the measured voltage to the terminal of 1 and 2.
2.External current transformer installation as graph1:Let the wire across the hole on the current transformer,and then connect the two wires of the secondary transformer to the terminal of 3 and 4 on the meter.
3.Internal current transformer installation as graph 2:Let the wire across the hole on the current transformer(the direction do not impact the measure result).
Note:

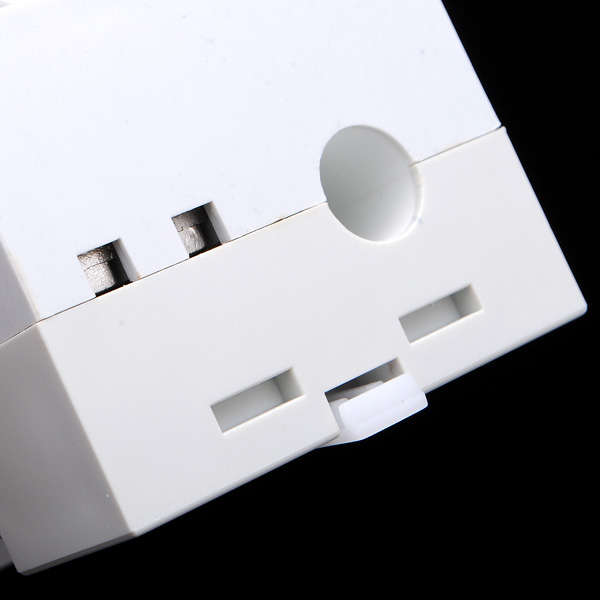

1.If the measuring current is lower than 99.9A,you can get the AC current only making the wire across the hole which in the right side of the meter.
2.If the measuring current is higher than 99.9A,you should connect meter with a current transformer.
Package included:
1X Din Rail AC LED Dual Display Voltmeter Ammeter
