Din Rail LED AC Voltmeter Ammeter Multifunction Digital Meter

Din Rail LED AC Voltmeter Ammeter Multifunction Digital Meter
Description:
This din rail LED AC multifunctional digital meter can display voltage,current,active power,reactive power and power factor simultaneously.It is suitable for electric power systems, home, power distribution box, electrical machinery and equipment monitoring the power grid and power parameters.
Specifications:

Measuring Voltage Range	AC 80-300V
Mearuring Current Resolution Ratio	0-100.0A	<10A: 0.01A
		>10A: 0.1A
Active Power	0-30000W
Reacitive Power	0-30000VA
Power Factor	COSφ=1.000-0.000
Measuring Speed	2 times/second
Accuracy	1%,±2 words

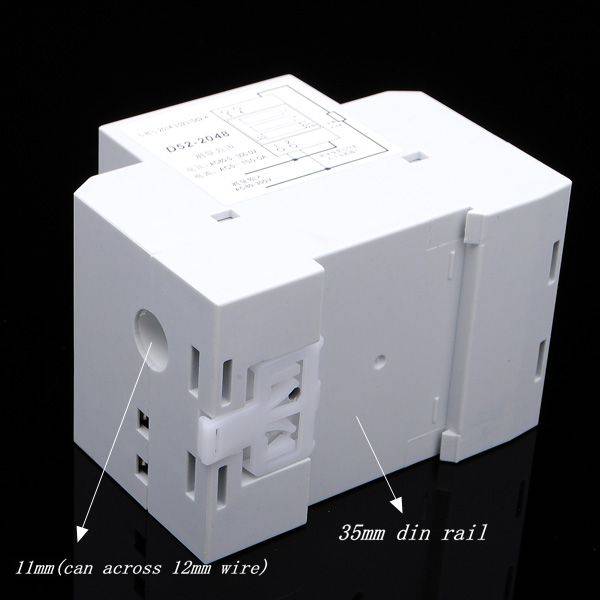

Din Rail Size	35mm din rail

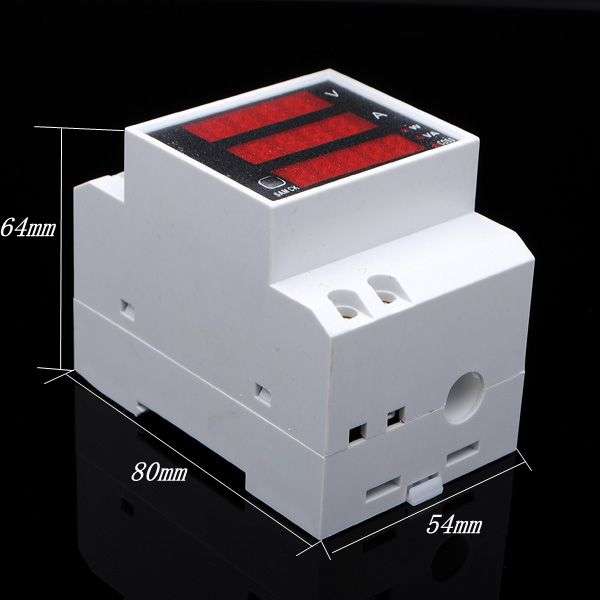

Size	54×80×64 mm

Feature:
Din rail Design
Built-in precision micro current transformer
Can display voltage,current,active power,reactive power and power factor simultaneously.
Fit for electric power systems, home, power distribution box, electrical machinery and equipment monitoring the power grid and power parameters
Installation Steps:

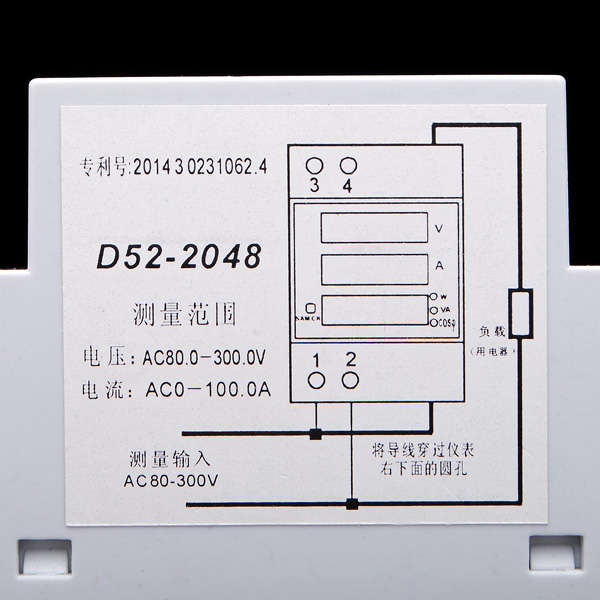

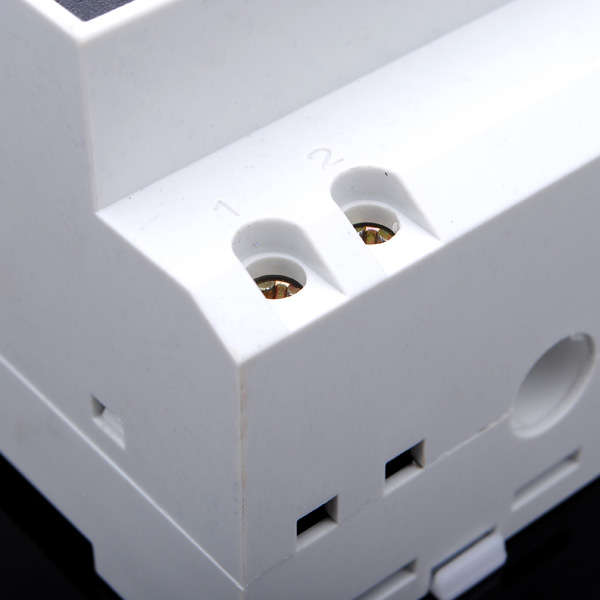

1. Connect the measured voltage to the terminal of 1 and 2.

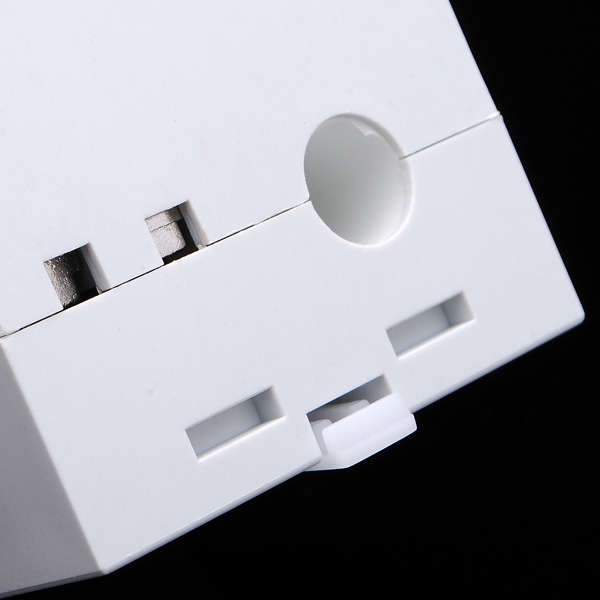

2.Internal current transformer installation as graph 2:Let the wire across the hole on the current transformer(the direction do not impact the measure result).

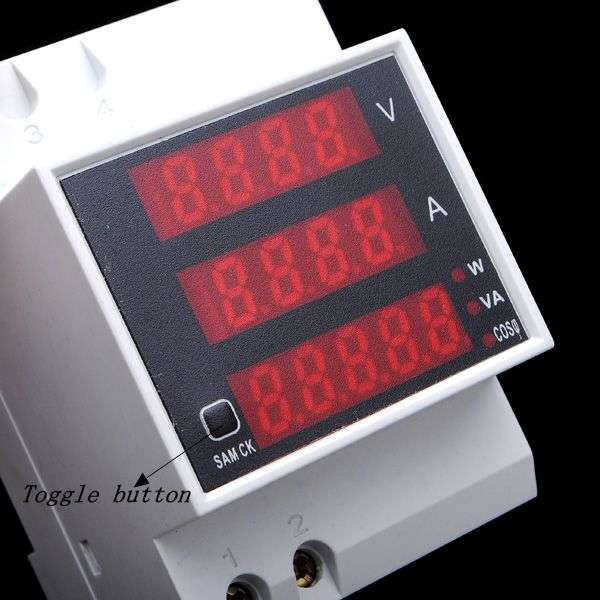

3. The default display power is active power(V),click the switch(SAM CK) can change to the reactive power(VA) and power factor( COSφ.
Notice:

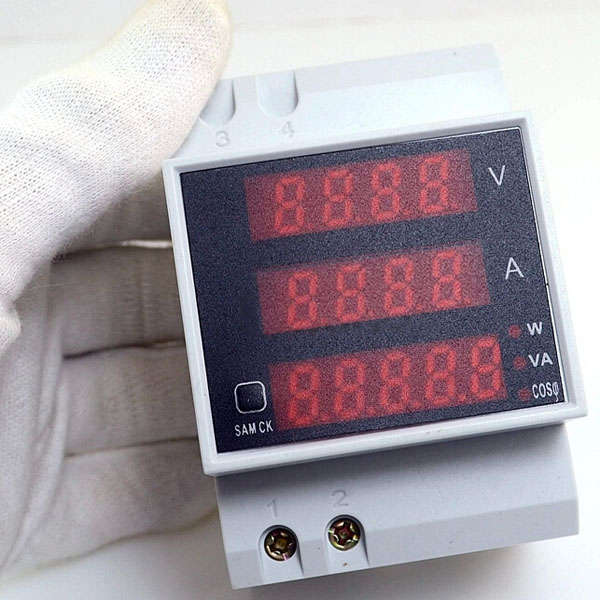

Displayer:AC voltage and current with 4-digital 0.31" LED;active power,reactive power and power factor with 5-digital 0.31" LED.
Package included:
1X din rail LED AC multifunctional digital meter
