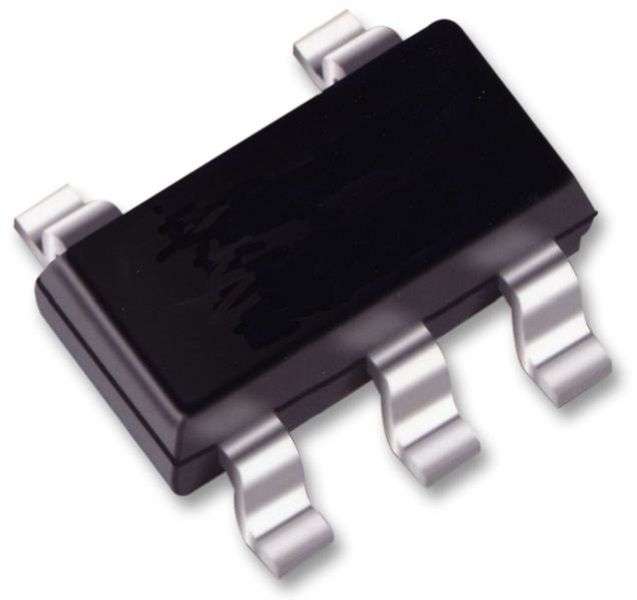

Diodes Inc. (74AHCT1G125W5-7) Buffer, 74AHCT1G125, 4.5 V to 5.5 V,

Buffer, 74AHCT1G125, 4.5 V to 5.5 V, SOT-25-5Product OverviewThe 74AHCT1G125W5-7 is a single non-inverting Buffer/Bus Gate Driver with a3-state output. The output enters a high impedance state when a High-level isapplied to the output enable (OE) pin. The device is designed for operation witha power supply range of 4.5 to 5.5V. It features Schmitt trigger action at allinputs make the circuit tolerant for slower input rise and all time.3-state Buffer OE-low functionCMOS low power consumption±8mA Output drive at 5VLatch-up exceeds 100mA per JESD 78, class IIApplicationsIndustrial, Computers & Computer Peripherals, Communications & Networking,Consumer ElectronicsProduct InformationLogic Family / Base Number: 74AHCT1G125Logic Device Type: Buffer, Non InvertingLogic Case Style: SOT-25No. of Pins: 5PinsSupply Voltage Min: 4.5VSupply Voltage Max: 5.5VLogic IC Family: 74AHCTLogic IC Base Number: 741G125Operating Temperature Min: -40°COperating Temperature Max: 150°CProduct Range: -Automotive Qualification Standard: -MSL: -
