DIY 32 LED Music Electrical Level Indicator VU Meter Audio Level Meter Kit For Amplifier Board Adjus

Descripiton:

WorkingVoltage:DC7-12V(Max12V)
WorkingCurrent:Morethan50mA

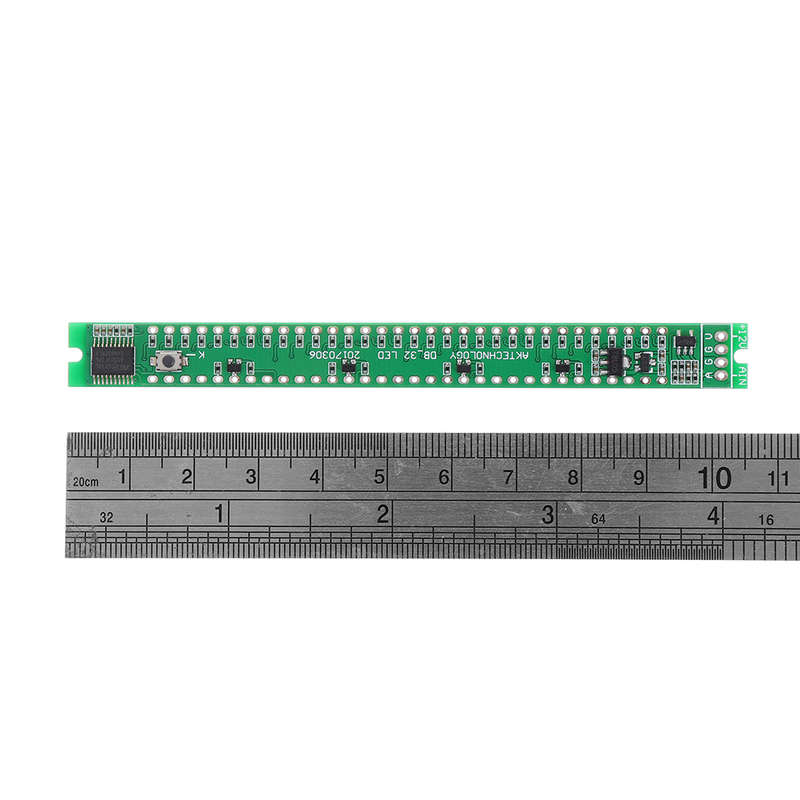

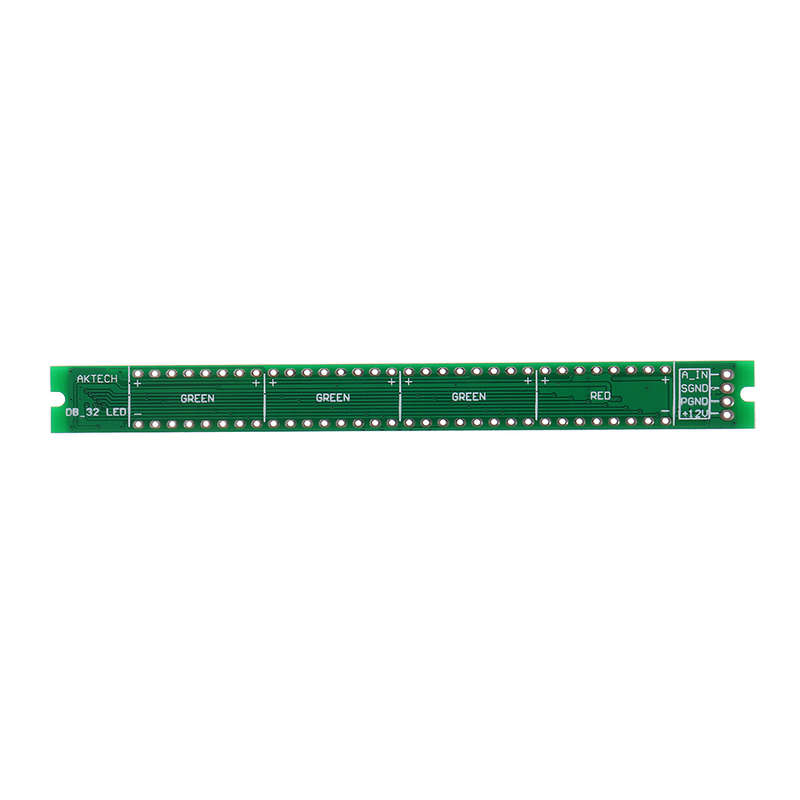

PCBSize:105*10mm

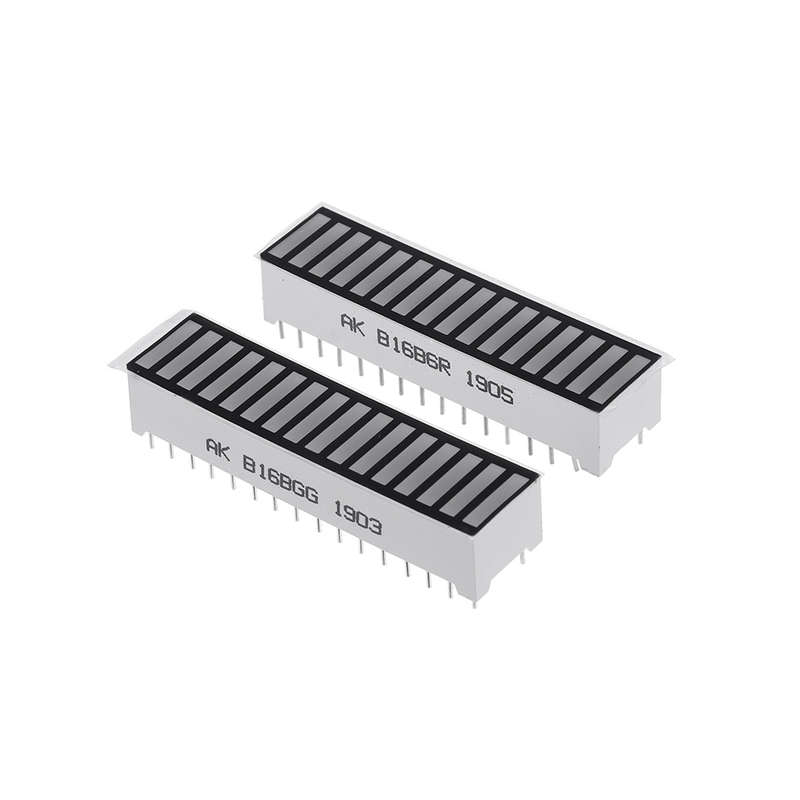

LEDsize:82*10mm

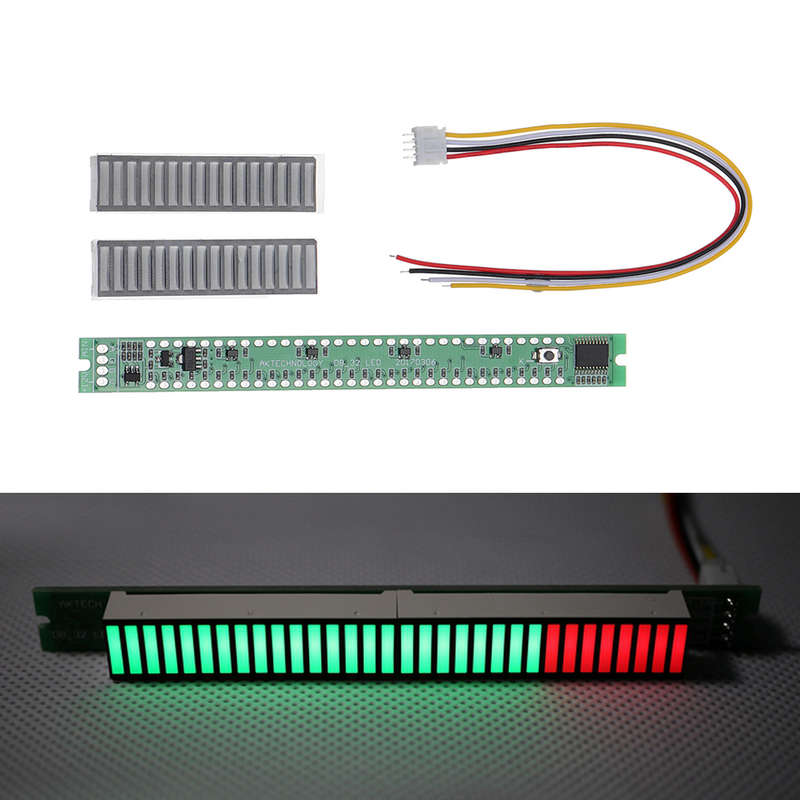

24Green+8Red

Features:

1.Mono32segmentwideninglightstoensureadequatedynamic
rangeandfineenough.
2.Exclusivecustomwideninglightsstrip.(Therearenosimilar
lightsinthemarket).
3.Therisingspeedandthefallingspeedofthelightbar,the
holdingtimeandthefallingspeedofthepeakcanbeadjusted
separately.
4.Real-timemodeandAGCmodeselection(superwiderangeof
AGCadaptivealgorithmtoensurethebesteffect)
5.Smallsize,canbeeasilyloadedintosmallcase.

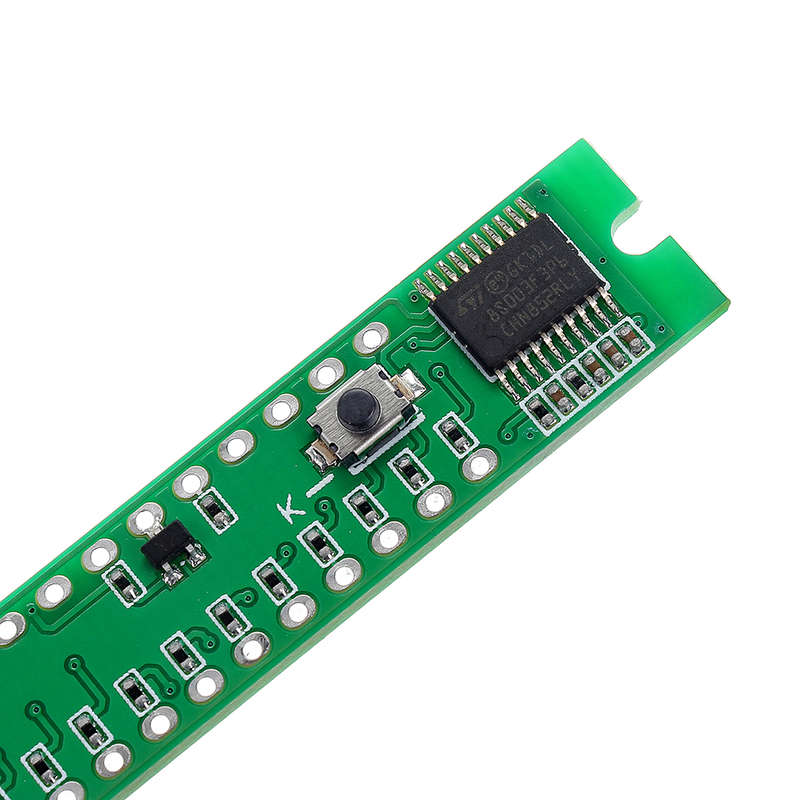

6.Singlebuttonoperation.
7.brightnessadjustmentfunction.
Specificoperation:(ThereareLEDinstructionsoperatingtime)

Normalmode:

1.Pressthebuttonfor1second-Modeswitch(therewillbea
correspondingpreview).
2.Pressthebuttonfor3seconds-Switchbetweenrealmode
andAGCmode(therewillbeacorrespondingpreview).
3.Pressthebuttonfor5seconds-Enterthespeedsetting
mode.
4.Pressthebuttonfor10seconds-Factorydefault.
5.Doubleclickonthebutton-Adjustthebrightnessof
thelightbar,low/medium/high.

Speedsettingmode:(Innormalmode,pressthebuttonfor5
secondstoenter,pressthebuttonfor5secondstoexit).
1.Pressthebuttonfor1second
a.Therisingspeedofthelightbar(15optional)
b.Thefallingspeedofthelightbar(15optional)
c.Theholdingtimeofthepeak(15optional)
d.Thefallingspeedofthepeak(15optional)
e.Zoomin/outinrealtimemode(15optional)
f.Brightnessadjustment(15optional)
Loopinthesefunctions.
2.Clickthebutton-Looptochangetheparametersset.

Package included:

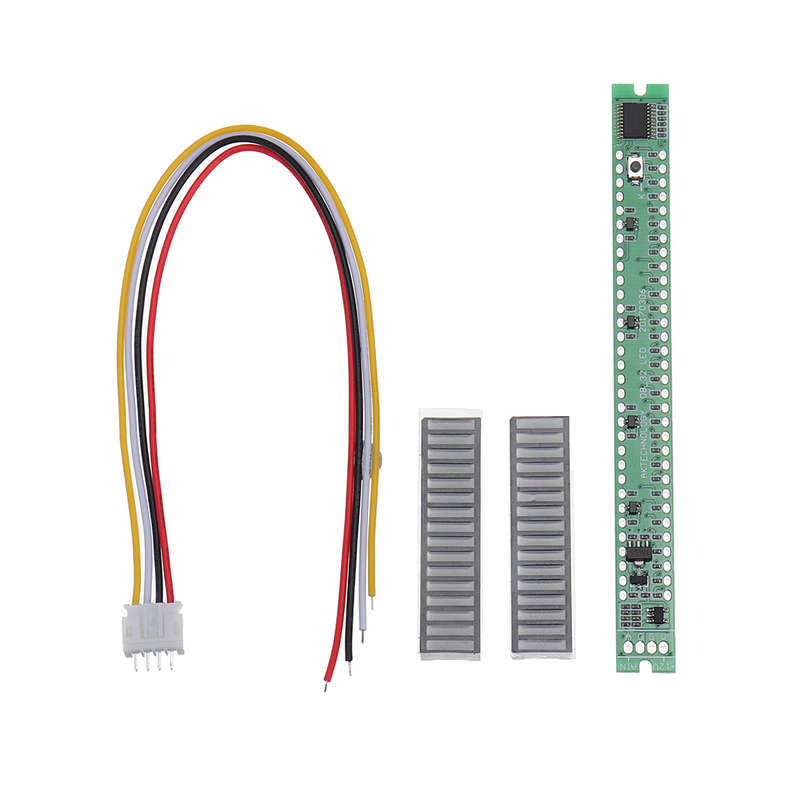

1 x DIYVU Meter Audio Level Meter Kit
