A complete 4-channel economical standalone CCTV system, ideally suited for home or small business.

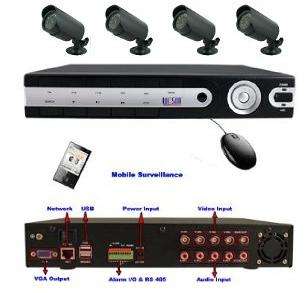

The system comprises a 4-channel digital DVR unit with mouse, 4 high-quality infra-red colour weatherproof cameras with 380 lines resolution, each with a 18m combined video and power lead and a 5-in-1 switched mode power supply, to power both cameras and DVR. The DVR output can be fed to any standard monitor or tv with an AV input option.
The DVR features networking support as well as 3G mobile phone surveillance.
Any standard SATA hard drive can be fitted to the unit (not included).
Features:
* 4 channel / 8 channel PAL/NTSC/SECAM Video Input
* 4 channel Audio Input
* Graphical Interface, easy to operate.
* Support Mouse control
* Triplex operation: simultaneous playback/record/network
* H.264 Real Time Playback
* Four-level selection of recording quality and self-defined bit rate and frame rate supported
* Support USB flash disk, portable USB HDD,Support Mouse control
* Support windows media player playback
* Support 3G mobile phone surveillance & E-mail function
* Network Function:
1. Dual-Stream Network Transmission With Better Performance
2. Supports DDNS, PPPoE protocol
3. Supports network file sharing
4. Supports browser functionality
* Multi-language interface selectable
DVR Specifications:
Video Input: 4 Channel BNC
Video Output: BNC x 1, VGA x 1
Audio Input/Output: RCA 4-channel/1-channel
Operation Mode: Triplex(playback/record/network)
Compression:
Video: H.264 Baseline Compression; Audio: G.726 8k*16bit ADPCM Mono
Video Record Resolution:
(PAL) Display: D1
Playback:4CH CIF, Half D1, D1
Frame Per Second: (PAL) Display: 100fps; Record: Max 100 fps(Quad), each CIF:25fps/s; (Real Time) Half D1:12.5fps/s, D1: 6.25fps/s
Live Display: Real Time, Single, Quad
Video Adjustment: Brightness, Contrast, Colour
Alarm Input: 4 Channel
Alarm Output: 1 Channel
Recording Mode: Continuous, Motion Detection, Sensor, Time schedule
Playback Search: Time, Event (Motion, Alarm)
Motion Detection: Yes, with configurable detection area & sensitivity
Video Loss Alarm: Yes
Remote Controller: Yes
Network/IP: RJ45
Pan/Tilt/Zoom: RS485
Restore Configuration after Power Outage: Auto
HDD storage: One SATA HDD UP to 1TB
Backup Device: 1. USB; 2.0 flash drive; 3. Network; 4. USB DVD-RW
Power Supply: DC 12V/3A
Weight: 5 KG
DVR Dimension: 315(w) x 224(d) x 52(h)mm
Operating Temperature: -20°C ~ +60°C
Camera Specifications:
Image Sensor: 1/3" OV CMOS
Resolution Ratio: 380 TV Lines
Minimum Illumination: 0 Lux
Led: 11 Pieces
IR Distance: 15m (max)
View Angle: 3.6mm (72°)
Power Supply: DC 12V 300mA
Dimension: 51(l) x 50(w) x 120(h)mm
