DIY Electronic CHA-81 DC4.5-9V LED Tracking Light Game (10006458)
Manual Download :
Note: If the LEDs are difficult to place, you can place individual LEDs slightly upwards, which will be easier to install and will not affect the appearance
1.Introduction:

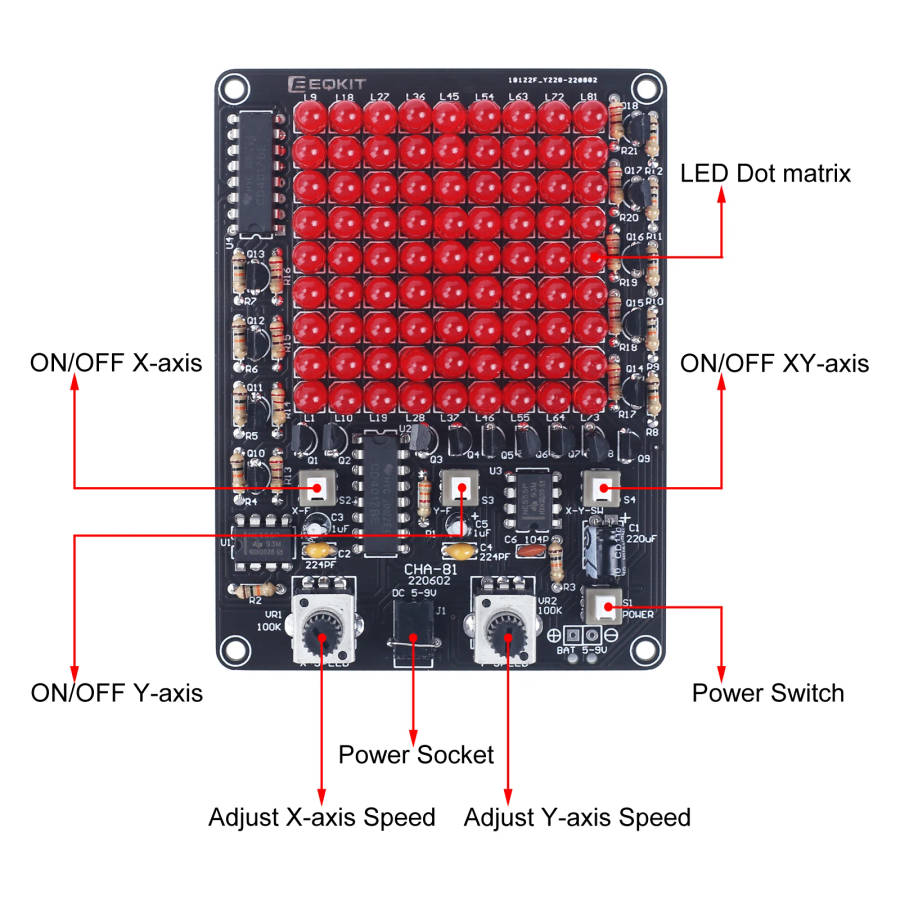

CHA-81 is a LED Follow Spot Lights LED Game DIY Kit. It can make the LED move along the X-axis/Y-axis/XY-axis, and the moving direction can be controlled by the buttons. It can also adjust the speed of the LED movement, resulting in a variety of LED blinking effects.
It is a very interesting DIY electronic product which enables users to understand the circuit more clearly and learn welding skills.
2.Feature:
1>.81pcs highlight Red LED
2>.Controllable movement direction for X-axis/Y-axis/XY-axis
3>.Controllable movement speed for X-axis/Y-axis
4>.Simulate LED light game tracking effect
5>.Perfect simple circuit
6>.DIY hand soldering
3.Parameter:
1>.Product Name:CHA-81 LED Follow Spot Lights LED Game DIY Kit
2>.Product Number:CHA-81
3>.Work Voltage: DC 4.5V-9.0V
4>.Power Type:3.5mm Power Socket
5>.Color: Red LED

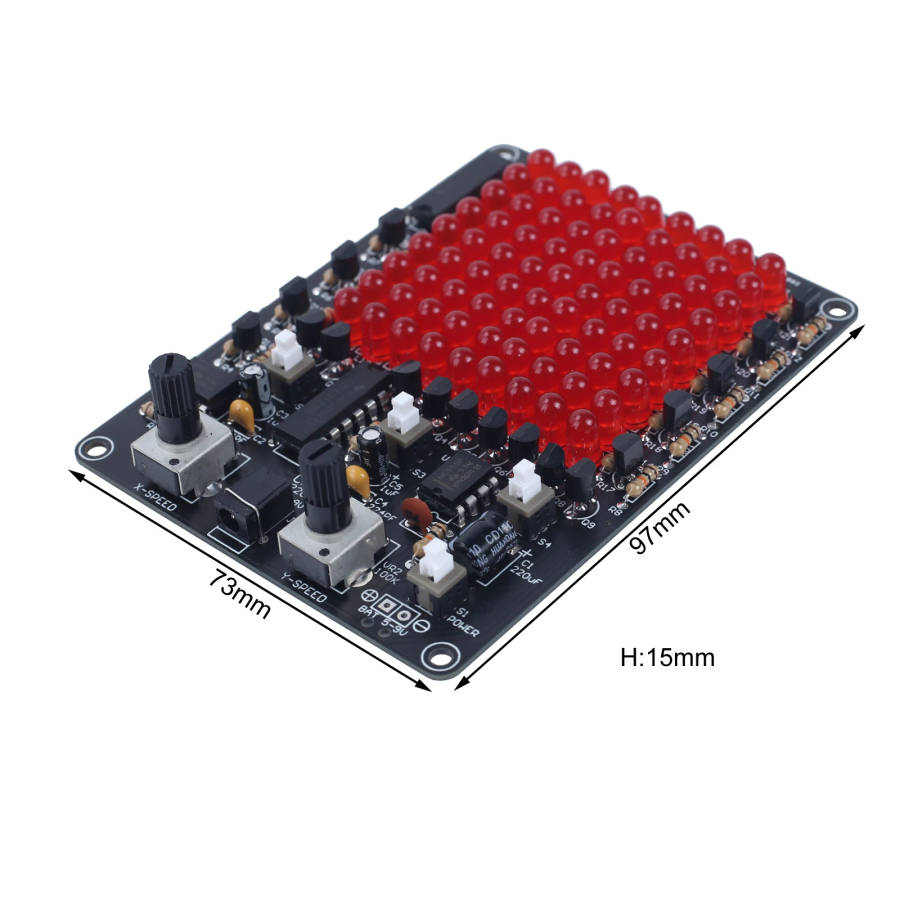

6>.Size(Installed):97*73*24mm
4.Application:
1>.Training welding skills
2>.Student school
3>.DIY production
4>.Project Design
5>.Electronic competition
6>.Gift giving
7>.Crafts collection
8>.Home decoration
9>.Souvenir collection
10>.Graduation design
11>.Holiday gifts
5.Installation Tips:
1>.User needs to prepare the welding tool at first.
2>.Please be patient until the installation is complete.
3>.The package is DIY kit. It need finish install by user.
4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
5>.Pay attention to the positive and negative of the components.
6>.Strictly prohibit short circuit.
7>.User must install the LED according to the specified rules. Otherwise some LED will not light.
8>.Install complex components preferentially.
9>.Make sure all components are in right direction and right place.
10>.Check that all of the LED can be illuminated.
11>.It is strongly recommended to read the installation manual before starting installation!!!
12>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.
