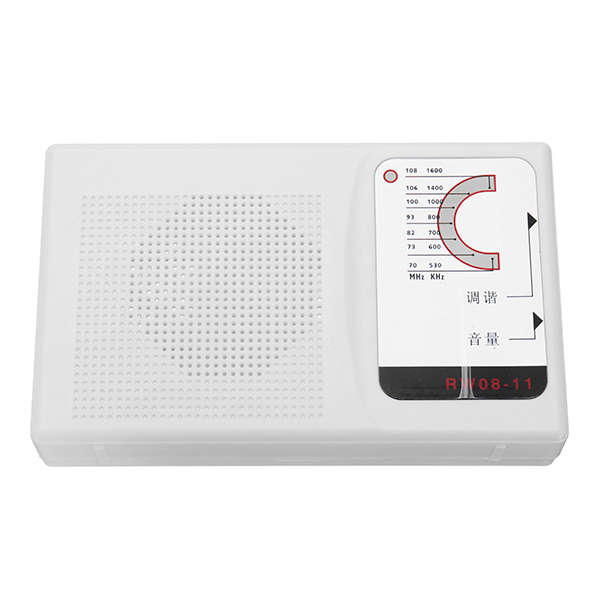

DIY FM AM Radio CXA1691 Students Soldering Practice Set Electronic Production Kit

Important Information

Certain products consists of different variations and options as indicated at the end of the product title. If you require more information on a product or have any pre-sale questions, please feel free to inquire.

Product images shown are for illustration purposes only and will only include the product(s) as per the description, title and option(s) as indicated.

Please confirm stock availability before purchasing.

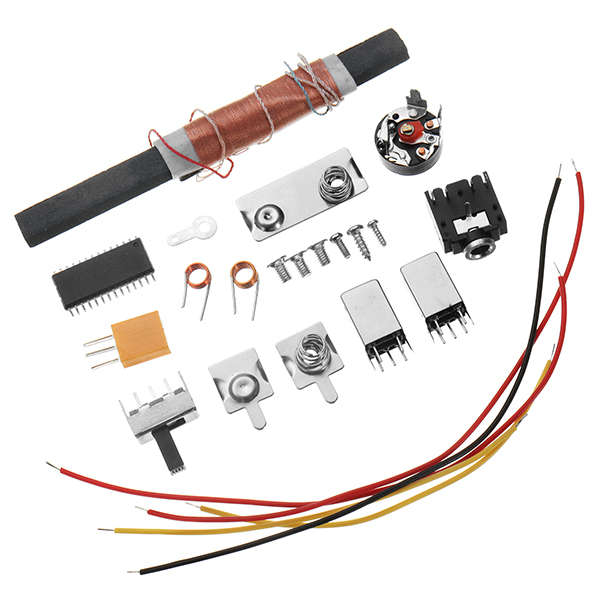

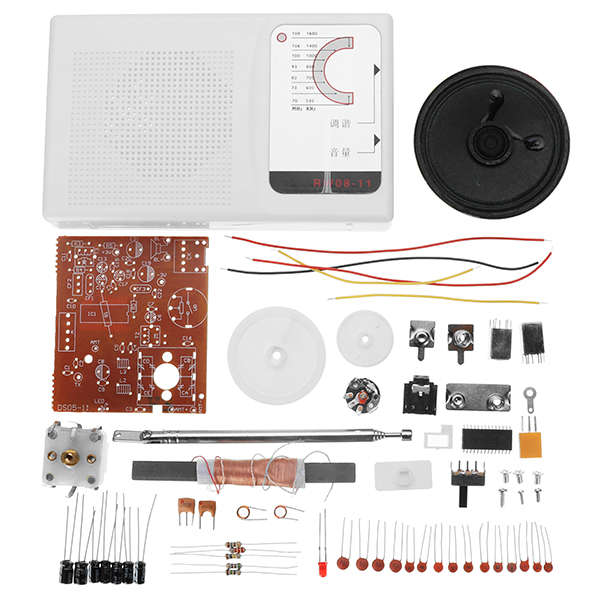

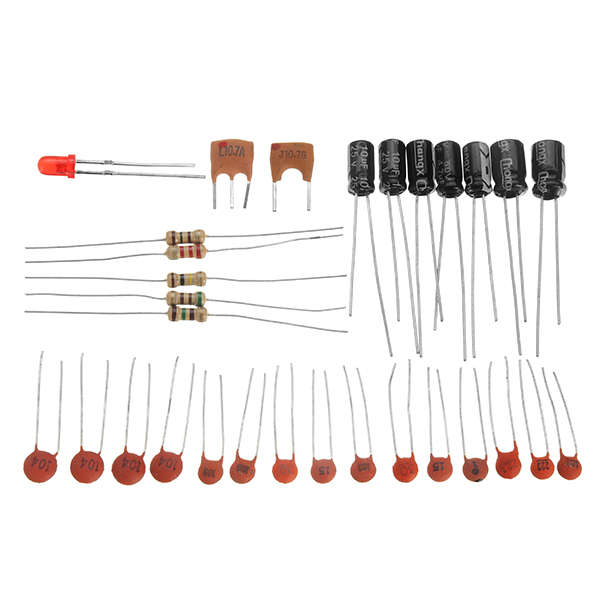

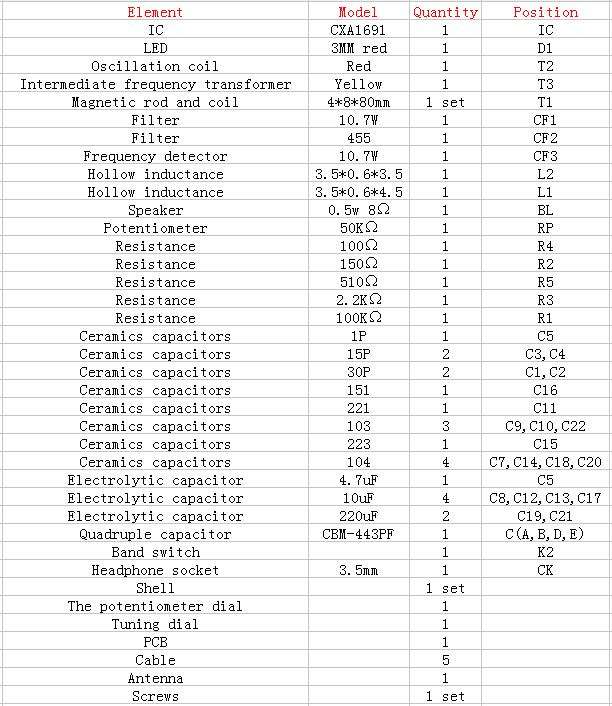

Note: Easy to install, not supply instructions, please solder the corresponding position according to the packing list.

Feature:

CXA1691 integrated module, FM / AM two band, is very portable.

This circuit uses CXA1691 integrated module as the radio core, comes with amplifier, clear sound, quiet processing, high sensitivity, stable quality, good selectivity, power consumption, power indicator, with ear plug output seat.

With 3W 8Ω large magnet speaker, loud sound. Suitable for beginner, intermediate electronic enthusiasts.

AM amplitude modulation part:

Frequency range: 535-1605KHz;

IF frequency: 465KHz

Sensitivity: ≤ 3mV / m (26dB S / N)

FM part:

Frequency range: 64-108MHz

IF frequency: 10.7MHz

Sensitivity: ≤ 30μV / m

Working voltage: 3V (2 AA batteries)

Quiescent current: no signal ≤ 20mA

Output power: ≥180mw (10% distortion)
