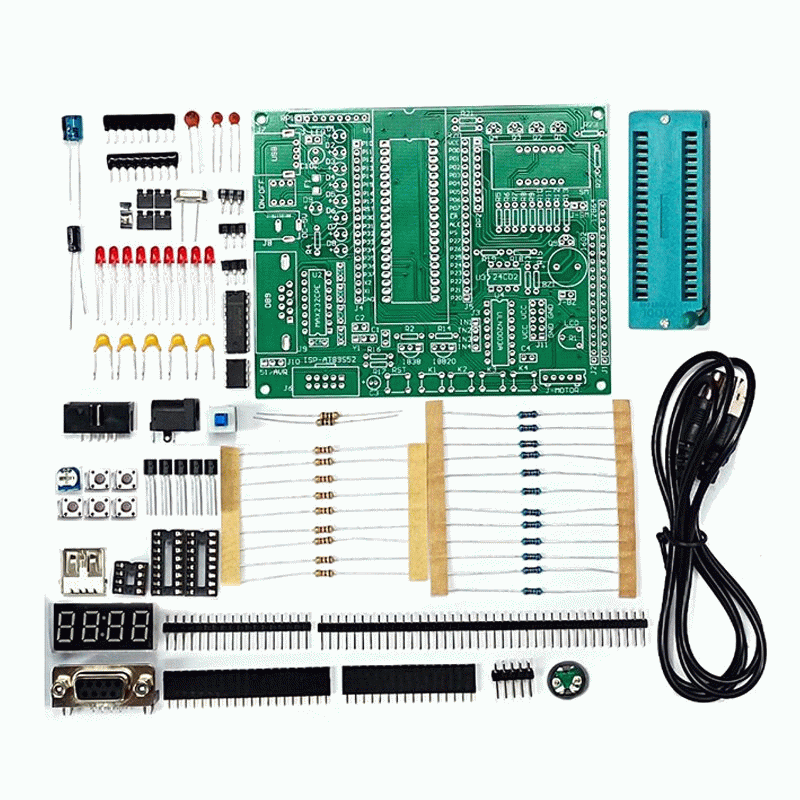

Note: This is a DIY kit, you need to assemble and solder.
>>>Manual: Click here to open<<<

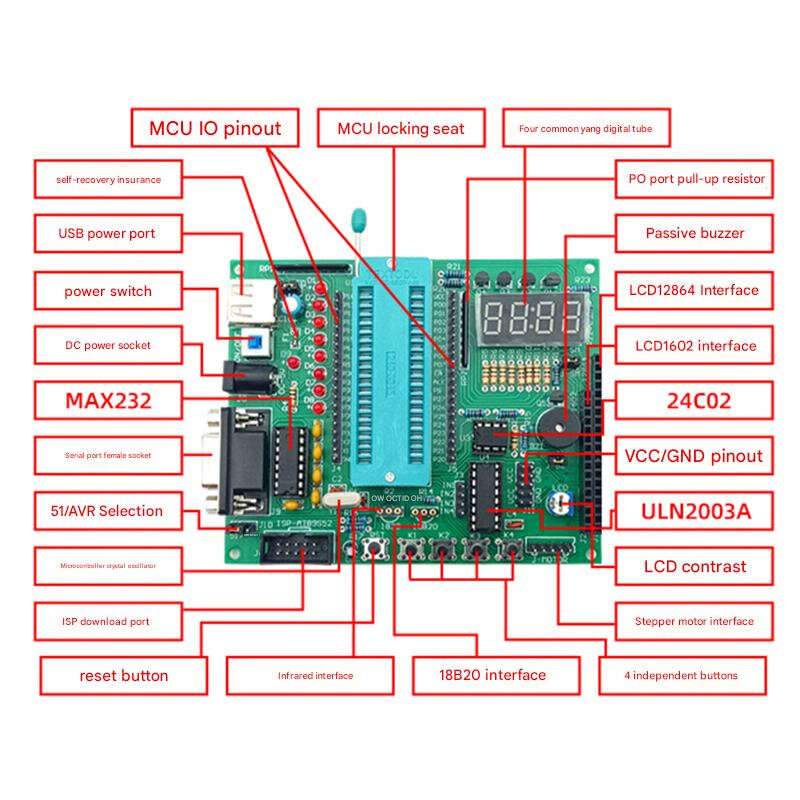

Specifications:
- Communication IC: MAX232
- USB to Serial Port for downloading and communication
- DC Port: 5.5*2.1mm, connects to a 5V power adapter
- Self-reset protection: for short circuit or microcontroller malfunction
- Components: LED flow lights, 4-digit common anode display, buzzer, stepper motor driver chip - ULN2003, memory chip - 24C02
- Sensors: 18B20 temperature sensor, infrared receiver interface
- Connectors: PO pull-down resistor, single-chip IO output pin, 5V/GND output pin, LCD1602 interface, LCD12864 interface, ISP download interface
- Three removable IC seats for easy replacement
Features:
1. Versatile Connectivity
Equipped with USB and DC power ports, the board offers fle
