DIY Mini Music Tesla Coil Kit DC 15-24V 2A ZVS Plasma Horn Speaker Single Tube

Note: This is a DIY kit, you need to assemble it. No install instruction supply.

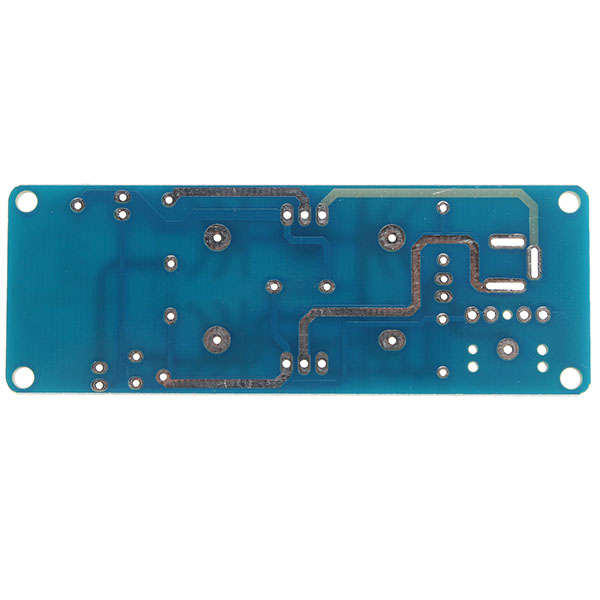

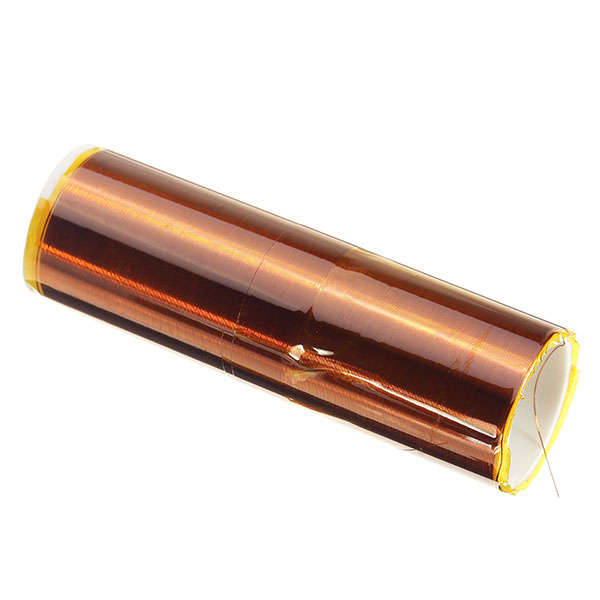

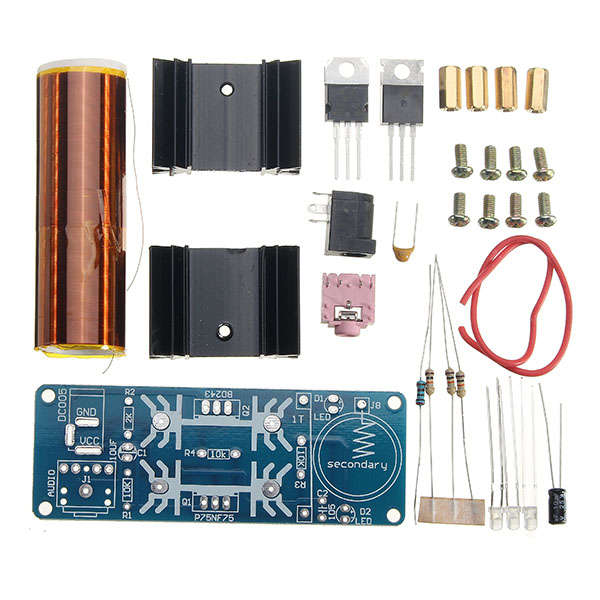

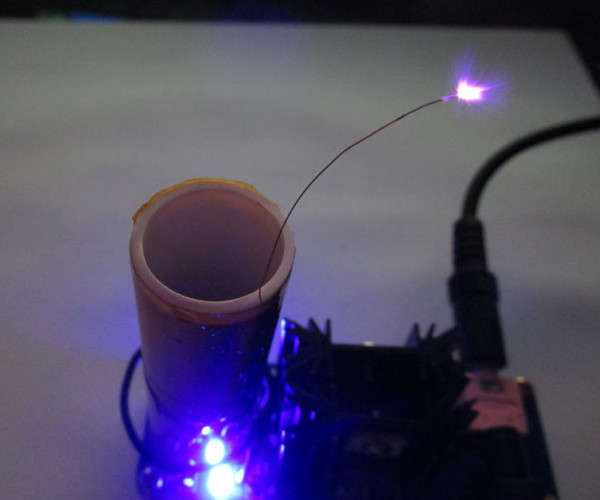

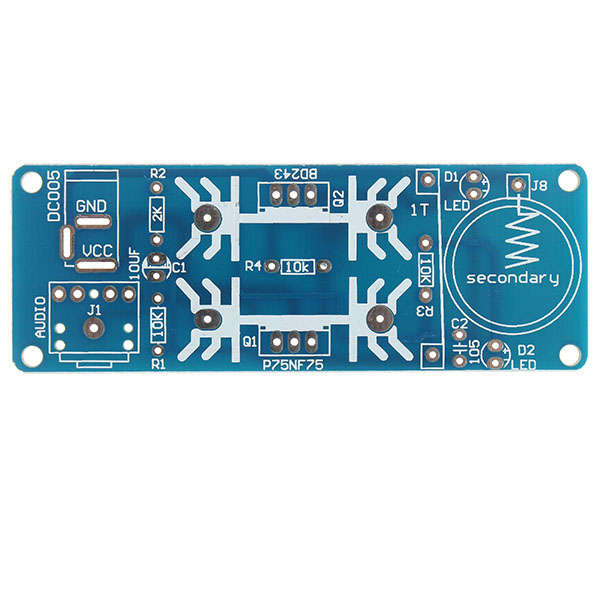

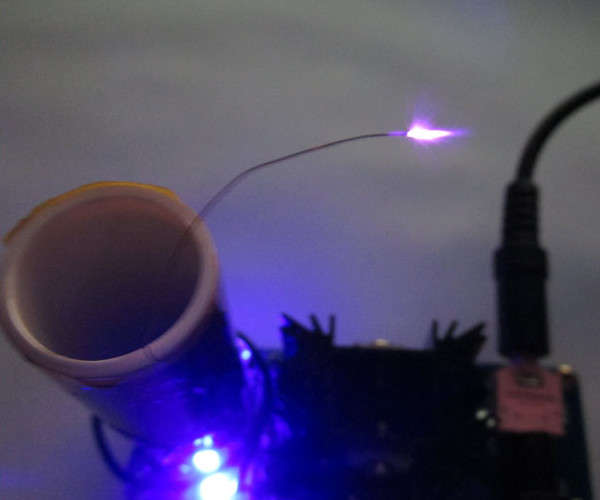

Feature: On the basis of ordinary tesla, added a music playback function: A new concept loudspeaker for generating acoustic vibrations of air generated by an arc excited air! Can play mobile / computer music, the sound quality is clear. Voltage input 15-24V DC, when arc length 24V, 5 - 10 mm meters is the most ideal, small size, can work uninterruptedly for a long time, but also can light up the LED from a distance, foam energy-saving lamp, flash tube, can play radio transmission, rotating arc etc.. Circuit parameters: Model: Mini Music Tesla Operating voltage: DC 15-24V, current 2A Power: about 15W Power supply interface: DC5.5 * 2.1 compatible 2.5 Audio interface: 3.5 jack, you can connect the phone, mp3, computer audio source. (the computer audio interface is 3.5, the audio line uses 3.5 to 3.5 audio lines, the mobile phone and the MP3 interface are different, please use the corresponding audio line to turn 3.5) Board size: 8.5cm x 3.1cm Package weight: about 56g Coil size: diameter 2.05cm, height 6.8cm Wire lap: 350 laps, coil diameter 0.15 enameled wire Package includes: 1 x Mini Music Tesla













, , , , ,
