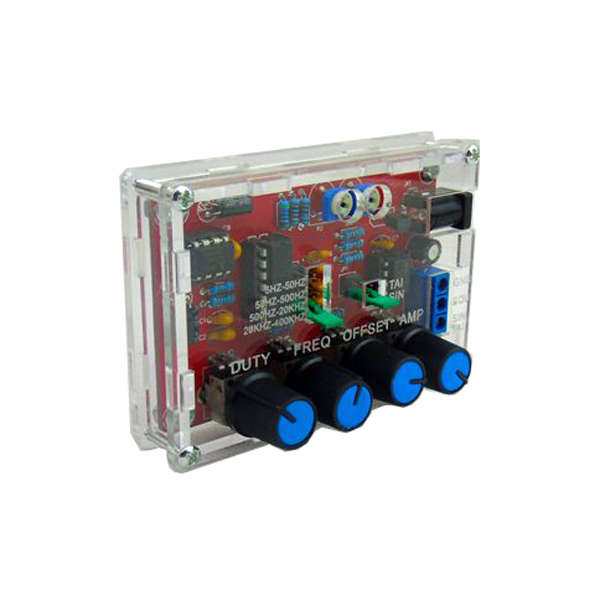

DIY Multifunctional Low Frequency Signal Generator Kit ICL8038 Signal Generator

New

20 available

R579.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4023

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654097060

Description:

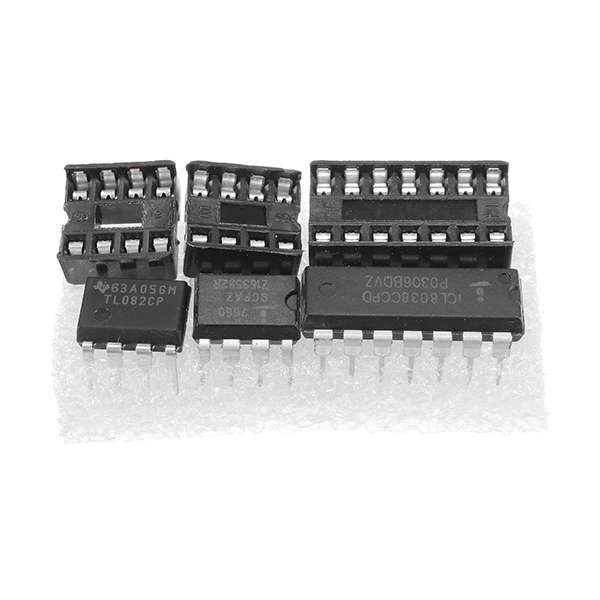

This signal generator composed of ICL8038 and high-speed op amp, having the following characteristics:
(1) Single power supply operation(built-in dedicated power management IC): only need +12 to +15V.
Circuit operational amplifier work in dual power state (dual power amplifier do not need to block
the capacitor to ensure the high and low frequency signal distortion)
(2) Can output triangular wave, rectangular wave and sine wave, forward and reverse sawtooth wave.
(3) Frequency adjustment range: 5HZ ~ 400kHz
(4) Duty cycle adjustment range: 2% to 95%
(5) Low distortion sine wave: 1%
(6) Low temperature drift: 50ppm / a
(7) Triangular wave output linearity: 0.1%
(8) DC bias adjustable: -7.5V-7.5V
(9) Output amplitude adjustable: 0.1V-11VPP (operating voltage 12V)

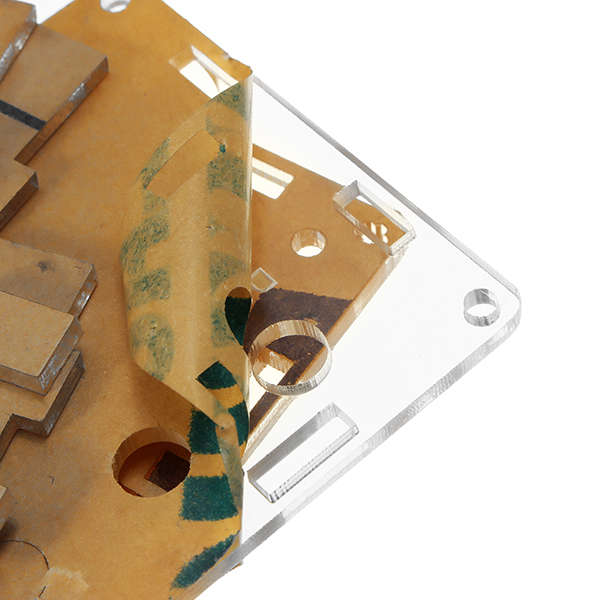

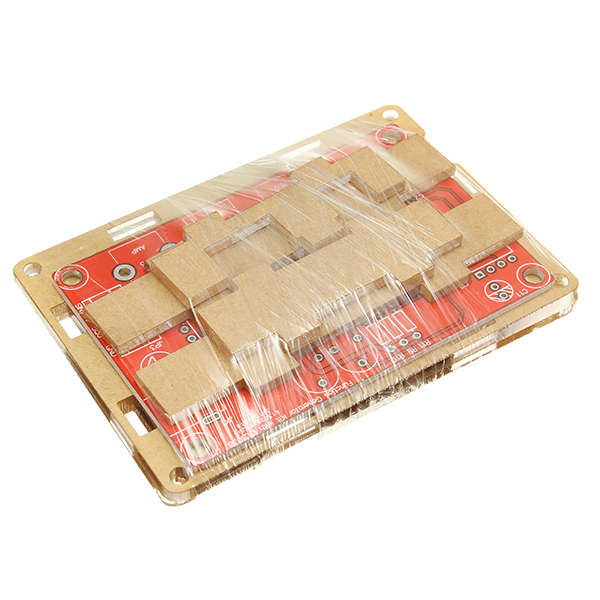

(10) With acrylic shell, very beautiful and practical
(11) Size: 88.2*61*18.5mm

Package included:

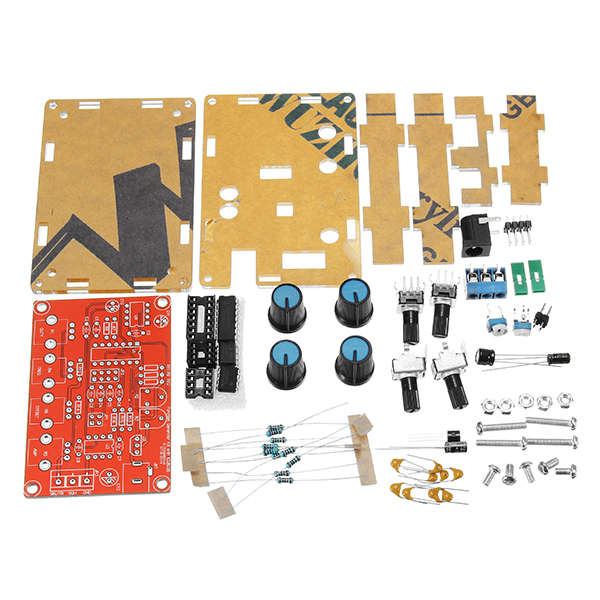

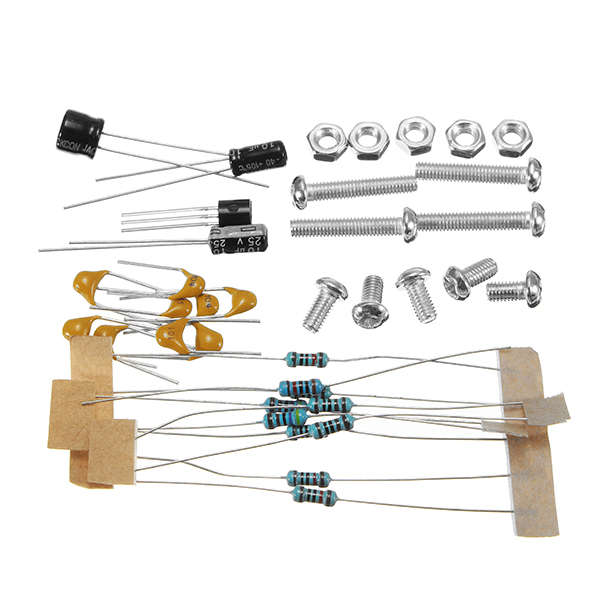

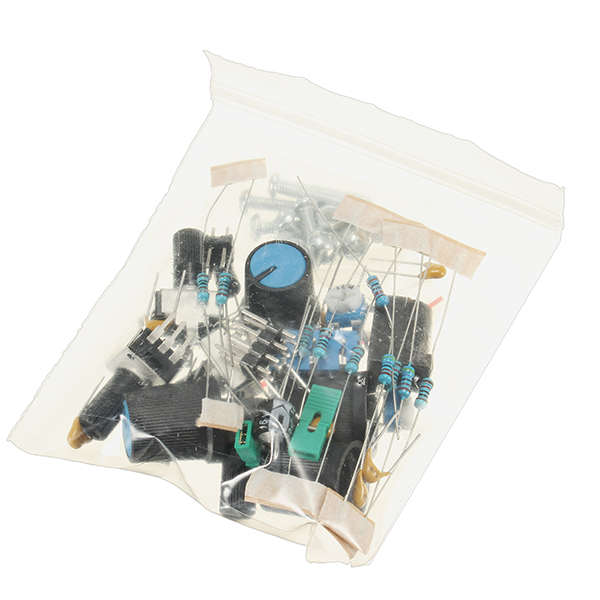

1 xDIY Multifunctional Low-frequency Signal Generator Kit
