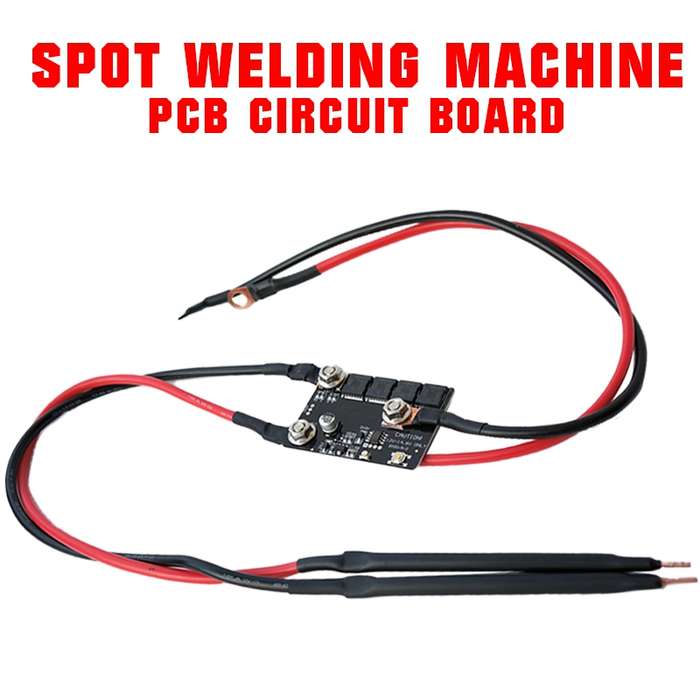

DIY PCB Circuit Board Spot Welder Portable 12V Battery Storage Spot Welding Machine with Spot Welder
New
R597.00
Closed
11 May 24 00:25
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Returns
Product information
Condition:
New
Location:
International
Bob Shop ID:
612455779
Features:

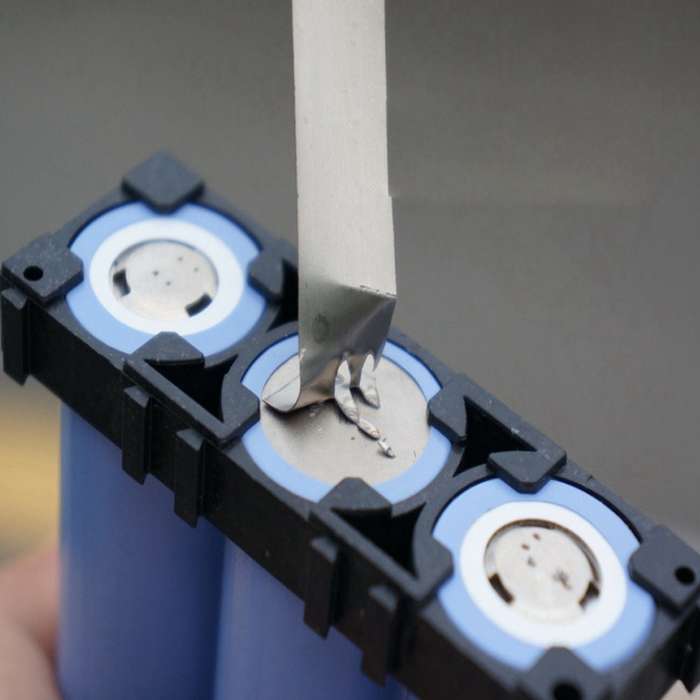

For welding 18650/26650/32650, etc. Lithium battery, advantages: portable, stable and reliable, and durable. Users need to supply 12V battery power, welding current is about 90A ~ 130A, for the common 18650/26650/32650 0.1mm ~ 0.15mm nickel plated welding. After several generations of product updates, it is now upgraded to automatically trigger the welding, liberating the buttons of the fingers.
Power Supply Requirements:
System voltage: 12V-14.6V (capacity X rate = must be greater than 150A)
Current requirements: 150A or more instantaneous output (such as car starter power supply, 3S RC high-power battery pack, 20A lead-acid battery with good performance above 20A)
Misunderstanding: Don`t think that you can use 3 series 18650 series to supply power. After all, the conventional 18650 only has 3-5C discharge rate, so each section can only provide 2.5A*3=7.5A load capacity, which is far from 150A unless 20 Parallel connection, 3 series and 60 sections of 18650 are possible, but it is obviously unrealistic.
Battery recommendation:
20-45ah Lead-acid battery with good performance and small internal resistance 3.5-5.5ah 45C 3S aeromodel lithium battery pack 30-35ah capacity 18650 battery pack

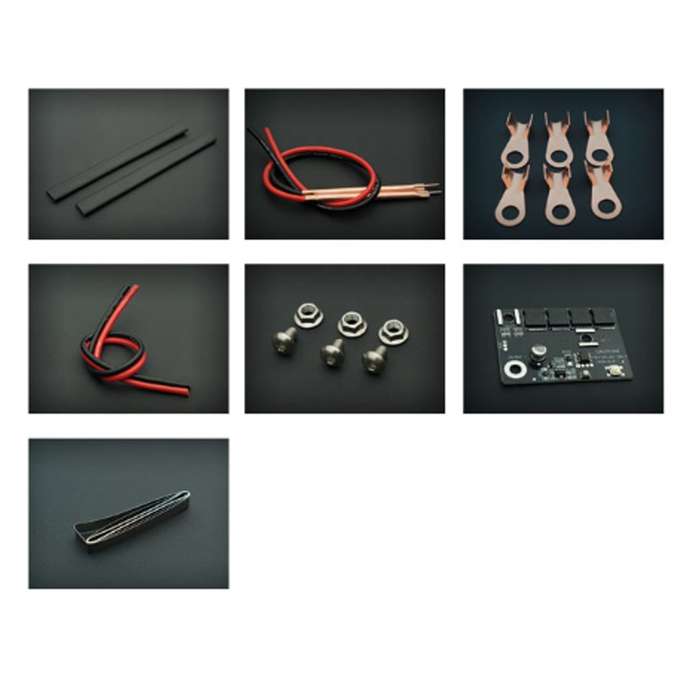

Package Included:
1 x Main board 1 x Buzzer 2 x 10AWG Input Wires 2 x Spot Soldering Pens
Detail Pictures:
For welding 18650/26650/32650, etc. Lithium battery, advantages: portable, stable and reliable, and durable. Users need to supply 12V battery power, welding current is about 90A ~ 130A, for the common 18650/26650/32650 0.1mm ~ 0.15mm nickel plated welding. After several generations of product updates, it is now upgraded to automatically trigger the welding, liberating the buttons of the fingers.
Power Supply Requirements:
System voltage: 12V-14.6V (capacity X rate = must be greater than 150A)
Current requirements: 150A or more instantaneous output (such as car starter power supply, 3S RC high-power battery pack, 20A lead-acid battery with good performance above 20A)
Misunderstanding: Don`t think that you can use 3 series 18650 series to supply power. After all, the conventional 18650 only has 3-5C discharge rate, so each section can only provide 2.5A*3=7.5A load capacity, which is far from 150A unless 20 Parallel connection, 3 series and 60 sections of 18650 are possible, but it is obviously unrealistic.
Battery recommendation:
20-45ah Lead-acid battery with good performance and small internal resistance 3.5-5.5ah 45C 3S aeromodel lithium battery pack 30-35ah capacity 18650 battery pack
Package Included:
1 x Main board 1 x Buzzer 2 x 10AWG Input Wires 2 x Spot Soldering Pens
Detail Pictures:
